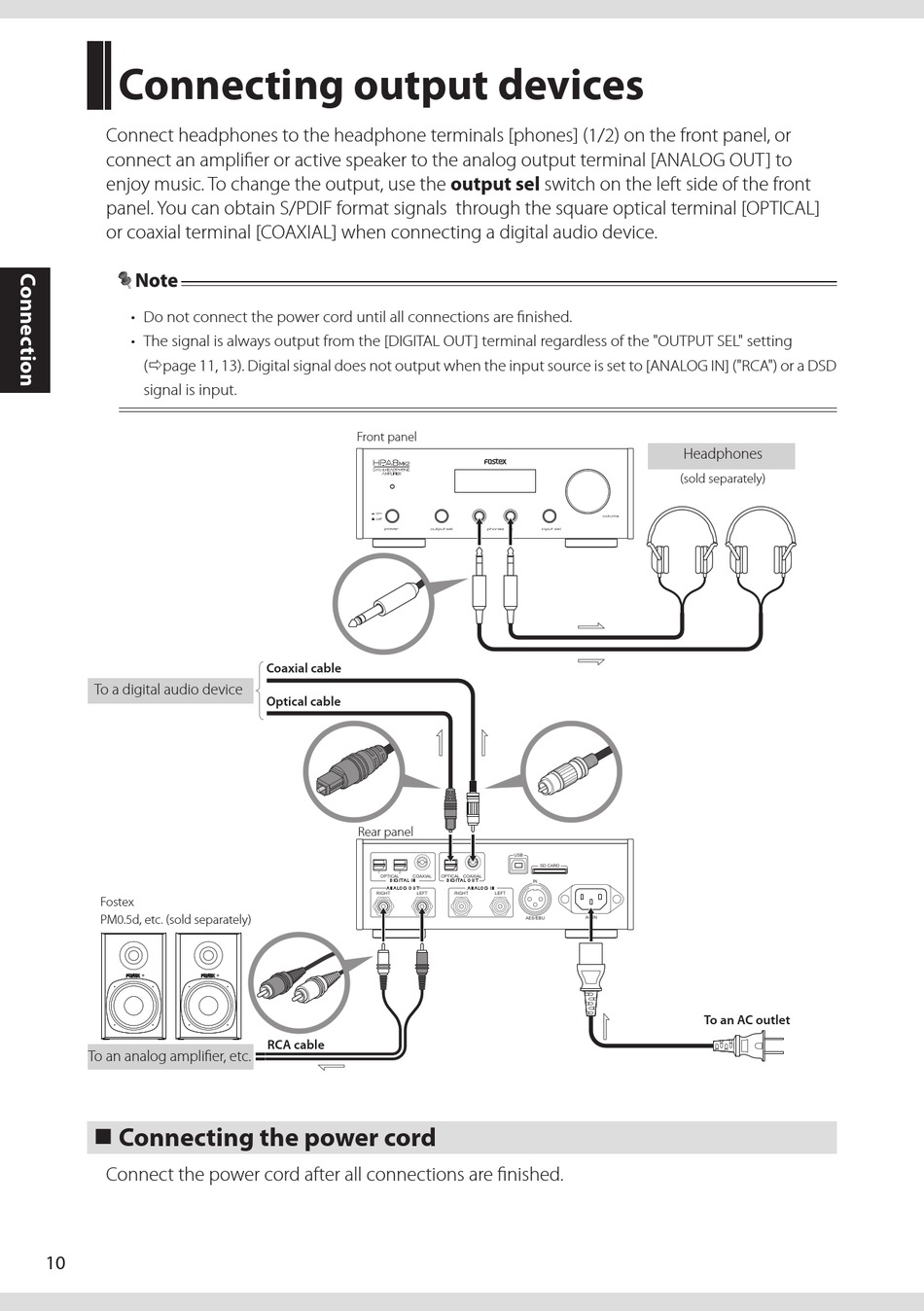

Connecting output devices

Connect headphones to the headphone terminals [phones] (1/2) on the front panel, or
connect an amplifier or active speaker to the analog output terminal [ANALOG OUT] to
enjoy music. To change the output, use the output sel switch on the left side of the front
panel. You can obtain S/PDIF format signals through the square optical terminal [OPTICAL]
or coaxial terminal [COAXIAL] when connecting a digital audio device.
• Do not connect the power cord until all connections are finished.
• The signal is always output from the [DIGITAL OUT] terminal regardless of the "OUTPUT SEL" setting
(page 11, 13). Digital signal does not output when the input source is set to [ANALOG IN] ("RCA") or a DSD
signal is input.
To a digital audio device
Fostex
PM0.5d, etc. (sold separately)
To an analog amplifier, etc.
„ Connecting the power cord
„
Connect the power cord after all connections are finished.
10
Front panel
Coaxial cable
Optical cable
Rear panel
1 2
OPTICAL COAXIAL
DIGITAL IN
ANALOG OUT
RIGHT LEFT
RCA cable
1 2
USB
SD CARD
OPTICAL COAXIAL
DIGITAL OUT
IN
ANALOG IN
RIGHT LEFT
AC IN
AES/EBU
Headphones
(sold separately)
To an AC outlet
