- Page 1 PR3041 Kayak Stand Fitting Instructions for Basic Carrier Revision No: 3C...
-
Page 2: First Time Installation
Kayak Stand PR3041 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. For type A and B crossbars only. - Page 3 Kayak Stand PR3041 For type B, unfasten security screw with an Hex Key and lift the accessory tab up. Push down rubber infill. Slide square nut along channel. Position where you want the accessory to...
- Page 4 Kayak Stand PR3041 Repeat for all four positions. Position kayak stand over square nuts. Attach kayak stand to square nuts using capscrews. Tighten capscrews using hex key. NOTE: Use shorter capscrews. Repeat for both holders. For type C crossbars only.
- Page 5 Kayak Stand PR3041 Secure evenly with knobs. Repeat for both holders. For type D and Tradesman crossbars only. Place spring nut into crossbar channel. Position where you want the accessory to Push down and twist spring nut to lock into...
- Page 6 Kayak Stand PR3041 Repeat for all four positions. Position kayak stand over square nuts. Attach kayak stand to square nuts using capscrews. Tighten capscrews using hex key. NOTE: Use longer capscrews. Repeat for both holders. All Crossbars: Place sleeve over stand as shown.

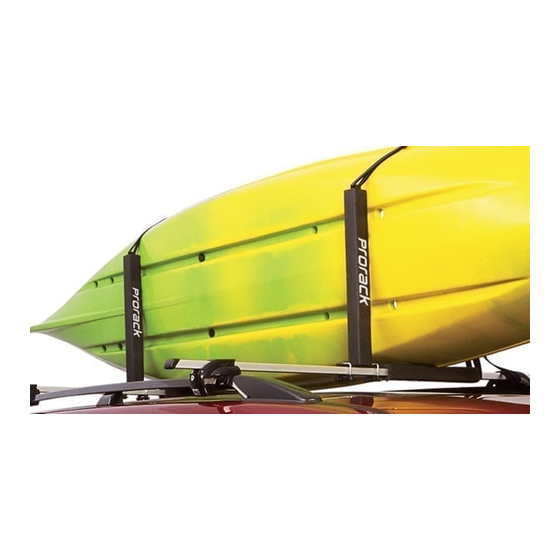

- Page 7 Kayak Stand PR3041 Thread tiedown through hoop at top of kayak stand. Place hull of kayak on bars, resting against stand upright. Place both ends of the camlock strap over the front of the kayak. Put end of strap under crossbar and back up through camlock buckle.
- Page 8 Kayak Stand PR3041 Long loads should be secured with non- elastic straps to the front and rear of the vehicle. A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance.
-
Page 9: Maintenance
Kayak Stand PR3041 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 10 Kayak Stand PR3041 Remove the products from the vehicle when not in use. Make sure all loose parts are stored safely. Yakima Australia Pty Ltd 17 Hinkler Court Brendale QLD 4500 AUSTRALIA www.whispbar.com www.whispbar.com.au www.whispbar.co.nz www.whispbar.co.uk www.whispbar.co.za www.whispbar.eu www.whispbar.ca...
- Page 11 Kayak Stand PR3041...
- Page 12 Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au...
- Page 13 Kayak Stand PR3041 Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty. Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.
