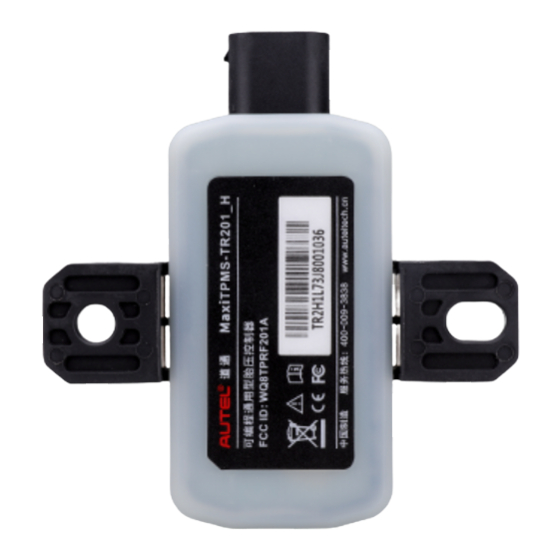

Autel TR201 Quick Manual

Quick Guide:

INSTALLATION GUIDE:

! IMPORTANT: Before operating or maintaining this unit, please read

these instructions carefully and pay extra attention to the safety

warnings and precautions. Use this unit correctly and with care. Failure

to do so may cause damage and/or personal injury and will void the

Warranty:

AUTEL guarantees that the TR201 is free from material and

manufacturing defects for a period of 24 months or for 24,000 miles,

whichever comes first. AUTEL will at its discretion replace any

merchandise during the warranty period. The warranty shall be void if

any of the following occurs:

1. . Improper installation of the product;

2. Improper use;

3. Product damage due to collision, man-made damage or natural

disasters;

4. Exceed the product-specific use restrictions.

CAUTION:

1. The Autel TPMS ECU needs to be used with the Autel standard cable.

Otherwise, it may cause a short circuit on the vehicle.

2. When using the original TPMS ECU, avoid using the Autel standard
