COMPLETE TPMS SOLUTION IN 4 SIMPLE STEPS
TPMS WORK HAS NEVER BEEN SO EASY.

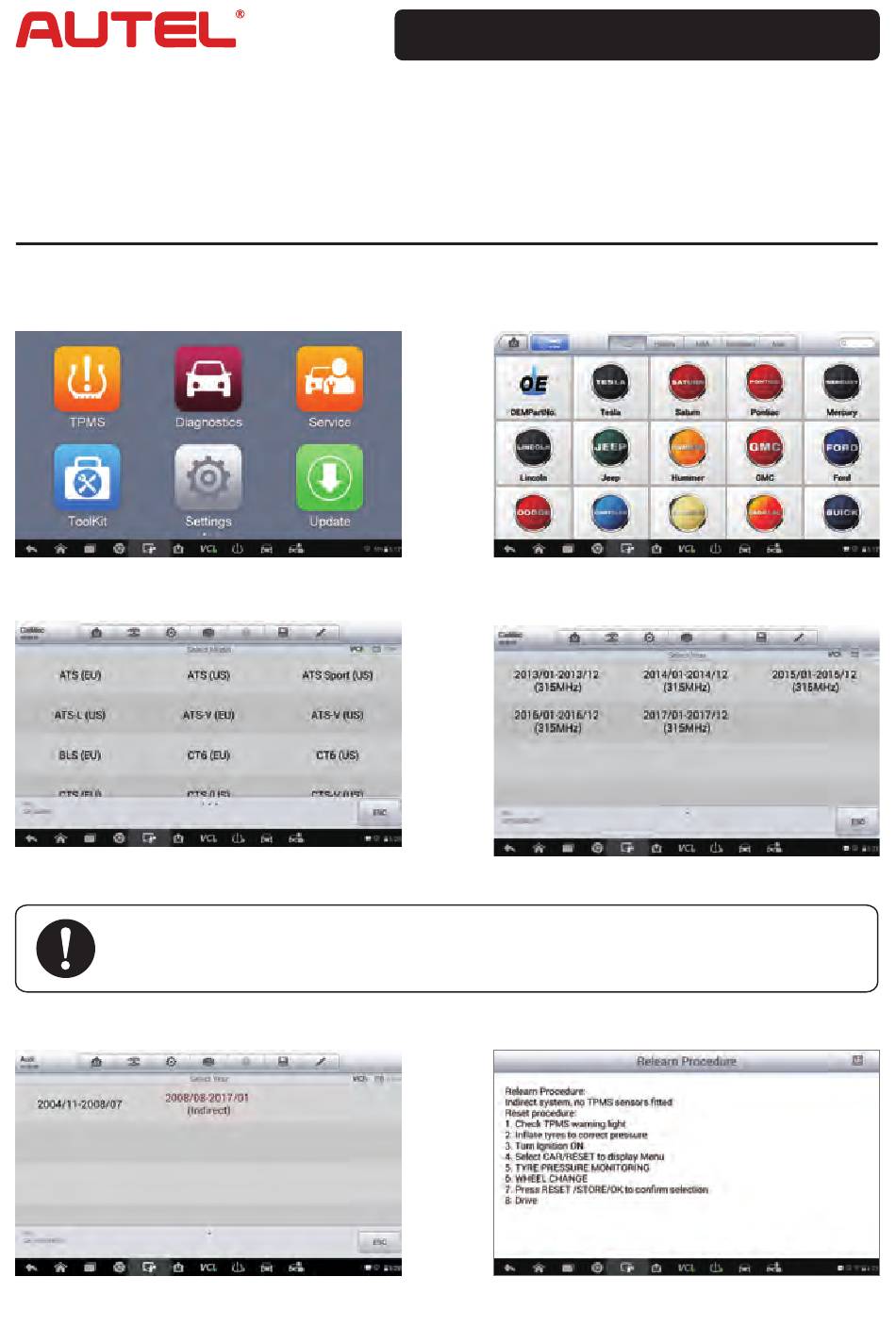

First of all, choose the vehicle.
Main Menu
Vehicle Mode
Note: For vehicles with Indirect TPMS, on-screen relearn procedure helps you to
reset TPMS system.
Indirect TPMS
TPMS QUICK GUIDE
Relearn Procedure
®
MaxiTPMS
TS608
Vehicle Make
Vehicle Year
