Autel MaxiVCI V100 User Manual

Autel MaxiVCI V100 User Manual

Wireless diagnostic interface

Advertisement

Table of Contents

General Notice ........................................................... 1
Introduction .............................................................. 2
Functional Description .............................................. 4
Product Troubleshooting .......................................... 8
Driver Setup .............................................................. 9
Firmware Update ..................................................... 12
Compliance Information .......................................... 14
Warranty And Service .............................................. 16

Advertisement

loading
Need help?

Need help?

Do you have a question about the MaxiVCI V100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autel MaxiVCI V100

  • Page 1: Table Of Contents

    Table of Contents General Notice ............1 Introduction .............. 2 Functional Description ..........4 Product Troubleshooting .......... 8 Driver Setup .............. 9 Firmware Update ............. 12 Compliance Information .......... 14 Warranty And Service ..........16...
  • Page 2: General Notice

    While Autel’s testing and the experiences of the users have shown the unit to be safe and reliable, there is an inherent risk in using any product that may potentially affect the operation or drive-ability of your vehicle.
  • Page 3: Introduction

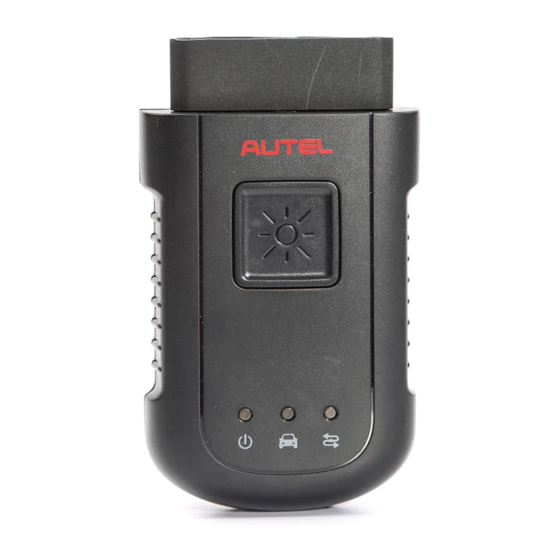

    Introduction The wireless diagnostic interface MaxiVCI V100 is a small interface box used to connect to a vehicle’s diagnostic connector (DLC) and connect wirelessly with the MaxiSys Display Tablet, as well as standalone PC, as a vehicle communication interface (VCI) for vehicle data transmission. Thanks to the wireless BT technology, with which you are allowed to work freely around the vehicle.
  • Page 4 Wireless Communication The MaxiVCI V100 supports BT communication. It can transmit vehicle data to the MaxiSys Display Tablet without a physical connection. The working range of the transmitter through BT communication is about 164 feet (about 50 m). A signal lost due to moving out of range automatically restores itself when the display unit is brought closer to the MaxiVCI V100 unit.
  • Page 5: Functional Description

    Functional Description The MaxiVCI V100 device package includes the unit, user manual, and a CD with driver program and update agent. Lighting Push Button Power LED Vehicle LED Connection LED Vehicle Data Connector (16-Pin) USB Port Lighting Push Button Press the lighting push button to turn on the white LED in the vehicle...
  • Page 6 Status LEDs There are 3 status LEDs on the front panel of the MaxiVCI V100, which indicates its working status as well as the hardware conditions, and are very useful for troubleshooting the device’s communication or connection to the vehicle, display tablet and/or the PC. See...
  • Page 7 White LED Capabilities When used in conjunction with the display table or the OEM softwares from the PC, the MaxiVCI V100 is able to perform the following functions: Auto diagnostics to read and clear the error memory, to display system ...
  • Page 8 Activation, adjustments and configurations that are essential for ensuring  a complete repair; Resetting the service lights or the airbag systems;  Configuration of the ECUs, keys and remote controls, etc. ...
  • Page 9: Product Troubleshooting

    This part describes problems that you may encounter while using the MaxiVCI V100. Vehicle Linking Error A communication error occurs if the MaxiVCI V100 fails to communicate with the vehicle’s control module when performing diagnostic procedures. You need to do the following check-ups: ...
  • Page 10: Driver Setup

    The program package requires Windows XP, Windows 7 (32 or 64 bit), Windows 8 (32 or 64 bit), or Windows 10 (32 or 64 bit). IMPORTANT: Do not plug the MaxiVCI V100 onto the PC until you have installed the driver program.
  • Page 11 Click on “Install” and the driver program will be installed onto your PC.
  • Page 12 NOTE: During this part of the process a MS-DOS style window may pop up and may remain on your screen for a short while, which is perfectly normal. Do not attempt to close the MS-DOS style window manually as this will prevent the device driver being installed successfully. It will close automatically when the device driver installation is complete.
  • Page 13: Firmware Update

    This function allows you to update the driver software for the device through the PC. Make sure the PC is connected to the Internet before using this function. Connect the MaxiVCI V100 to the PC via the USB cable. Verify the Power and Connection LEDs on the front panel are illuminated green.
  • Page 14 The update agent will automatically check for the available update online. Press the “Next” button to install the newest firmware. Press the “Cancel” button to exit.
  • Page 15: Compliance Information

    Compliance Information WQ8017VCIV100 FCC COMPLIANCE FCC ID: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 outlet on a circuit different from that to which the receiver is connected. ⅳ. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 17: Warranty And Service

    Warranty and Service Limited One Year Warranty Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of one (1) year from the date of the original purchase, subject to the following terms and conditions:...
