Modem and Networking

Compaq Notebook Series
Document Part Number: 267639-001
April 2002
This guide describes the modem and networking features on the
notebook and explains how to connect a modem cable and a
network cable. It also provides instructions for using the modem
when travelling internationally.

Advertisement

Table of Contents
loading

Summary of Contents for HP Compaq NC4000

  • Page 1: Modem And Networking

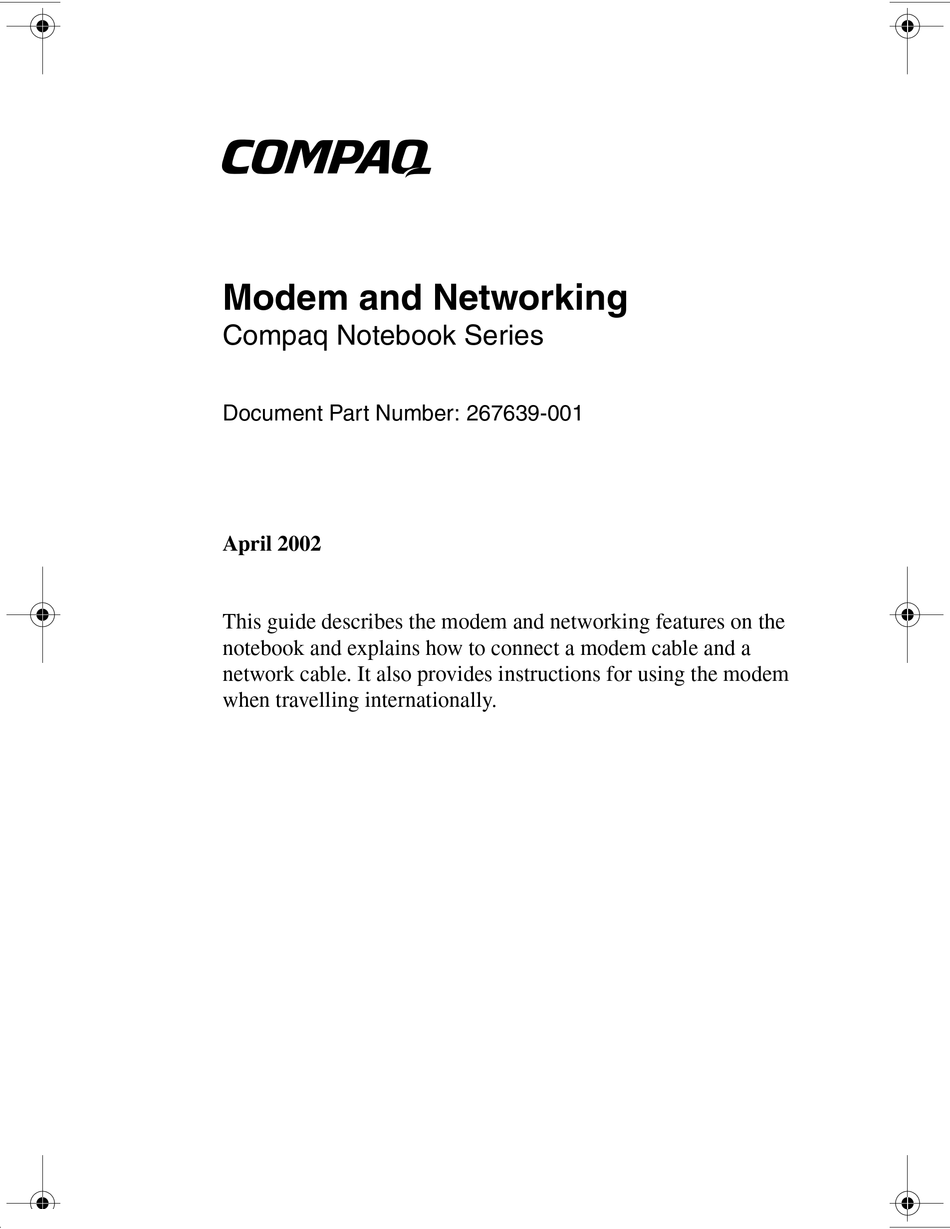

    Modem and Networking Compaq Notebook Series Document Part Number: 267639-001 April 2002 This guide describes the modem and networking features on the notebook and explains how to connect a modem cable and a network cable. It also provides instructions for using the modem when travelling internationally.
  • Page 2 © 2002 Compaq Information Technologies Group, L.P. Compaq, the Compaq logo, Evo, and Presario are trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries. Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.
  • Page 3: Table Of Contents

    1 Using an Internal Modem Connecting the Modem Cable ..... 1–2 Using the RJ-11 Cable......1–2 Using a Country-Specific Modem Cable Adapter.
  • Page 4: Using An Internal Modem

    Using an Internal Modem Your notebook has an internal modem, an RJ-11 telephone jack, preinstalled modem drivers, and a modem cable. The internal modem: ■ Supports applications running under Microsoft Windows 98, Windows 2000 Professional, Windows XP Home, and Windows XP Professional operating systems. ■...
  • Page 5: Connecting The Modem Cable

    Using an Internal Modem Connecting the Modem Cable Using the RJ-11 Cable The modem cable may have noise suppression circuity that prevents interference with TV and radio reception. The modem cable must be connected to an analog telephone line. Ä CAUTION: Jacks for digital PBX systems may resemble analog telephone jacks, but are not compatible with the modem.
  • Page 6 Using an Internal Modem 3. Plug the modem cable into the RJ-11 telephone jack 3 . Connecting the modem using an RJ-11 jack Å WARNING: To reduce the risk of electrical shock, always ensure that the modem line is disconnected from the telephone network when opening the notebook’s enclosure.
  • Page 7: Using A Country-Specific Modem Cable Adapter

    Using an Internal Modem Using a Country-Specific Modem Cable Adapter Software for the internal modem supports multiple countries, but telephone jacks vary by country. To use the modem and the RJ-11 cable outside the country in which you purchased the notebook, you must obtain a country-specific modem adapter and define your location in Dialing Properties.
  • Page 8: Viewing The Current Country Selection

    Viewing the Current Country Selection To see the current country setting for your modem, follow these steps: Windows 98: Select Start > Settings > Control Panel > Modems > Dialing Properties. The current country selection appears in the I Am In box. Windows 2000 Professional: 1.
  • Page 9: Adding New Locations When Travelling

    Using an Internal Modem Adding New Locations When Travelling The internal modem is configured to meet only the operating standards in the country where you purchased the notebook. When travelling internationally, you can add new location configurations that comply with standards in other countries. Ä...
  • Page 10: Solving Travel Connection Problems

    3. Assign the New Location Name (home, work, etc.). 4. Select the Country/Region from the drop-down list. 5. Click OK > OK. Windows XP Home and XP Professional: 1. Select Start > Control Panel. 2. Double-click the Network and Internet Connections icon. 3.
  • Page 11 Using an Internal Modem ■ Check for pulse or tone dialing Dial a few digits on the telephone and listen for clicks (pulses) or tones. Then select: Windows 98: 1. Select Start > Settings > Control Panel. 2. Double-click the Modems icon > General tab. 3.
  • Page 12 ■ Check the telephone number you are dialing and the response of the remote modem Dial the telephone number on the telephone, wait for the remote modem to answer, then hang up. ■ Set the modem to ignore dial tones If the modem receives a dial tone it does not recognize, it will not dial and will display a No Dial Tone error message.
  • Page 13 Using an Internal Modem 5. Clear the Wait for Dial Tone Before Dialing check box. 6. If you continue to receive the No Dial Tone error message after clearing the check box: a. Select Start > Settings > Control Panel > Phone and b.
  • Page 14 Windows XP Home and XP Professional: 1. Select Start > Control Panel > Network and Internet Connections icon. 2. Select Phone and Modem Properties (menu in the left column) > Modem Tab. 3. Select your modem > Properties > Modem tab. 4.
  • Page 15: Accessing Preinstalled Communication Software

    Using an Internal Modem Accessing Preinstalled Communication Software To use preinstalled modem software for terminal emulation and data transfer, follow these steps: Windows 98: Select Start > Programs > Accessories > HyperTerminal. Windows 2000 Professional: 1. Start > Programs > Accessories > Communications. 2.
  • Page 16: Connecting To A Network

    Your notebook has an RJ-45 network jack, an internal NIC (network interface card), preinstalled network drivers, and may have a network cable. ✎ Networking requiring connection to domains is not supported in Windows XP Home Edition. Your notebook supports: ■ Network speeds up to 10 Mbps when connected to a 10BaseT network and 100 Mbps when connected to a 100BaseTX network.
  • Page 17: Connecting A Network Cable

    Connecting to a Network Connecting a Network Cable A network cable has an 8-pin RJ-45 network connector at each end and may contain noise suppression circuitry, which prevents interference with TV and radio reception. 1. Orient the end of a network cable with noise suppression circuitry 1 toward the RJ-45 network jack on the notebook.
