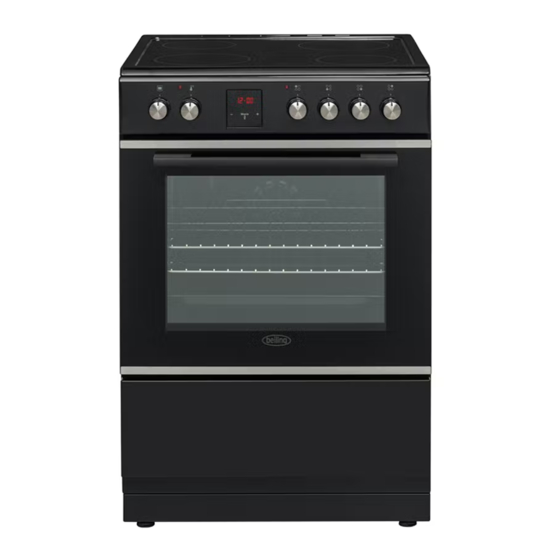

- Page 1 BFS60SCCER Freestanding Single Door Oven with Ceramic Cooktop INSTRUCTION MANUAL PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT. www.belling.com.au www.belling.co.nz...
- Page 2 Dear Customer, Congratulations on the purchase of your new product from Belling. We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance.
-
Page 3: Table Of Contents
CONTENTS 1.SAFETY INSTRUCTIONS ....................4 1.1 General Safety Warnings ....................4 1.2 Installation Warnings ......................6 1.3 During Use........................7 1.4 During Cleaning and Maintenance .................9 2.INSTALLATION AND PREPARATION FOR USE ............10 2.1 Instructions for the Installer ..................10 2.2 Electrical Connection and Safety.................. 11 2.3 Safety Chain .........................12 2.4 Adjusting the feet ......................12 2.5 Anti-tilt bracket.......................12... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS • Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary. 1.1 General Safety Warnings • This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of... - Page 5 • For models which incorporate a hob lid, clean any spillages off the lid before use and allow the cooker to cool before closing the lid. • Do not operate the appliance with an external timer or separate remote-control system. WARNING: To prevent the appliance tipping, the stabilising brackets must be...
-
Page 6: Installation Warnings
technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents. • Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. -
Page 7: During Use
• The appliance must be installed by a licensed electrician. The manufacturer is not responsible for any damage that might be caused by incorrect placement and installation by unauthorised people. • When the appliance is unpacked, make sure that it has not been damaged during transportation. - Page 8 Do not leave the cooker unattended when cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.
-
Page 9: During Cleaning And Maintenance
1.4 During Cleaning and Maintenance • Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations. • Do not remove the control knobs to clean the control panel. • To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents when needed. -
Page 10: Installation And Preparation For Use
2. INSTALLATION AND Installation of the Cooker PREPARATION FOR USE • If the kitchen furniture is higher than the cooktop, the kitchen furniture must be WARNING : This appliance must be at least 10 cm away from the sides of installed by a qualified electrician appliance for air circulation. -
Page 11: Electrical Connection And Safety
2.2 Electrical Connection and Safety • If the appliance is not connected to the mains with a plug, a all-pole WARNING: The electrical connection disconnector (with at least 3 mm contact of this appliance should be carried out spacing) must be used in order to meet by an authorised service person or the safety regulations. -
Page 12: Safety Chain
2.5 Anti-tilt bracket 2.3 Safety Chain The appliance can be prevented from falling over by securing the supplied safety chain to the rear of the cooker. Screw (x1) Use a wall plug to fasten the hook (1) to the Anti-tilting kitchen wall and connect the safety chain Bracket (3) to the hook with the help of the locking... -
Page 13: Product Features
3. PRODUCT FEATURES Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components 1. Cooktop 2. Control Panel 3. Oven Door Handle 4. Oven Door 5. Adjustable Feet Control Panel 6. -
Page 14: Use Of Product
4. USE OF PRODUCT decreased or until one of the cooking zones is activated. 4.1 Hob controls Hints and Tips Ceramic Heater Important: When ceramic heaters are The ceramic heater is controlled by a 6 operated in higher heat settings, the position knob. -
Page 15: Oven Controls
well away from the hob during operation static cooking function emits heat, ensuring and until it has fully cooled after even cooking of food. This is ideal for operation. making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for •... -
Page 16: Use Of The Digital Touch Timer
Warning: When grilling, the oven door must be closed and the oven 2. Adjust the time temperature should be adjusted to 190°C. while the dot is flashing using the “+” 4.3 Use of the Digital Touch Timer and “-” keys. 3. - Page 17 flash on the display. Press any key to stop 2. Press “MODE” until the audible warning and the symbol will you see “end” and disappear. symbol on the display screen. “A” and the current time of day will Semi-automatic time adjustment flash.
-
Page 18: Accessories
are three different types of signal sounds. Select the desired sound and do not press 4. The current time any other buttons. After a short time, the will reappear on the selected sound will be saved. screen, the symbols “A”, will 4.4 Accessories remain illuminated. -
Page 19: Cleaning And Maintenance
cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles, as they may scratch the glass, enamelled and/or painted parts of your appliance. • Should any liquids overflow, clean them immediately to avoid parts becoming damaged. - Page 20 Manual cleaning of the catalytic liners is not erode the surface. recommended. Damage will occur if a soap- 3. Using the wrong cleaning materials. impregnated steel wool pad or any other Cleaning the Glass Parts abrasives are used. In addition, we do not •...
- Page 21 1. Push the glass towards and under the by pulling it towards you. location bracket (y), in the direction of B. 3. Place the glass under the location bracket (x) in the direction of C. If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer.
-
Page 22: Maintenance
Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up. 5.2 Maintenance WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified technician only. -
Page 23: Troubleshooting & Transport
6. TROUBLESHOOTING & TRANSPORT 6.1 Troubleshooting If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Check the household fuse for the appliance. The hob or cooking zones There is no power supply. - Page 24 WARRANTY The warranty period is 3 years from the date of purchase in Australia and 2 years from the date of purchase in New Zealand. For service advice, please contact the Customer Care Centre on 1300 556 816 (AU) / +64 9 274 8265 (NZ).
