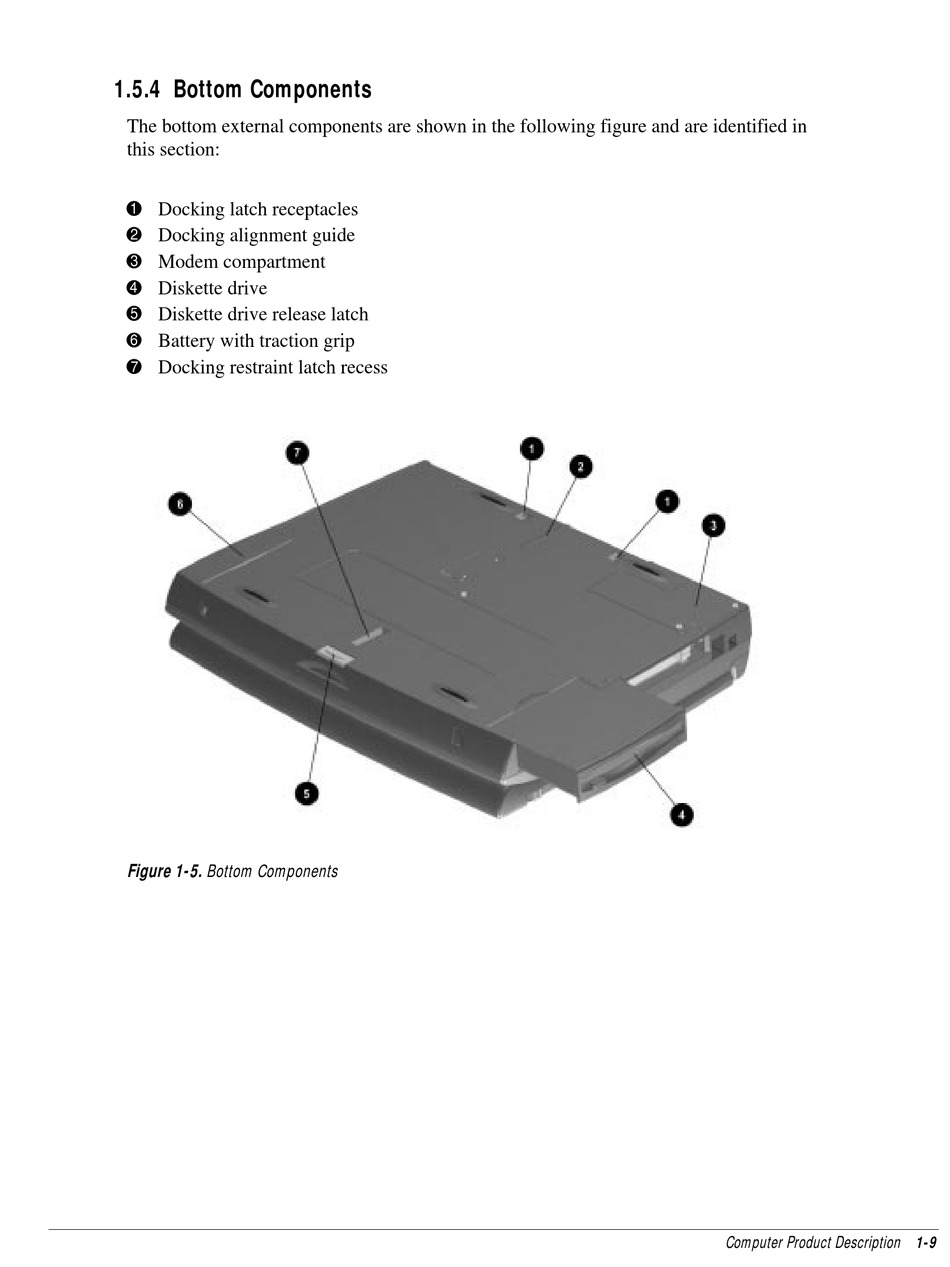

1.5.4 Bottom Components
The bottom external components are shown in the following figure and are identified in
this section:
1 Docking latch receptacles
2 Docking alignment guide
3 Modem compartment
4 Diskette drive
5 Diskette drive release latch
6 Battery with traction grip
7 Docking restraint latch recess
Figure 1-5. Bottom Components
Computer Product Description 1-9
