1.5 External Computer Components
The external computer components are illustrated and described in this section.
1.5.1 Front and Left Side Components
The front and left side external components are shown in the following figure and
identified in this section:
1 Display latches
2 Power connector
3 RJ-11 connector (on some models)
4
PC Card eject levers
5 PC Card slots
6 DualBay compartment
7 Power/Suspend light
8 Battery charge light

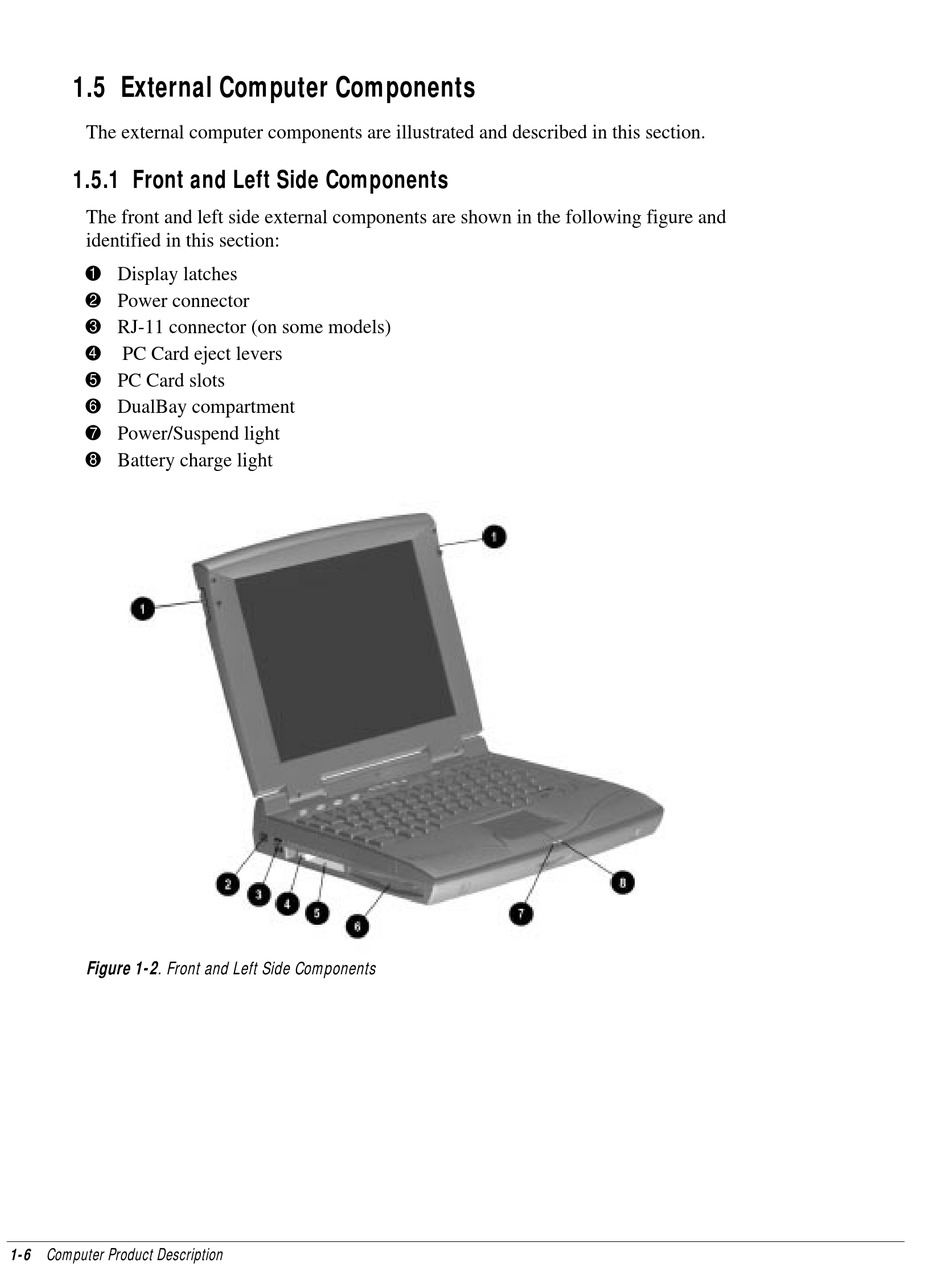

Figure 1-2. Front and Left Side Components
1-6 Computer Product Description
