Battery Packs

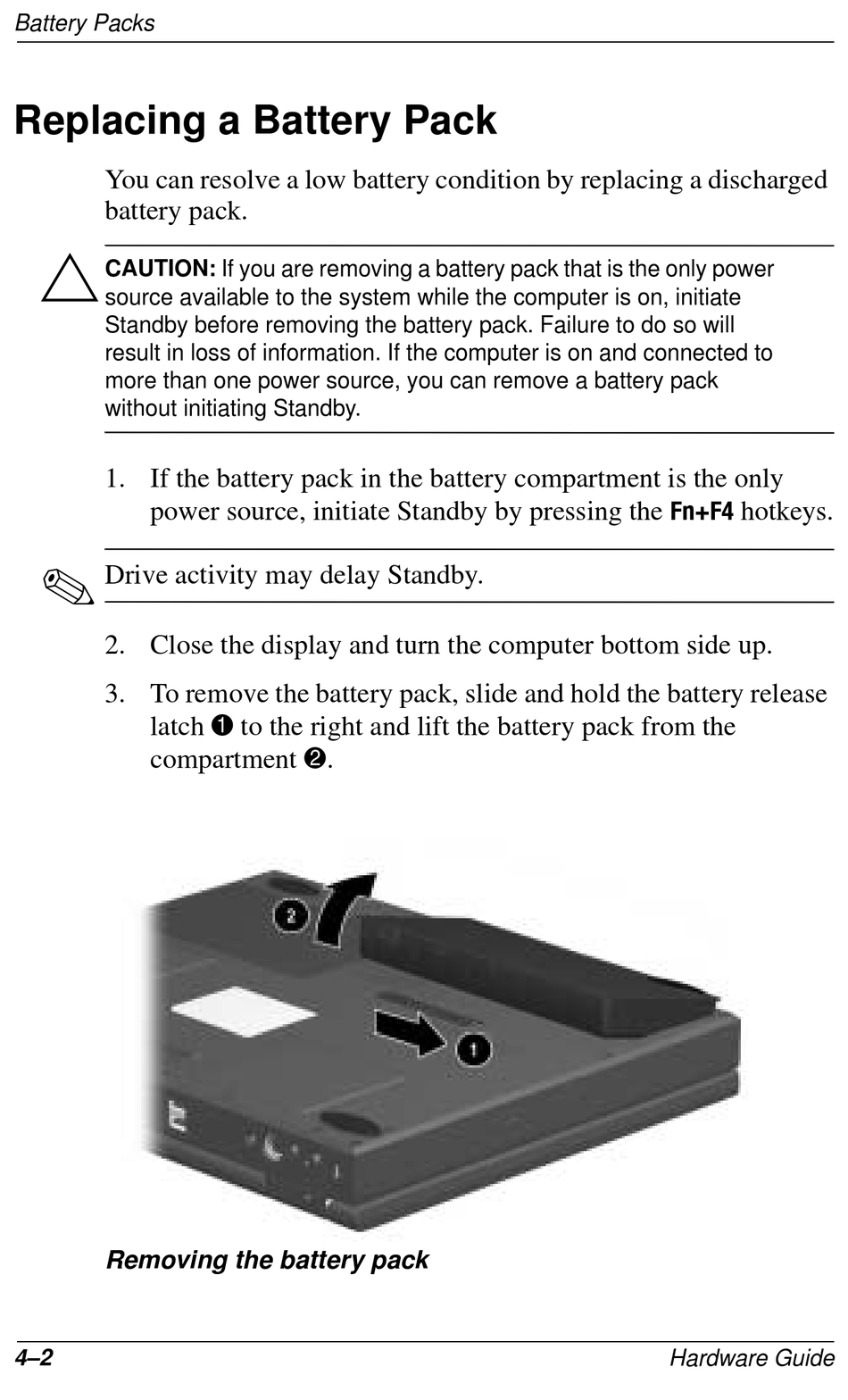

Replacing a Battery Pack
You can resolve a low battery condition by replacing a discharged
battery pack.
Ä
CAUTION: If you are removing a battery pack that is the only power
source available to the system while the computer is on, initiate
Standby before removing the battery pack. Failure to do so will
result in loss of information. If the computer is on and connected to
more than one power source, you can remove a battery pack
without initiating Standby.
1. If the battery pack in the battery compartment is the only
power source, initiate Standby by pressing the
Drive activity may delay Standby.
2. Close the display and turn the computer bottom side up.
3. To remove the battery pack, slide and hold the battery release
latch 1 to the right and lift the battery pack from the
compartment 2.
Removing the battery pack
4–2
hotkeys.
Fn+F4
Hardware Guide
