Compaq Armada 110 Hardware Manual page 7

Hardware and Software Setup
2. Locate the battery pack in the shipping box. If tape is
covering the battery contacts, remove it before installing the
battery pack.
3. Install the battery pack into the battery compartment.
a. Turn the computer bottom side up.
b. Insert the battery at a 45-degree angle into the
c. Press down the battery pack until the release latch 2

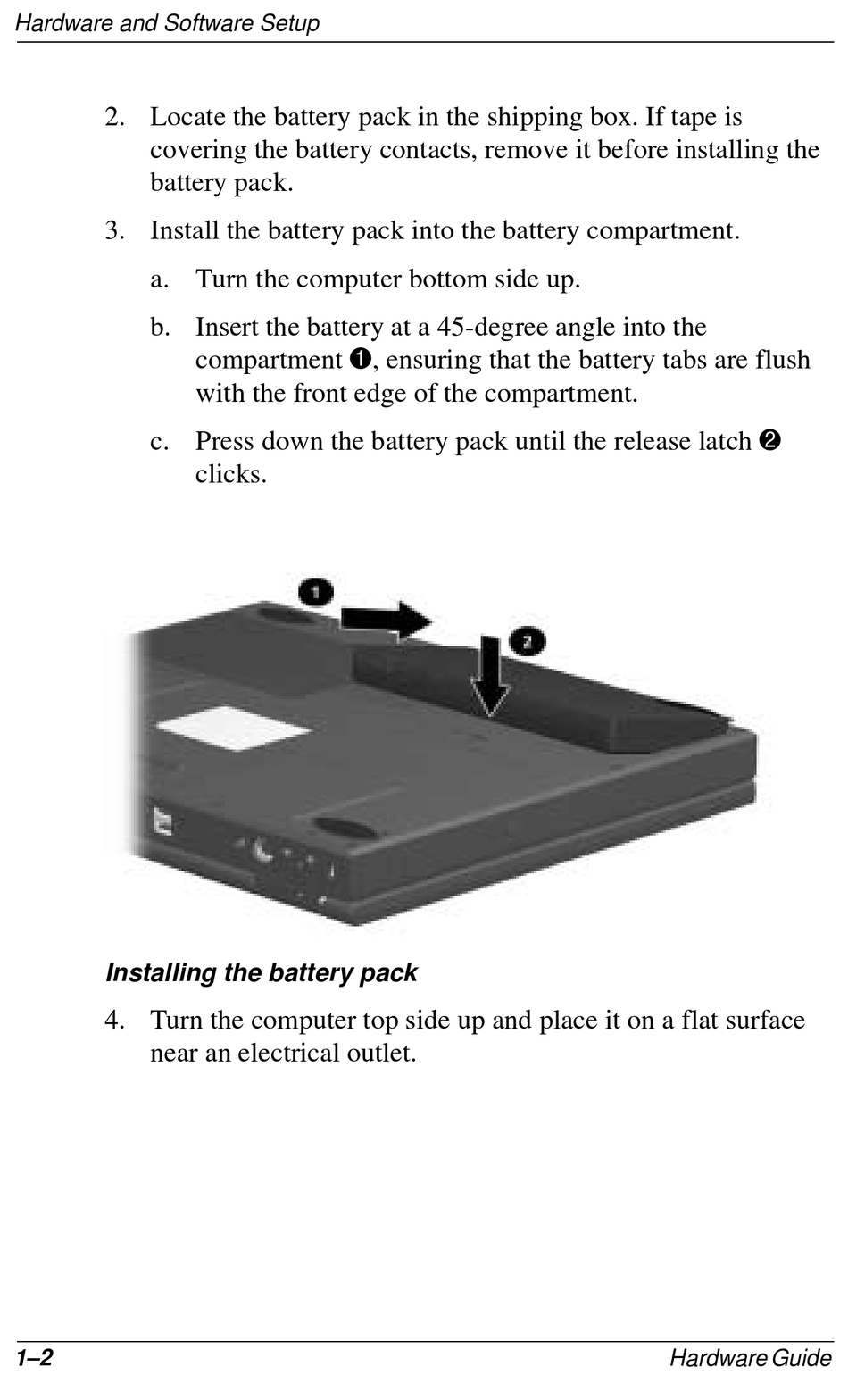

Installing the battery pack
4. Turn the computer top side up and place it on a flat surface
near an electrical outlet.
1–2
compartment 1, ensuring that the battery tabs are flush
with the front edge of the compartment.
clicks.
Hardware Guide
