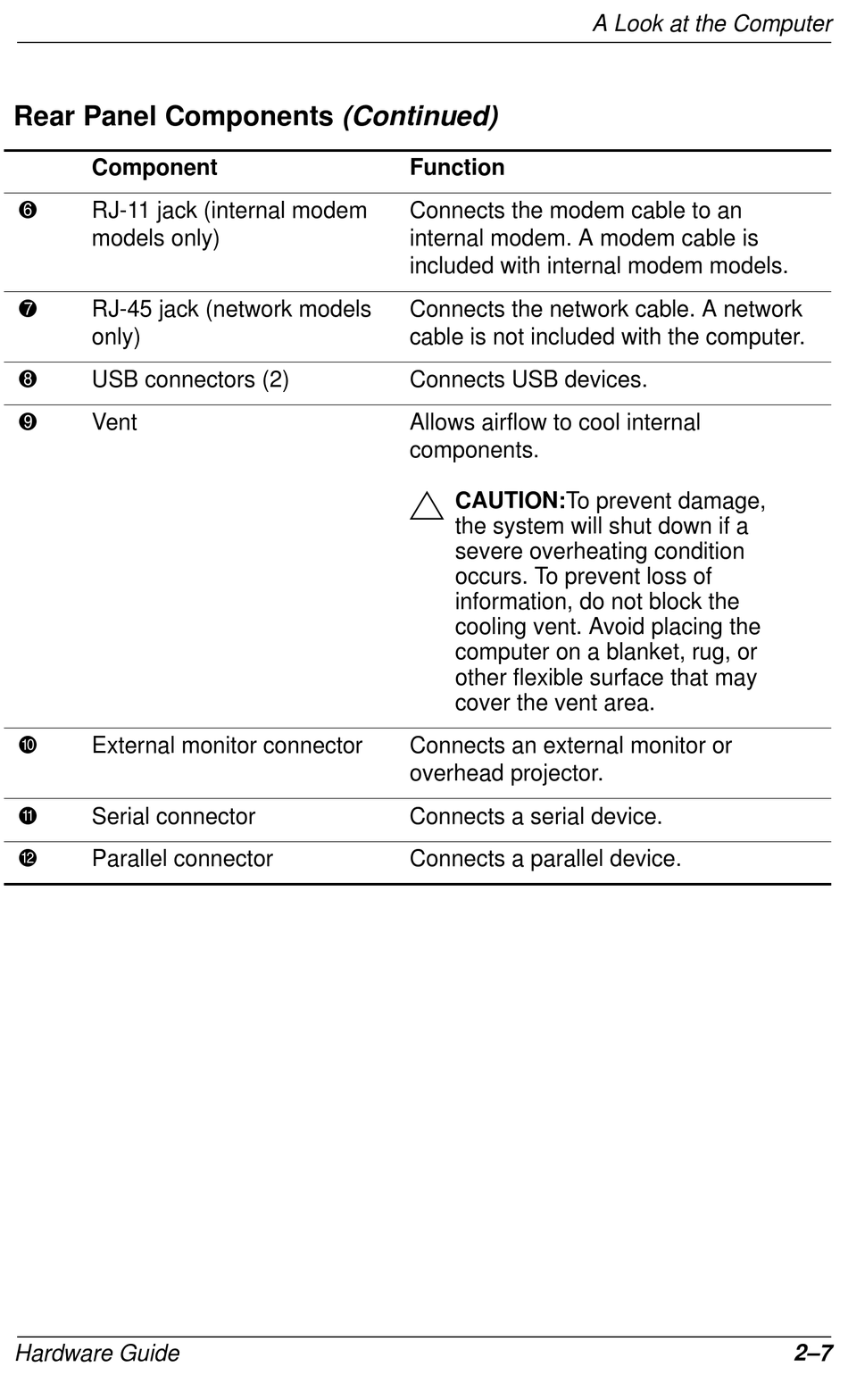

Rear Panel Components (Continued)
Component
6
RJ-11 jack (internal modem
models only)
7
RJ-45 jack (network models
only)
8
USB connectors (2)
9 Vent
-
External monitor connector
q
Serial connector
w Parallel connector
Hardware Guide
Function
Connects the modem cable to an
internal modem. A modem cable is
included with internal modem models.
Connects the network cable. A network
cable is not included with the computer.
Connects USB devices.
Allows airflow to cool internal
components.
Ä
CAUTION:To prevent damage,
the system will shut down if a
severe overheating condition
occurs. To prevent loss of
information, do not block the
cooling vent. Avoid placing the
computer on a blanket, rug, or
other flexible surface that may
cover the vent area.
Connects an external monitor or
overhead projector.
Connects a serial device.
Connects a parallel device.
A Look at the Computer
2–7
