READ AND SAVE THESE INSTRUCTIONS
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

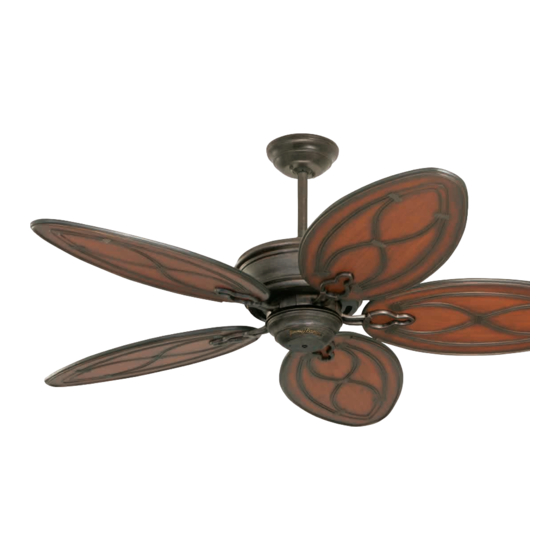

COPA BREEZE
™
52" Wet Location
Ceiling Fan Owner's Manual
Model Number
TB311DBZ01
Distressed Bronze Housing with Weather-Resistant
Medium Antique Brown Blades
Net Weight:
24.5
Lbs.
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Part No. F40BP74090003
Form No. BP7409-3
U.L. Model No.: TB311-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COPA BREEZE TB311DBZ01 and is the answer not in the manual?

Questions and answers

Related Manuals for Tommy Bahama COPA BREEZE TB311DBZ01

Summary of Contents for Tommy Bahama COPA BREEZE TB311DBZ01

  • Page 1 READ AND SAVE THESE INSTRUCTIONS xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx COPA BREEZE ™ 52” Wet Location Ceiling Fan Owner's Manual Model Number TB311DBZ01 Distressed Bronze Housing with Weather-Resistant Medium Antique Brown Blades Net Weight: 24.5 Lbs. xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx Part No. F40BP74090003 Form No. BP7409-3 U.L. Model No.: TB311-1...
  • Page 2 WARNING WARNING: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: a. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer. b. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting means to prevent power from being switched on accidentally.

  • Page 3: Tools Needed For Assembly

    THIS FAN IS SUITABLE FOR WET LOCATIONS SUCH AS PORCHES, PATIOS, AND DECKS. Tools Needed for Assembly Installed Wire Length Wire Size A.W.G. One Phillips head screwdriver Up to 50 ft. One wire stripper 50-100 ft. One stepladder Materials WARNING Wiring, outlet box and box connectors must be Before assembling your ceiling fan, refer to of type required by the local code.

  • Page 4: Electrical Requirements

    Tommy Bahama Wall Control. Use only this Tommy Bahama Wall Control or a listed general use on/off wall switch.

  • Page 5: How To Assemble Your Ceiling Fan

    If your fan is to replace an existing ceiling light 3. Separate, untwist and unkink the three fixture, turn electricity off at the main fuse or motor leads. Route the motor leads through circuit breaker box at this time and remove the the downrod and seat the downrod in the existing light fixture.
  • Page 6 5. While pulling up on the downrod, tighten the setscrew(s) using a phillips screwdriver (Figure 3). SETSCREW HANGER NOTE: The setscrew must be properly BALL installed as described above, or fan wob- ble could result. 6. Route the motor leads through the coupler cover onto the downrod until it rest on the DOWNROD CEILING...
  • Page 7 18. Place the switch housing plate onto the WARNING motor flange. Rotate the switch housing plate clockwise to engage the two loosened To reduce the risk of personal injury, do not bend the blade flanges when installing screws in the key hole slots. Reinstall the the flanges, balancing the blades, or clean- one screw previously removed in Step 17.

  • Page 8: How To Hang Your Ceiling Fan

    21. Position the switch housing assembly on How to Hang the switch housing plate and align the Your Ceiling Fan holes in the switch housing assembly with the holes in the plate. Reinstall the three WARNING screws (previously removed in Step 19) to secure the switch housing assembly The fan must be hung with at least 7' of clear- (Figure 10).
  • Page 9 CAUTION: To reduce the risk of electri- WARNING cal shock, disconnect the electrical supply circuit before installing the fan To avoid possible fire or shock, do not pinch wires between the hanger ball/ and wall control. downrod assembly and hanger bracket. 2.
  • Page 10 CEILING WHITE SUPPLY COVER BLACK SUPPLY (NEUTRAL) (HOT) BLACK FAN WHITE WIRE FAN WIRE SUPPLY BLUE WIRE GROUND WIRE HANGER GREEN WIRE BRACKET (GROUND) FROM THREADED HANGER BALL STUD (2) GREEN WIRE LISTED WIRE (GROUND) FROM 1-1/4" CONNECTOR (3) HANGER BRACKET THREADED STUD LOCKWASHER...
  • Page 11 CAUTION: To reduce the risk of TO FAN MOTOR LOAD NEUTRAL electrical shock, disconnect electrical supply circuit before installing the fan and wall control. NOTE: Electric connections should be in accordance with the National Electrical Codes and all Local Codes. Before starting, disconnect power to the circuit at the fuse box or circuit breaker panel.

  • Page 12: Using Your Ceiling Fan

    Using Your Ceiling Fan Maintenance IMPORTANT IMPORTANT CARE INSTRUCTIONS Fan installation must be completed, for your Ceiling Fan including the installation of the fan Periodic cleaning of your new ceiling fan is the blades, before testing of the controls. only maintenance that is needed. When cleaning, use only a soft brush or lint free cloth to avoid scratching the finish.

  • Page 13: Troubleshooting

    WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN. Trouble Shooting TROUBLE PROBABLE CAUSE SUGGESTED REMEDY 1. Fan will not 1. Fuse or circuit breaker 1. Check main and branch start.

  • Page 14: How To Order Repair Parts

    Repair Parts Before discarding packaging material, be certain all parts have been removed. HOW TO ORDER REPAIR PARTS WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: • PART NUMBER • NAME OF ITEM • PART DESCRIPTION • MODEL NUMBER The model number of your Fan will be found on a label attached to the top housing.
  • Page 15 Repair Parts Listing Part Number Model No. Description TB311DBZ01 Hanger Pack, Consisting of: 761655-81 Hanger Bracket — Hanger Ball — Downrod — Parts Bag, Containing: 764022 Wire Connector (4) — Knurled Knob, #8-32 (2) — Lockwasher, #8 (2) — Threaded Stud, 1-1/4” (2) —...

  • Page 16: Limited Warranty

    LIMITED WARRANTY What The Warranty Covers: This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials. You must be the original purchaser or user of the product to be covered. What The Period Of Coverage Is: As it applies to the motor, this warranty will last for the lifetime of your ceiling fan.
