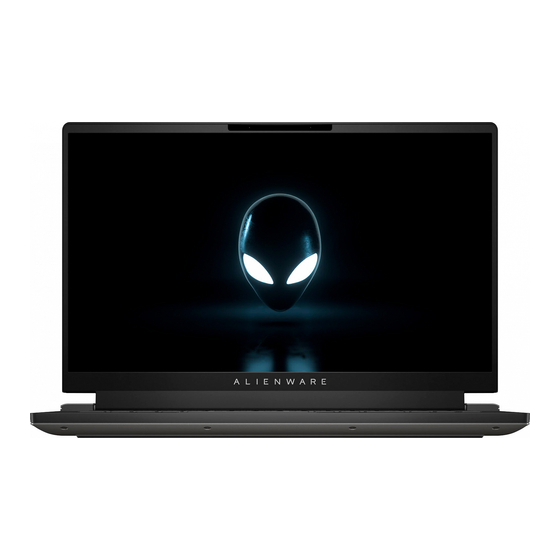

Alienware m15 R7 AMD
Service Manual
Regulatory Model: P109F
Regulatory Type: P109F007/P109F008
March 2022
Rev. A00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the m15 R7 AMD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alienware m15 R7 AMD

Summary of Contents for Alienware m15 R7 AMD

  • Page 1 Alienware m15 R7 AMD Service Manual Regulatory Model: P109F Regulatory Type: P109F007/P109F008 March 2022 Rev. A00...
  • Page 2 Notas, avisos e advertências NOTA: Uma NOTA fornece informações importantes para ajudar a utilizar melhor o produto. AVISO: Um AVISO indica possíveis danos no hardware ou uma perda de dados e explica como pode evitar esse problema. ADVERTÊNCIA: Uma ADVERTÊNCIA indica possíveis danos no equipamento, lesões corporais ou morte. ©...

  • Page 3: Table Of Contents

    Após efetuar qualquer procedimento no interior do computador..................8 Chapter 2: Retirar e instalar componentes....................9 Ferramentas recomendadas..............................9 Lista de parafusos................................. 9 Major components of Alienware m15 R7 AMD.........................10 Desmontagem e remontagem............................12 Tampa da base................................12 Unidade de estado sólido..............................17 Memória..................................
  • Page 4 Diagnóstico do SupportAssist............................86 System-diagnostic lights..............................87 Recuperar o sistema operativo............................87 Opções de recuperação e backup de suportes de dados....................88 Ciclo de alimentação Wi-Fi............................... 88 Drenar a corrente de fuga residual (efetuar um reinício)....................88 Chapter 6: Getting help and contacting Alienware................90...

  • Page 5: Chapter 1: Trabalhar No Interior Do Computador

    Trabalhar no interior do computador Antes de efetuar qualquer procedimento no interior do computador Sobre esta tarefa NOTA: As imagens apresentadas neste documento podem não representar exatamente o seu computador, pois dependem da configuração encomendada. Passo 1. Guarde e feche todos os ficheiros abertos e saia de todas as aplicações abertas. 2.

  • Page 6: Proteção Contra Descargas Eletrostáticas - Proteção Esd

    AVISO: Prima e ejete todos os cartões instalados no leitor de cartões de memória. AVISO: Tenha o máximo cuidado quando manusear baterias de iões de lítio em computadores portáteis. As baterias inchadas não devem ser utilizadas e devem ser substituídas e eliminadas de forma adequada. NOTA: Pode haver diferenças de aparência entre a cor do computador e determinados componentes em relação aos apresentados nas ilustrações deste documento.

  • Page 7: Transporte De Componentes Sensíveis

    tapete antiestático para proteger o hardware temporariamente colocado no tapete. A ligação física entre a pulseira antiestática, o fio de ligação e a sua pele, o tapete antiestático e o hardware é denominada por ligação. Utilize apenas os kits de serviço no campo que incluem uma pulseira antiestática, um tapete antiestático e um fio de ligação.

  • Page 8: Após Efetuar Qualquer Procedimento No Interior Do Computador

    6. Siga as mesmas técnicas em sentido contrário para baixar a carga. Após efetuar qualquer procedimento no interior do computador Sobre esta tarefa AVISO: Deixar parafusos soltos no interior do computador pode danificá-lo gravemente. Passo 1. Volte a colocar todos os parafusos e certifique-se de que ficam parafusos soltos dentro do computador. 2.

  • Page 9: Chapter 2: Retirar E Instalar Componentes

    Retirar e instalar componentes NOTA: As imagens apresentadas neste documento podem não representar exatamente o seu computador, pois dependem da configuração encomendada. Ferramentas recomendadas Os procedimentos descritos neste documento podem requerer as seguintes ferramentas: ● Phillips screwdriver #0 ● Plastic scribe Lista de parafusos NOTA: Quando retirar os parafusos de um componente, recomendamos que tome nota do tipo de parafuso e da quantidade de parafusos, e que os coloque numa caixa para armazenamento de parafusos.

  • Page 10: Major Components Of Alienware M15 R7 Amd

    M2x4 (captive screw) Ethernet and audio board M2x4 USB board M2x4 Rear I/O cover M2x4 Rear I/O cover M2.5x5 Power button M2x2 Major components of Alienware m15 R7 AMD The following image shows the major components of Alienware m15 R7 AMD.
  • Page 11 1. Base cover 2. 2280 solid-state drive thermal shield 3. 2280 solid-state drive 4. 2230 solid-state drive thermal shield 5. 2230 solid-state drive 6. Left fan...

  • Page 12: Desmontagem E Remontagem

    7. Heat sink 8. Right-I/O board 9. Battery 10. Left speaker 11. Palm-rest and keyboard assembly 12. Display assembly 13. Touchpad 14. Touchpad bracket 15. Keyboard-controller board 16. Right speaker 17. Rear-I/O cover 18. Left-I/O board 19. Power button 20.Power-button bracket 21.
  • Page 15 Steps 1. Remove the four screws (M2.5x5) that secure the base cover to the palm-rest and keyboard assembly. 2. Loosen the four captive screws that secure the base cover to the palm-rest and keyboard assembly. 3. Using a plastic scribe, pry the base cover from the bottom left and continue to work on the sides to open the base cover. 4.

  • Page 17: Unidade De Estado Sólido

    Steps 1. Connect the battery cable to the system board. 2. Adhere the tape that secures the battery cable to the battery. 3. Slide the tabs on the top of the base cover under the rear I/O-cover and snap the base cover to the palm-rest and keyboard assembly.
  • Page 18 Steps 1. Remove the two screws (M2x4) that secure the 2230 thermal shield to the palm-rest and keyboard assembly. 2. Slide and remove the 2230 thermal shield off the solid-state drive. 3. Slide and remove the 2230 solid-state drive from the solid-state drive slot. Installing the 2230 solid-state drive in slot one Prerequisites If you are replacing a component, remove the existing component before performing the installation process.
  • Page 19 Steps 1. Align the notch on the 2230 solid-state drive with the tab on the M.2 card slot on the system board. 2. Slide the 2230 solid-state drive into the M.2 card slot on the system board. 3. Align and place the solid-state drive thermal shield on the solid-state drive. 4.
  • Page 20 Steps 1. Remove the two screws (M2x4) that secure the 2280 thermal shield to the palm-rest and keyboard assembly. 2. Lift the 2280 thermal shield off the solid-state drive. 3. Slide and remove the 2280 solid-state drive from the solid-state drive slot. Installing the 2280 solid-state drive in slot one Prerequisites If you are replacing a component, remove the existing component before performing the installation process.
  • Page 21 Steps 1. Align the notch on the 2280 solid-state drive with the tab on the M.2 card slot on the system board. 2. Slide the 2280 solid-state drive into the M.2 card slot on the system board. 3. Slide the tab on the 2280 thermal shield into the M.2 card slot and align the screw holes on the thermal shield to the screw holes on the palm-rest and keyboard assembly.
  • Page 22 3. To install a 2230 solid-state drive in SSD slot one, see installing the 2230 solid-state drive in SSD slot one. 4. To install a 2280 solid-state drive in SSD slot one, see installing the 2280 solid-state drive in SSD slot one.
  • Page 23 Steps 1. Remove the two screws (M2x4) that secure the 2230 thermal shield to the palm-rest and keyboard assembly. 2. Slide and remove the 2230 thermal shield off the solid-state drive. 3. Slide and remove the 2230 solid-state drive from the solid-state drive slot. Installing the 2230 solid-state drive in slot two Prerequisites If you are replacing a component, remove the existing component before performing the installation process.
  • Page 24 Steps 1. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 card slot on the system board. 2. Slide the M.2 2230 solid-state drive into the M.2 card slot on the system board. 3. Align and place the solid-state drive thermal shield on the solid-state drive. 4.
  • Page 25 Steps 1. Remove the two screws (M2x4) that secure the 2280 thermal shield to the palm-rest and keyboard assembly. 2. Lift the 2280 thermal shield off the solid-state drive. 3. Slide and remove the 2280 solid-state drive from the solid-state drive slot. Installing the 2280 solid-state drive in slot two Prerequisites If you are replacing a component, remove the existing component before performing the installation process.
  • Page 26 Steps 1. Align the notch on the M.2 2280 solid-state drive with the tab on the M.2 card slot on the system board. 2. Slide the M.2 2280 solid-state drive into the M.2 card slot on the system board. 3. Slide the tab on the 2280 thermal shield into the M.2 card slot and align the screw holes on the thermal shield to the screw holes on the palm-rest and keyboard assembly.

  • Page 27: Memória

    3. To install a 2230 solid-state drive in SSD slot two, see installing the 2230 solid-state drive in SSD slot two. 4. To install a 2280 solid-state drive in SSD slot two, see installing the 2280 solid-state drive in SSD slot two.
  • Page 28 Steps 1. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up. 2. Slide and remove the memory module from the memory-module slot. CAUTION: To prevent damage to the memory module, hold the memory module by the edges. Do not touch the components on the memory module.

  • Page 29: Placa De Rede Sem Fios

    Steps 1. Align the notch on the memory module with the tab on the memory-module slot. 2. Slide the memory module firmly at an angle, into the memory-module slot. 3. Press the memory module down until it clicks into place. CAUTION: To prevent damage to the memory module, hold the memory module by the edges.
  • Page 30 Steps 1. Remove the screw (M2x4) that secures the wireless-card bracket to the wireless card and palm-rest and keyboard assembly. 2. Slide and lift the wireless-card bracket off the wireless card. 3. Disconnect the antenna cables from the wireless card. 4.
  • Page 31 Steps 1. Connect the antenna cables to the wireless card. NOTE: The following table provides the antenna-cable color scheme for the wireless card that is supported by your computer. Table 2. Esquema de cores dos cabos da antena Conectores na placa Cor do cabo de antena Marca de serigrafia sem fios...

  • Page 32: Rear-I/O Cover

    Next steps 1. Install the base cover. 2. Follow the procedure in After working inside your computer. Rear-I/O cover Removing the rear-I/O cover Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. About this task The following image(s) indicate the location of the rear-I/O cover and provides a visual representation of the removal procedure.
  • Page 33 Installing the rear-I/O cover Prerequisites If you are replacing a component, remove the existing component before performing the installation process. About this task The following image(s) indicate the location of the rear-I/O cover and provides a visual representation of the installation procedure. Steps 1.

  • Page 34: Bateria

    Bateria Precauções com a bateria de iões de lítio AVISO: ● Tenha todo o cuidado quando manusear as baterias de iões de lítio. ● Descarregue completamente a bateria antes de retirar a mesma. Desligue o transformador CA do sistema e trabalhe com o computador apenas com a alimentação da bateria —...
  • Page 35 Steps 1. Peel the tape that secures the battery cable to the battery. 2. Disconnect the battery cable from the system board. NOTE: This step is applicable only if the battery cable has not been disconnected. 3. Remove the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly. 4.

  • Page 36: Cabo Da Bateria

    Steps 1. Using the alignment posts, place the battery on the palm-rest and keyboard assembly. 2. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly. 3. Replace the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly. 4.
  • Page 37 Steps 1. Turn the battery over. 2. Peel the battery cable off the battery. 3. Disconnect the battery cable from the battery. 4. Lift the battery cable off the battery. Installing the battery cable Prerequisites If you are replacing a component, remove the existing component before performing the installation process. About this task The following image(s) indicate the location of the battery cable and provides a visual representation of the installation procedure.

  • Page 38: Altifalantes

    Altifalantes Removing the speakers Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. 3. Remove the battery. 4. Remove the 2230 solid-state drive 2280 solid-state drive in slot two, whichever applicable. About this task The following image(s) indicate the location of the speakers and provides a visual representation of the removal procedure.

  • Page 39: Porta Do Transformador De Corrente

    Steps 1. Using the alignment posts, place the left and right speakers into their slots on the palm-rest and keyboard assembly. NOTE: Ensure that the alignment posts are threaded through the rubber grommets on the speaker. 2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly. 3.
  • Page 40 Steps 1. Peel the tape that secures the display-cable connector latch to the system board. 2. Open the latch and disconnect the display cable from the system board. 3. Disconnect the Alien head LED-cable from the system board. 4. Peel the display cable off the system board and move it out of the way. 5.

  • Page 41: Painel Tátil

    Steps 1. Lift the corner of the Mylar that covers the system board. 2. Slide the power-adapter port at an angle into the slot on the palm-rest and keyboard assembly and adhere the power-adapter port cable to the Mylar. 3. Connect the power-adapter port cable to the system board. 4.
  • Page 42 Steps 1. Open the latch and disconnect the touchpad cable from the touchpad. 2. Peel the tape that secures the speaker cable to the touchpad. 3. Remove the speaker cable off the routing guides on the palm-rest and keyboard assembly and move the speaker cable out of the way.
  • Page 43 Steps 1. At an angle slide the touchpad into the slot on the palm-rest and keyboard assembly. 2. Turn the computer over and open the display to ensure that the touchpad is equally aligned on all sides. NOTE: The image below shows the proper touchpad alignment for your computer. 3.

  • Page 44: Conjunto Do Ecrã

    Conjunto do ecrã Removing the display assembly Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. 3. Remove the rear-I/O cover. About this task The following image(s) indicate the location of the display assembly and provides a visual representation of the removal procedure.
  • Page 45 Steps 1. Disconnect the camera cable from the system board. 2. Peel the tapes securing the camera cable to the system board and lift the camera cable off the system board. NOTE: This step is applicable only for computers shipped with an infrared camera. 3.
  • Page 46 About this task The following image(s) indicate the location of the display assembly and provides a visual representation of the installation procedure.
  • Page 47 Steps 1. Place the display assembly on the palm-rest and keyboard assembly. CAUTION: To avoid damaging the display, do not slide display assembly over the palm-rest and keyboard assembly. 2. Align the screw holes on the display assembly to the screw holes on the palm-rest and keyboard assembly. 3.

  • Page 48: Placa De Controlo Do Teclado

    3. Follow the procedure in After working inside your computer. Placa de controlo do teclado Removing the keyboard-controller board Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. 3. Remove the battery. About this task The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the removal procedure.
  • Page 49 3. Open the latch and disconnect the keyboard-controller board cable from the system board. 4. Remove the screw (M2x2) that secures the keyboard-controller board to the palm-rest and keyboard assembly. 5. Life the keyboard-controller board off the palm-rest and keyboard assembly. 6.

  • Page 50: Placa De Sistema

    4. Connect the keyboard-backlight cable to the keyboard-contoller board and close the latch to secure the cable. 5. Connect the keyboard cable to the keyboard-controller board and close the latch to secure the cable. 6. Connect the keyboard-controller board cable to the system board and close the latch to secure the cable. Next steps 1.
  • Page 51 3. Power-adapter cable 4. Right-fan cable 5. Speaker cable 6. Touchpad cable 7. Keyboard-controller board cable 8. Left-fan cable 9. Power-button cable 10. Camera cable The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure. Steps 1.
  • Page 52 16. Disconnect the camera cable from the system board. 17. Lift the Mylar that covers the tapes that secure the camera cable to the system board. 18. Peel the tapes securing the camera cable to the system board and lift the camera cable off the system board. NOTE: Step 16 to step 18 are applicable only for computers shipped with an infrared camera.
  • Page 53 7. Keyboard-controller board cable 8. Left-fan cable 9. Power-button cable 10. Camera cable The following image(s) indicate the location of the system board and provides a visual representation of the installation procedure. Steps 1. Turn the system board over. 2. Install the fan and heat-sink assembly.
  • Page 54 15. Connect the speaker cable to the system board. 16. Connect the right-fan cable to the system board. 17. Lift the corner of the Mylar covering the system board. 18. Adhere the power-adapter port-cable to the Mylar. 19. Connect the power-adapter port-cable to the system board. 20.Connect the Alien head LED-cable to the system board.
  • Page 55 1. Display cable 2. Alien head LED-cable 3. Power-adapter cable 4. Right-fan cable 5. Speaker cable 6. Touchpad cable 7. Keyboard-controller board cable 8. Left-fan cable 9. Power-button cable 10. Camera cable The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
  • Page 56 Steps 1. Remove the two screws (M2x4) that secure the Type-C bracket to the system board. 2. Lift the Type-C bracket off the system board. 3. Peel the tape that secures the display-cable connector latch to the system board. 4. Open the latch and disconnect the display cable from the system board. 5.
  • Page 57 22.Remove the fan and heat-sink assembly. 23.Remove the ethernet and audio board. 24.Remove the board. 25.Turn the system board over. 26.After performing all the above steps, you are left with the system board. Installing the system board (NVIDIA GeForce 3050 Ti graphics card) Prerequisites If you are replacing a component, remove the existing component before performing the installation process.
  • Page 58 Steps 1. Turn the system board over. 2. Install the fan and heat-sink assembly. 3. Install the ethernet and audio board. 4. Install the board. 5. Turn the system-board assembly over. 6. Using the alignment posts, place the system-board assembly on the palm-rest and keyboard assembly. 7.

  • Page 59: Conjunto Da Ventoinha E Dissipador De Calor

    20.Connect the Alien head LED-cable to the system board. 21. Adhere the display cable to the system board. 22.Connect the display cable to the system board and close the latch to secure the cable. 23.Adhere the tape that secures the display-cable connector latch to the system board. 24.Place the Type-C bracket on the system board and align the screw holes on the bracket to the screw holes on the system board.
  • Page 60 Steps 1. Turn over the system-board assembly. 2. In reverse sequential order (6>5>4>3>2>1), loosen the six captive screws (M2x4) that secure the fan and heat-sink assembly to the system board. 3. Lift the fan and heat-sink assembly off the system board. Installing the fan and heat-sink assembly Prerequisites If you are replacing a component, remove the existing component before performing the installation process.

  • Page 61: Placa Ethernet E De Áudio

    Steps 1. Place the fan and heat-sink assembly on the system board. 2. Align the screw holes on the fan and heat-sink assembly to the screw holes on the system board. 3. In sequential order (1>2>3>4>5>6>), tighten the six captive screws (M2x4) that secure the fan and heat-sink assembly to the system board.
  • Page 62 4. Remove the 2230 solid state drive 2280 solid-state drive in slot two, whichever applicable. 5. Remove the wireless card. 6. Remove the rear-I/O cover. 7. Remove the battery. 8. Follow the procedure from step 1 to step 21 in removing the system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti) system board (NVIDIA GeForce 3050...

  • Page 63: Placa Usb

    Steps 1. Connect the ethernet and audio board to the system board. 2. Align the screw holes on the ethernet and audio board to the screw holes on the system-board assembly. 3. Replace the two screws (M2x4) that secure the ethernet and audio board to the system-board assembly. 4.
  • Page 64 NOTE: The system board can be removed and installed along with the memory, ethernet and audio board, USB board, and fan and heat sink-assembly. This simplifies the removal and installation procedure and avoids breaking the thermal bond between the system board and heat sink. About this task The following image(s) indicate the location of the USB board and provides a visual representation of the removal procedure.

  • Page 65: Botão Para Ligar/Desligar

    Steps 1. Connect the USB board to the system-board assembly. 2. Align the screw holes on the USB board to the screw holes on the system-board assembly. 3. Replace the three screws (M2x4) that secure the USB board to the system-board assembly. 4.
  • Page 66 NOTE: The system board can be removed and installed along with the memory, ethernet and audio board, USB board, and fan and heat sink-assembly. This simplifies the removal and installation procedure and avoids breaking the thermal bond between the system board and heat sink. About this task The following image(s) indicate the location of the power button and provides a visual representation of the removal procedure.

  • Page 67: Conjunto Do Teclado E Apoio Para As Mãos

    Steps 1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly. 2. Align the screw holes on the power-button bracket to the screw holes on the palm-rest and keyboard assembly. 3.
  • Page 68 11. Remove the display assembly. 12. Remove the keyboard-controller board. 13. Follow the procedure from step 1 to step 21 in removing the system board (NVIDIA GeForce 3060/3070 Ti/3080 Ti) system board (NVIDIA GeForce 3050 Ti), whichever applicable. NOTE: The system board can be removed and installed along with the memory, ethernet and audio board, USB board, and fan and heat sink-assembly.
  • Page 69 Steps Place the palm-rest and keyboard assembly on a flat and clean surface and perform the post-requisites to install the palm-rest and keyboard assembly. NOTE: Install the solid-state drive mounts on slot one and two from the old palm-rest and keyboard assembly into the new palm-rest and keyboard assembly.

  • Page 70: Chapter 3: Controladores E Transferências

    Controladores e transferências Quando realizar uma deteção e resolução de problemas, a transferência ou instalação dos controladores, recomendamos que leia o artigo 000123347 da Base de Dados de Conhecimentos da Dell, Perguntas Frequentes sobre Controladores e Transferências.

  • Page 71: Chapter 4: Configuração Do Sistema

    Configuração do sistema AVISO: Não altere as definições do programa de configuração do BIOS, exceto se for um utilizador de computadores com muita experiência. Algumas alterações podem fazer com que o computador não funcione corretamente. NOTA: Antes de alterar o programa de configuração do BIOS, recomenda-se que anote as informações do ecrã de configuração do BIOS para referência futura.

  • Page 72: Sequência De Arranque

    NOTE: Depending on this computer and its installed devices, the items that are listed in this section may or may not be displayed. Table 3. System setup options—System information menu Overview Alienware m15 R6 BIOS Version Displays the BIOS version number. Service Tag Displays the Service Tag of the computer.
  • Page 73 Table 3. System setup options—System information menu (continued) Overview Core Count Displays the number of cores on the processor. Processor ID Displays the processor identification code. Processor L2 Cache Displays the processor L2 Cache size. Processor L3 Cache Displays the processor L3 Cache size. Microcode Version Displays the microcode version.
  • Page 74 Table 4. System setup options—Boot Configuration menu (continued) Boot Configuration Enable Custom Mode Allows the PK, KEK, db, and dbx security key databases to be modified. Default: OFF Custom Mode Key Management Allows for selection of key database. Default: PK Table 5.
  • Page 75 Table 6. System setup options—Storage menu (continued) Storage Port Enablement Enables or disables the onboard drives. M.2 PCIe SSD-0 Enables or disables the M.2 PCIe SSD-0. Default: ON M.2 PCIe SSD-1 Enables or disables the M.2 PCIe SSD-1. Default: ON SMART Reporting Enable SMART Reporting Enables or disables Self-Monitoring, Analysis, and Reporting Technology...
  • Page 76 Table 8. System setup options—Connection menu (continued) Connection Enable UEFI Network Stack Enables or disables UEFI networking protocols, if they are installed and available. Default: ON HTTP(s) Boot Feature HTTP(s) Boot Enable or disable HTTP(s) Boot feature. Default: ON HTTP(s) Boot Modes Configures HTTP(s) Boot Modes.
  • Page 77 Table 9. System setup options—Power menu (continued) Power Default: ON Intel Speed Shift Technology Intel Speed Shift Technology Enables or disables the Intel Speed Shift Technology support. Setting this option to enable allows the operating system to select the appropriate processor performance automatically.
  • Page 78 Table 11. System setup options—Passwords menu (continued) Passwords Password Configuration Upper Case Letter Enforces password restriction that the password must contain at least one upper case letter. Default: OFF Lower Case Letter Enforces password restriction that the password must contain at least one lower case letter.
  • Page 79 Table 12. System setup options—Update,Recovery menu (continued) Update,Recovery Default: ON BIOS Recovery from Hard Drive BIOS Recovery from Hard Drive Enables the computer to recover from a bad BIOS image, as long as the Boot Block portion is intact and functioning. Default: ON NOTE: BIOS recovery is designed to fix the main BIOS block and cannot work if the Boot Block is damaged.
  • Page 80 Table 14. System setup options—Keyboard menu Keyboard Fn Lock Options Fn Lock Options Enables or disables the Fn lock mode. Default: ON Lock Mode Controls operation of function keys F1-F12. Default: Lock Mode Standard Keyboard Backlight Timeout on AC Keyboard Backlight Timeout on AC Enables the user to define the timeout value for the keyboard backlight when an AC adapter is plugged into the system.
  • Page 81 Table 15. System setup options—Pre-boot Behavior menu (continued) Pre-boot Behavior Default: Thorough. Performs complete hardware and configuration initialization during boot. Extend BIOS POST Time Extend BIOS POST Time Configures the BIOS POST (Power-On Self-Test) load time. Default: 0 seconds Table 16. System setup options—Virtualization Support menu Virtualization Intel®...

  • Page 82: Palavra-Passe De Sistema E De Configuração

    Table 17. System setup options—Performance menu (continued) Performance Extreme Memory Profile Extreme Memory Profile Enables the user to select one of two alternate memory time profiles, in order to take advantage of the fastest possible memory performance. Default: DIMM profile TCC Activation Offset TCC Activation Offset Enables user to adjust CPU's Tcc offset to moderate the performance of the CPU.

  • Page 83: Eliminar Ou Alterar Uma Palavra-Passe De Configuração Do Sistema Existente

    Sobre esta tarefa Para entrar na configuração do sistema, prima F12 imediatamente depois de ligar ou reiniciar o computador. Passo 1. No ecrã BIOS de Sistema ou Configuração do Sistema, selecione Segurança e prima a tecla Enter. É apresentado o ecrã Segurança. 2.

  • Page 84: Limpar As Palavras-Passe Do Bios (Configuração Do Sistema) E Do Sistema

    2. Disconnect the battery cable from the system board. 3. Press the power button for 20 seconds. 4. Wait for one minute. 5. Connect the battery cable to the system board. 6. Install the base cover. Limpar as palavras-passe do BIOS (Configuração do sistema) e do sistema Sobre esta tarefa Para limpar as palavras-passe de sistema ou do BIOS, entre em contacto com o suporte técnico da Dell, conforme descrito em...

  • Page 85: Atualizar O Bios A Partir Do Menu De Arranque Único F12

    Atualizar o BIOS a partir do menu de arranque único F12 Atualizar o BIOS do computador com um ficheiro update.exe do BIOS que é copiado para uma pen USB FAT32 e iniciar a partir do menu de arranque único F12. Sobre esta tarefa Atualização do BIOS Pode executar o ficheiro de atualização do BIOS a partir do Windows com uma pen USB inicializável ou também pode atualizar o...

  • Page 86: Chapter 5: Resolução De Problemas

    Resolução de problemas Como tratar baterias de iões de lítio inchadas Tal como acontece com a maioria dos computadores portáteis, também os computadores portáteis da Dell utilizam baterias de iões de lítio. Um dos tipos de baterias de iões de lítio é o de polímero. Recentemente, a popularidade das baterias de iões de lítio de polímero cresceu e estas baterias passaram a ser um padrão da indústria dos dispositivos eletrónicos, devido às preferências dos clientes para os formatos pequenos (especialmente com os mais recentes computadores portáteis ultrafinos) e para as baterias com grande autonomia.

  • Page 87: System-Diagnostic Lights

    NOTA: Alguns testes destinam-se a dispositivos específicos e requerem a interação do utilizador. Certifique-se sempre de que está presente em frente ao computador quando os testes de diagnóstico são realizados. Para obter mais informações, consulte Verificação do Desempenho do Sistema Pré-Arranque SupportAssist.

  • Page 88: Opções De Recuperação E Backup De Suportes De Dados

    Pode ainda transferi-la a partir do site de suporte da Dell para solucionar problemas no computador quando ele não consegue arrancar para o sistema operativo principal devido a falhas de software ou de hardware. Para obter mais informações sobre o Dell SupportAssist OS Recovery, consulte o Guia do utilizador do Dell SupportAssist OS Recovery em www.dell.com/serviceabilitytools.
  • Page 89 NOTA: Para obter mais informações sobre como realizar uma reinicialização total, consulte o artigo 000130881 da base de conhecimento em www.dell.com/support.

  • Page 90: Chapter 6: Getting Help And Contacting Alienware

    Getting help and contacting Alienware Self-help resources You can get information and help on Alienware products and services using these online self-help resources: Table 21. Alienware products and online self-help resources Self-help resources Resource location Information about Alienware products and services www.alienware.com...
