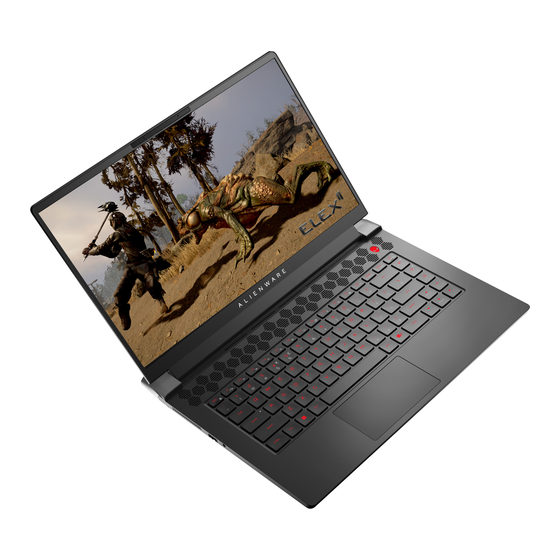

- Page 1 Alienware m15 R7 Setup and Specifications Regulatory Model: P109F Regulatory Type: P109F005/P109F006 March 2022 Rev. A01...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Alienware m15 R7....................4 Chapter 2: Views of Alienware m15 R7....................5 Front......................................5 Right......................................5 Left......................................6 Top......................................6 Back....................................... 7 Bottom....................................8 Chapter 3: Specifications of Alienware m15 R7..................9 Dimensions and weight................................ 9 Processor....................................9 Chipset.................................... -
Page 4: Chapter 1: Set Up Your Alienware M15 R7
Set up your Alienware m15 R7 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Connect the power adapter and press the power button. -
Page 5: Chapter 2: Views Of Alienware M15 R7
Views of Alienware m15 R7 Front 1. Left microphone Provides digital sound input for audio recording and voice calls. 2. RGB-infrared camera This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos. -
Page 6: Left
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. 2. USB 3.2 Gen 1 port with PowerShare Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off. -
Page 7: Back
NOTE: This computer supports AlienFX, which lets you choose from an array of color and transition effects across multiple zones on the computer, including the keyboard and power button. For more information, see Alienware Command Center. Back 1. Thunderbolt 4.0 port Supports USB4, DisplayPort 1.4, Thunderbolt 4 and also enables you to connect to an external display using a display adapter. -
Page 8: Bottom
Connect a power adapter to provide power to your computer and charge the battery. Bottom 1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. -
Page 9: Chapter 3: Specifications Of Alienware M15 R7
Specifications of Alienware m15 R7 Dimensions and weight The following table lists the height, width, depth, and weight of your Alienware m15 R7. Table 1. Dimensions and weight Description Values Height: Front height 12.90 mm (0.51 in.) Rear height 20.60 mm (0.81 in.) Width 356.20 mm (14.02 in.) -
Page 10: Operating System
Your Alienware m15 R7 supports the following operating systems: ● Windows 11 Home, 64-bit ● Windows 11 Pro, 64-bit Memory The following table lists the memory specifications of your Alienware m15 R7. Table 4. Memory specifications Description Values Memory slots... -
Page 11: Internal Slots
One 7.40 mm x 5.10 mm DC-in Security-cable slot Not supported Internal slots The following table lists the internal slots of your Alienware m15 R7. Table 6. Internal slots Description Values ● One M.2 2230 slot for WiFi and Bluetooth combo card ●... -
Page 12: Audio
● AES-CCMP ● AES-CCMP ● TKIP ● TKIP Bluetooth Bluetooth 5.2 Bluetooth 5.2 Audio The following table lists the audio specifications of your Alienware m15 R7. Table 9. Audio specifications Description Values Audio controller Realtek ALC3254 Stereo conversion Supported Internal audio interface... -
Page 13: Storage
● Two M.2 2230/2280 slots for solid-state drives, for computers shipped with a NVIDIA GeForce RTX 3060/3070 Ti/3080 Ti graphics card The primary drive of your Alienware m15 R7 varies with the storage configuration. The primary drive of your computer is the M.2 drive where the operating system is installed. -
Page 14: Camera
Camera The following table lists the camera specifications of your Alienware m15 R7. Table 12. Camera specifications Description Values Number of cameras Camera type ● One HD RGB camera, for computers shipped with a 165 Hz display ● One HD RGB-Infrared camera, for computers shipped with a... -
Page 15: Power Adapter
Power adapter The following table lists the power adapter specifications of your Alienware m15 R7. Table 14. Power adapter specifications Description Option one Option two Type 180 W AC adapter 240 W AC adapter Connector dimensions: External diameter 7.40 mm 7.40 mm... -
Page 16: Display
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. Display The following table lists the display specifications of your Alienware m15 R7. Table 16. Display specifications Description... -
Page 17: Gpu-Integrated
G-SYNC, FreeSync, Advanced G-SYNC, FreeSync, Optimus Optimus Advanced Optimus GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Alienware m15 R7. Table 17. GPU—Integrated Controller Memory size Processor Intel UHD Graphics Shared system memory Generation Intel Core i7-12700H GPU—Discrete... - Page 18 Table 19. Computer environment (continued) Description Operating Storage Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS Shock (maximum) 110 G† 160 G† Altitude range -15.2 m to 3048 m (-49.87 ft to 10000 -15.2 m to 10668 m (-49.87 ft to 35000 CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.
-
Page 19: Chapter 4: Keyboard Shortcuts Of Alienware M15 R7
Keyboard shortcuts of Alienware m15 R7 NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 20 Table 22. List of keys to control audio features Keys Description Mute microphone Mute speakers Increase volume Decrease volume...
-
Page 21: Chapter 5: Low Blue Light
Low blue light WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. -
Page 22: Chapter 6: Alienware Command Center
Alienware Command Center Alienware Command Center (AWCC) provides a single interface to customize and enhance the gaming experience. The AWCC dashboard displays most recently played or added games, and provides game-specific information, themes, profiles, and access to computer settings. You can quickly access settings such as game-specific profiles and themes, lighting, macros, and audio that are critical to the gaming experience. -
Page 23: Chapter 7: Getting Help And Contacting Alienware
Getting help and contacting Alienware Self-help resources You can get information and help on Alienware products and services using these online self-help resources: Table 23. Alienware products and online self-help resources Self-help resources Resource location Information about Alienware products and services www.alienware.com...
