INSTRUCTION MANUAL FOR WATCH CALIBRE
NX04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NX04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pulsar NX04

Summary of Contents for Pulsar NX04

  • Page 1 INSTRUCTION MANUAL FOR WATCH CALIBRE NX04...
  • Page 2 THIS PRODUCT CONTAINS A BUTTON BATTERY If swallowed or placed inside any part of the body, the battery can cause severe or fatal injuries within 2 hours or less. Button batteries are hazardous whether new or used. Keep batteries out of reach of children. If you think the battery may have been swallowed or placed inside any part of the body, seek immediate medical attention.

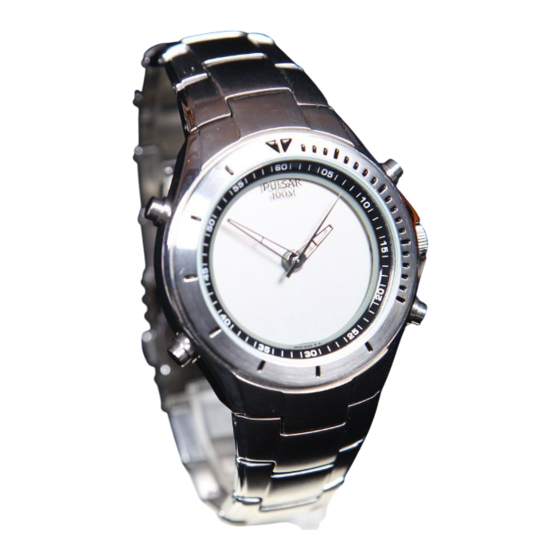

  • Page 3 CAL. NX04 DUO-DISPLAY QUARTZ Time/calendar display Demonstration function World time Stopwatch Regular alarm Single-time alarm Illuminating light (Electroluminescent panel)
  • Page 4 CROWN/BUTTONS AND DISPLAYS Date Hour hand Minute hand CROWN Second hand Hour Minutes Seconds a: Normal position b: Extended position...
  • Page 5 With each press, the mode in the digital display changes in the following order: TIME/ REGULAR WORLD TIME STOPWATCH CALENDAR ALARM Press in TIME/CALENDAR mode to show SINGLE-TIME ALARM mode. TIME/CALENDAR SINGLE-TIME ALARM With each press in the TIME/CALENDAR mode, the display changes in the following order: Time/Calendar Calendar...

  • Page 6: Screw Down Crown

    SCREW DOWN CROWN [for models with screw down crown] Unlocking the crown 1 Turn Crown counterclockwise until you no longer feel the threads turning. 2 Crown can be pulled out. Locking the crown 1 Push Crown back in to normal position. 2 Turn Crown clockwise while pressing it lightly until tight.

  • Page 7: Time/Calendar Mode

    TIME/CALENDAR MODE Before setting the analogue time, be sure to set the digital time. DIGITAL TIME/CALENDAR SETTING Once the time/calendar of your area is set in the TIME/CALENDAR mode, the times of the 27 cities covered in the WORLD TIME mode will be set automatically. Press to show TIME/CALENDAR Date mode.
  • Page 8 Press to select the digits/segments to be adjusted (flashing). City Seconds Minutes Hour Year Month Date 12-/24-hour indication Press to set the flashing digits/segments. Press to return to TIME/CALENDAR mode.

  • Page 9: Analogue Time Setting

    ANALOGUE TIME SETTING CROWN Second hand 1 Pull out when the second hand is Hour hand Minute hand at the 12 o’clock position. 2 Turn to set the hour and minute hands to the time shown in the digital display. 3 Push back in to the normal position when the second digits count “00”...

  • Page 10: Demonstration Function

    1 Press button A for 2 to 3 seconds in the TIME/CALENDAR mode to show the TIME/CALENDAR SETTING display. 2 Press button D repeatedly to select the city representing the place you are visiting. 3 Press button A to return to the TIME/CALENDAR mode, and then, adjust the hands to the digital time.

  • Page 11: World Time Mode

    WORLD TIME MODE The times of 27 cities in different time zones throughout the world can be displayed together with the time difference between the selected city and your area. Daylight saving time can be set for each city. Daylight saving time mark Press to show Time difference WORLD TIME mode.
  • Page 12 DISPLAYING THE DAYLIGHT SAVING TIME 1 Press button C or D to select the desired city. 2 Press button A for 2 to 3 seconds to show the DAYLIGHT SAVING TIME SETTING display. * A flashing “DST” mark appears. 3 With each press of button D, the standard time and daylight saving time of the selected city are alternately shown.
  • Page 13 Time differences U T C = c o o r d i n a t e d u n i v e r s a l t i m e UTC ± (hours) UTC ± (hours) daylight City mark City name [standard time] saving time (–11)*...
  • Page 14 UTC ± (hours) UTC ± (hours) daylight City name City mark [standard time] saving time Jerusalem +02:00 +03:00 Jeddah +03:00 +04:00 Tehran +03:30 +04:30 Dubai +04:00 +05:00 Kabul +04:30 +05:30 Karachi +05:00 +06:00 Delhi +05:30 +06:30 Dhaka +06:00 +07:00 Yangon +06:30 +07:30 Bangkok...

  • Page 15: Stopwatch Mode

    STOPWATCH MODE The stopwatch can measure up to 23 hours, 59 minutes and 59 seconds in 1/100 second increments for the first hour and in 1 second increments thereafter. Start/Stop/Restart STOPWATCH mode mark Reset Minutes Seconds 1/100 seconds...
  • Page 16 STOPWATCH OPERATION Press button A to show the STOPWATCH mode. Accumulated elapsed time measurement Start Stop Restart Stop Reset...
  • Page 17 REGULAR ALARM MODE Press to show REGULAR ALARM REGULAR ALARM mode. mode mark Alarm mark Press for 2 to 3 seconds to show REGULAR ALARM SETTING display. * The hour digits start flashing. Press to select the digits to be adjusted (flashing).
  • Page 18 Press to return to REGULAR ALARM mode. * The alarm mark appears and the regular alarm is automatically engaged. Engagement/disengagement of the regular alarm With each press of button C in the REGULAR ALARM mode, the regular alarm is engaged and disengaged alternately. * At the designated time, the alarm rings for 20 seconds and stops.
  • Page 19 SINGLE-TIME ALARM MODE The single-time alarm can be set to ring only once at the designated time. As it rings, it is automatically disengaged. The alarm time can be set in 1 minute increments starting from the current time. Designated alarm time Press in TIME/CALENDAR Single-time mode to show SINGLE-TIME...

  • Page 20: Illuminating Light (Electroluminescent Panel)

    * The alarm rings at the designated time for 20 seconds. To stop it manually, press any of the buttons. To cancel the alarm time you have set, press buttons C and D at the same time or press button C or D to set the alarm time to the current time in the SINGLE-TIME ALARM mode.

  • Page 21: Notes On Using The Watch

    NOTES ON USING THE WATCH CROWN/BUTTONS AND DISPLAYS If the watch is left untouched in the WORLD TIME mode, it will automatically return to the TIME/CALENDAR mode in 1 to 2 minutes. TIME/CALENDAR MODE [DIGITAL TIME/CALENDAR SETTING] The calendar automatically adjusts for odd and even months including February of leap years from 2000 to 2050.
  • Page 22 When setting the hour digits in the 12-hour indication, check that AM/PM is properly set. Only the “PM” mark is displayed. For the AM setting, there is no indication. In the 24- hour indication, “24” is displayed. If the watch is left untouched in the TIME/CALENDAR SETTING display with the digits/ segments flashing, it will automatically return to the TIME/CALENDAR mode in 1 to 2 minutes.
  • Page 23 STOPWATCH MODE Restart and stop of the stopwatch can be repeated by pressing button C. Even if the STOPWATCH mode is changed to another while the measurement is in progress, it continues counting properly. After the stopwatch is used, however, be sure to reset it as the battery energy is consumed enormously to shorten the battery life.
  • Page 24 With each press of button C or D, one minute is advanced or moved back, respectively. The digits move quickly by keeping the respective buttons pressed. If the watch is left untouched in the SINGLE-TIME ALARM mode, it will automatically return to the TIME/CALENDAR mode in 20 to 30 seconds.

  • Page 25: Battery Change

    When the batteries expire, be sure to replace them as soon as possible to prevent any malfunction. We recommend that you contact an AUTHORIZED PULSAR DEALER for battery replacement. Necessary procedure after battery change After the battery is replaced with a new one or if an abnormal display (broken digits, etc.)
  • Page 26 Press and hold buttons A, B, C and D at the same time for 2 to 3 seconds. When the buttons are released, “12:00'00" a.m., Jan. 1st, 2000, SAT” will be displayed and “UTC” will be selected in the WORLD TIME mode. * Before using the watch, set the time/calendar and then, the alarm.

  • Page 27: To Preserve The Quality Of Your Watch

    3 bar, such as acci- diving. We recommend that you wear a PULSAR dental contact with splashes of water or rain, but it is Diver’s watch for scuba diving.
  • Page 28 * Before using the water resistance 5, 10, 15 or 20 bar watch in water, be sure the crown is pushed in completely. Do not operate the crown when the watch is wet or in water. If used in sea water, rinse the watch in fresh water and dry it completely.
  • Page 29 2 - 3 Years your watch checked by an watch or hit it against hard AUTHORIZED PULSAR surfaces, as this may cause damage. DEALER or SERVICE CENTER to ensure that the case, crown, buttons, gasket and crystal seal remain intact.
  • Page 30 CHEMICALS PRECAUTION REGARDING CASE BACK PROTECTIVE FILM Be careful not to expose the watch to solvents, I f y o u r w a t c h h a s a mercury, cosmetic spray, protective film and/or a detergents, adhesives or sticker on the case back, paints.
