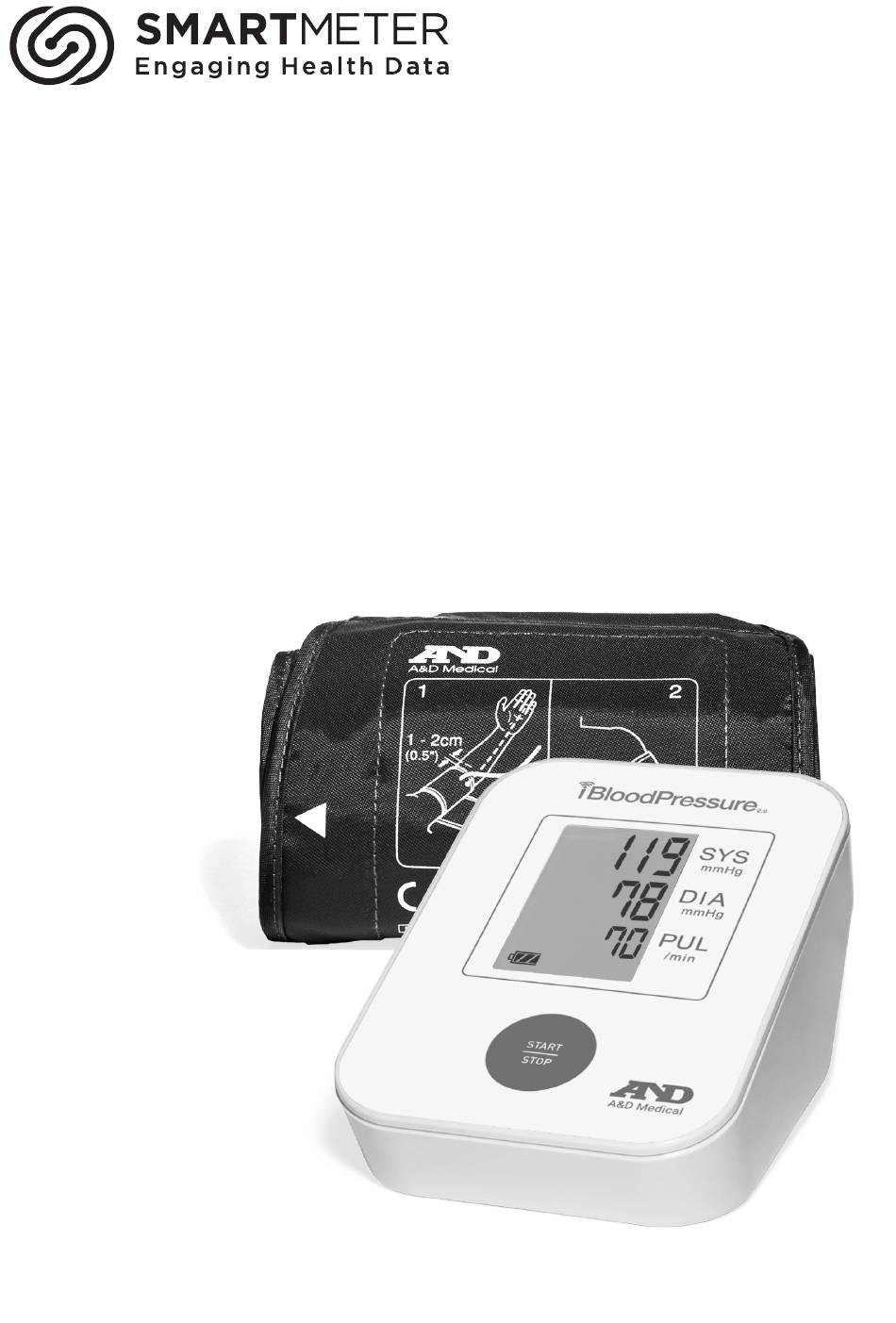

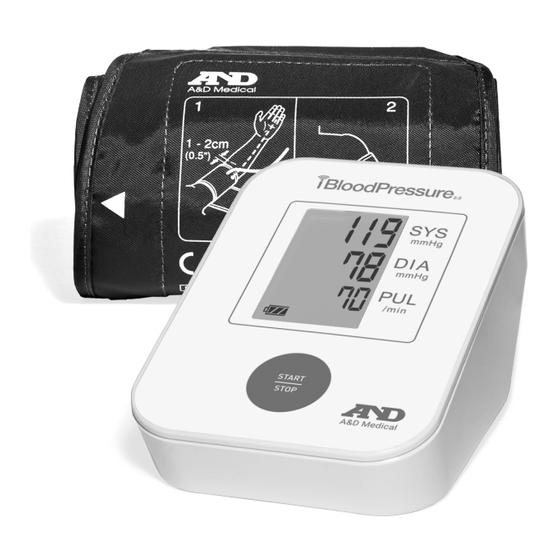

- Page 1 CELLULAR BLOOD PRESSURE MONITOR UPPER ARM UA-651CEL-SM Instruction Manual...
- Page 2 Greetings The iBloodPressure® 2.0 from A&D and Smart Meter is one of the most advanced blood pressure monitors available and is designed for ease of use and accuracy. This device will facilitate your daily blood pressure regimen. We recommend that you read through this manual carefully before using the device for the first time.
- Page 3 Precautions • When the AC adapter is used, make sure that the AC adapter can be readily removed from the electrical outlet when necessary. • Do not modify the device. It may cause accidents or damage to the device. • To measure blood pressure, the arm must be squeezed by the cuff hard enough to temporarily stop blood flow through the artery.
- Page 4 Precautions • Do not self-diagnose the measurement results and start treatment by yourself. Always consult your doctor for evaluation of the results and treatment. • Do not apply the cuff on an arm with an unhealed wound. • Do not apply the cuff on an arm receiving an intravenous drip or blood transfusion.
- Page 5 Precautions • Do not touch the batteries, the DC jack, and the patient at the same time. That may result in electrical shock. • Do not inflate without wrapping the cuff around the upper arm. • A&D Medical and Smart Meter cannot accept liability for any damages incurred due to impaired operation or data loss, etc.
-
Page 6: Table Of Contents
Contents Parts Identification Symbols Using the Monitor Taking your Blood Pressure E-14 What is an Irregular Heartbeat E-17 Pressure Bar Indicator E-17 AHA Classification E-18 About Blood Pressure E-19 Troubleshooting E-21 Maintenance E-22 Technical Data E-23 Warranty E-28... -
Page 7: Parts Identification
Parts Identification Proper fit range Index Artery position mark DC jack Air Hose AC adapter Plug Display START Button Air Socket Cuff Air Connector Plug Battery Compartment Display Systolic Pressure Pressure Bar Indicator Diastolic Pressure Heart Mark Pulse rate Battery Indicator I.H.B. -
Page 8: Symbols
Symbols Symbols Function/Meaning Recommended Action Appears while measurement is in Measurement is in progress. progress. It blinks when the pulse Remain as still as possible. is detected. Irregular Heartbeat symbol (I.H.B.) appears when an irregular heartbeat is detected. –––––––––––– It may light when a very slight vibration like shivering or shaking is detected. - Page 9 Symbols Symbols printed on the device case Symbols Function/Meaning Standby and turn the device on. Systolic blood pressure in mmHg Diastolic blood pressure in mmHg PUL/min Pulse per minute Battery installation guide R6(LR6,AA) Direct current International protection symbol Serial number Refer to instruction manual/booklet Keep dry Polarity of DC jack...
-
Page 10: Using The Monitor
Using the Monitor Installing/Changing the batteries 1. Remove the battery cover. Step 1 Step 4 2. Remove the used batteries from the battery compartment when changing them. Step 3 3. Insert new batteries or replace Step 2 used batteries as shown, taking care that the polarities (+) and (-) are correct. - Page 11 Using the Monitor Connecting the Air Hose Insert the air connector plug into the air Air Hose socket firmly. Air Connector Plug Connecting the AC Adapter Air Socket Insert the AC adapter plug into AC adapter Plug the DC jack. Then, insert the DC Jack AC adapter into an electrical outlet.
- Page 12 Using the Monitor Transmitting Temporarily Stored Data In cases when the network cannot receive measurement data, the measurement data is temporarily stored in the monitor memory. The data stored in the memory is transmitted the next time a connection is successfully made to the network. A total of 5 sets of measurement data can be stored.
- Page 13 Using the Monitor Symbols that are printed on the cuff Symbols Function/Meaning Recommended Action Set the mark on the artery of the upper arm or in line with Artery position mark the ring finger on the inside of the arm. Index ––––––––––––...
- Page 14 Using the Monitor Applying the arm cuff 1. Wrap the cuff around the upper arm, about 0.5" (1-2 cm) above the inside of the elbow as shown. Place the cuff directly against the skin, as clothing may cause a faint pulse and result in a measurement error.
-
Page 15: Taking Your Blood Pressure
Taking your Blood Pressure This blood pressure monitor is designed to detect the pulse and to inflate the cuff to a systolic pressure level automatically. Tips for Taking Blood Pressure Before Your Measurement: • For 30 minutes prior to taking your blood pressure »... - Page 16 Taking your Blood Pressure Normal Measurement 1. Place the cuff on the arm (preferably At heart level the left arm). Sit quietly during measurement. Press the START button 2. Press the START button. All of the All of the display display segments are displayed.
- Page 17 Taking your Blood Pressure Measurement with the Desired Systolic Pressure If re-inflation occurs repeatedly, use the following methods. If your systolic pressure is expected to exceed At heart level 230 mmHg, use this procedure. 1. Place the cuff on the arm at heart Press the START button level (preferably the left arm).
-
Page 18: What Is An Irregular Heartbeat
What is an Irregular Heartbeat An irregular heartbeat is defined as a hearbeat that varies from the average of all heartbeats. When the monitor detects an irregular rhythm during the measurements, the IHB indicator will appear on the display with the measurement values. Note: We recommend contacting your physician if you see this IHB indicator frequently. -
Page 19: Aha Classification
AHA Classification Blood Pressure Systolic Diastolic Classification (mmHg) (mmHg) Normal < 120 < 80 Elevated 120-129 < 80 Hypertension Stage 1 130-139 80-89 (High Blood Pressure) Hypertension Stage 2 ≥ 140 ≥ 90 (High Blood Pressure) HYPERTENSIVE CRISIS ≥ 180 and / or ≥... -
Page 20: About Blood Pressure
About Blood Pressure What is Blood Pressure? Blood pressure is the force exerted by blood against the walls of the arteries. Systolic pressure occurs when the heart contracts. Diastolic pressure occurs when the heart expands. Blood pressure is measured in millimeters of mercury (mmHg). One’s natural blood pressure is represented by the fundamental pressure, which is measured first thing in the morning while one is still at rest and before eating. - Page 21 About Blood Pressure Blood Pressure Variations An individual’s blood pressure varies greatly on a daily and seasonal basis. It may vary by 30 to 50 mmHg due to various conditions during the day. In hypertensive individuals variations are even more pronounced. Normally, the blood pressure rises while at work or play and falls to its lowest levels during sleep.
-
Page 22: Troubleshooting
Troubleshooting Problem Possible Reason Recommended Action Nothing Batteries are drained. Replace all batteries with new ones. appears in the display, Reinstall the batteries with negative Battery terminals are not even when and positive terminals matching those in the correct position. the power is indicated on the battery compartment. -
Page 23: Maintenance
Maintenance Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged. If you cannot fix the problem using the troubleshooting instructions, contact the authorized dealer in your area or our customer service department. A&D customer service can provide technical assistance and spare parts. -
Page 24: Technical Data
Technical Data Frequency band Band 2: 1900 MHz Band 4: 1700 MHz Band 12: 700 MHz Maximum RF output power 25 dBm (316 mW) Modulation QPSK IEC60601-1-2:2014 Operating conditions +10 to +40 °C / 15 to 85 %RH / 800 to 1060 hPa Transport/Storage -20 to +60 °C / 10 to 95 %RH / conditions... - Page 25 Technical Data FCC CAUTION You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
- Page 26 Technical Data EMD Technical Data Battery-operated or AC Adapter-operated Blood Pressure Monitor Medical Electrical Equipment needs special precautions regarding EMD and needs to be installed and put into service according to the EMD information provided in the following. Portable and mobile RF communication equipment (e.g. cell phones) can affect Medical Electrical Equipment.
- Page 27 Technical Data Phenomenon IMMUNITY TEST LEVELS Surges Line-to-line IEC 61000-4-5 ±0.5 kV, ±1 kV 3 V 0.15 MHz - 80 MHz Conducted disturbances induced by RF 6 V in ISM and amateur radio bands fields IEC 61000-4-6 between 0.15 MHz and 80 MHz 80 % AM at 1 kHz 0 % U ;...
- Page 28 Technical Data IMMUNITY Test Maximum Band Distance TEST frequency Service Modulation power (MHz) LEVEL (MHz) (V/m) 1720 GSM 1800 CDMA 1900 1845 GSM 1900 Pulse 1700 - DECT modulation 1990 LTE Band 1, 217 Hz 1970 3, 4, 25 UMTS Bluetooth WLAN 802.11 Pulse...
-
Page 29: Warranty
Warranty Limited Warranty: Smart Meter LLC warrants that this product will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to the performance of an iBloodPressure®2.0 meter that has been altered, misused, tampered with or abused in any way. - Page 30 B L O O D P R E S S U R E R E C O R D R E G I S T R O D E L A P R E S I Ó N A R T E R I A L Name/Nombre: Age/Edad: Weight/Peso:...
- Page 31 B L O O D P R E S S U R E R E C O R D R E G I S T R O D E L A P R E S I Ó N A R T E R I A L Name/Nombre: Age/Edad: Weight/Peso:...
- Page 32 Manufactured by: A&D Company, Limited 1-243 Asahi, Kitamoto-shi, Saitama-ken, 364-8585 Japan Manufactured for: Smart Meter LLC 5501 W Waters Ave, STE 401 Tampa, FL 33634 SmartMeterRPM.com © 2022 All trademarks are property of their rightful owners...
