+050004210- rel. 1.0 - 16.07.2013

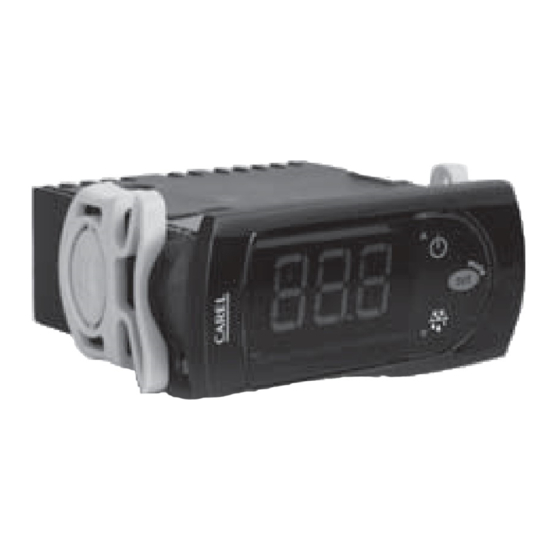

PJS6
controlli elettronici per la gestione di intervalli di temperatura / electronic controller for range temperature management
Dimensioni (mm) / Dimensions (mm)
74
81
65,29
71x29
Montaggio a pannello / Panel mounting
Frontale (con 2 viti ø 2,5x12 mm) / Front (with 2 screws ø 2,5x12 mm)
1
2
max 2,5
Da dietro (con 2 staff e posteriori) / Rear (with 2 quick-fi t side brackets)
1
2
Collegamenti elettrici / Electrical connections
-10T50
8(4)A 10(10)A
EN60730-1
250 Vac
8A 2FLA 12LRA 12A 12FLA 72LRA UL 873
NTC
PROBES
1 2 3 4 5
6 7
8
OUT1
AUX
OUT2
L
N
L
230V~
-10T50
8(4)A 10(10)A
EN60730-1
250 Vac
8A 2FLA 12LRA 12A 10FLA 60LRA UL 873
NTC
PROBES
1 2 3 4 5
6 7
8
(*)
OUT3
OUT1
OUT2
L
N
AUX
L
230V~
(*) Confi gurabile con VPM anche come FAN o SBRINAMENTO / Can also be confi gured as
FAN or DEFROST using VPM
VPM: visual parameter manager in http://ksa.carel.com - VPM: visual parameter manager
at http://ksa.carel.com
Tabella allarmi / Alarms table
Codice allarme Buzzer e relè allarme LED
Descrizione allarme
E0
attivi
ON
errore sonda 1
E1
non attivi
ON
errore sonda 2
E2
non attivi
ON
errore sonda 3
IA
attivi
ON
allarme esterno
dOr
attivi
ON
allarme porta aperta
LO
attivi
ON
allarme bassa temperatura
HI
attivi
ON
allarme alta temperatura
EE
non attivi
ON
errore parametri macchina
EF
non attivi
ON
errore parametri funzionamento
Ed
non attivi
ON
defrost fi nito per timeout
dF
non attivi
OFF
defrost in esecuzione
EtC
non attivi
ON
allarme orologio
Alarm code
buzzer and alarm relay LED
Description
E0
active
ON
probe 1 error
E1
inactive
ON
probe 2 error
E2
inactive
ON
probe 3 error
IA
active
ON
external alarm
dOr
active
ON
open door alarm
LO
active
ON
low temperature alarm
HI
active
ON
high temperature alarm
EE
inactive
ON
unit parameter error
EF
inactive
ON
operating parameter error
Ed
inactive
ON
defrost ended by timeout
dF
inactive
OFF
defrost running
EtC
inactive
ON
clock alarm
IMPORTANT WARNINGS: The CAREL product is a state-of-the-art product, whose operation is
specifi ed in the technical documentation supplied with the product or can be downloaded, even prior
to purchase, from the website www.carel.com. - The client (builder, developer or installer of the fi nal
equipment) assumes every responsibility and risk relating to the phase of confi guration the product
in order to reach the expected results in relation to the specifi c fi nal installation and/or equipment.
The lack of such phase of study, which is requested/indicated in the user manual, can cause the fi nal
product to malfunction of which CAREL can not be held responsible. The fi nal client must use the
product only in the manner described in the documentation related to the product itself. The liability
of CAREL in relation to its own product is regulated by CAREL's general contract conditions edited on the
website www.carel.com and/or by specifi c agreements with clients.
WARNING: separate as much as possible the probe and digital input signal cables from the cables
NO POWER
& SIGNAL
CABLES
carrying inductive loads and power cables to avoid possible electromagnetic disturbance. Never run
TOGETHER
READ CAREFULLY IN THE TEXT!
power cables (including the electrical panel wiring) and signal cables in the same conduits.
DISPOSAL OF THE PRODUCT: The appliance (or the product) must be disposed of separately in
accordance with the local waste disposal legislation in force.
Descrizione
PJS6* rappresenta una gamma di regolatori elettronici a microprocessore con
visualizzazione a LED realizzati per la gestione di unità frigorifere, vetrine e
banchi frigo.
Caratteristiche tecniche
alimentazione (*)
potenza nominale 3,5 VA
ingressi (*)
uscite relè (*)
10
58
3
tipo di sonda (*)
connessioni (*)
Fig. 1
montaggio (*)
visualizzazione
3
condizioni di funzionamento
condizioni di immagazzinamento
intervallo di rilevazione
grado di protezione frontale
contenitore
classifi c. secondo la protezione
contro le scosse elettriche
inquinamento ambientale
PTI dei materiali di isolamento
periodo delle sollecitazioni
Fig. 2
elettriche delle parti isolanti
categ. di resistenza al calore e al fuoco categoria D (UL94 - V0)
immunità contro le sovratensioni
tipo di azione e disconnessione
n.ro di cicli di manovra delle
operazioni automatiche relè (*)
classe e struttura del software
pulizia dello strumento
lunghezza max. cavi
Avvertenza: non passare cavi di potenza a meno di 3 cm dalla parte inferiore del dispositivo o dalle sonde; per le
Fig. 3
connessioni usare solo cavi di rame.
(*) Le caratteristiche indicate si diff erenziano a seconda del modello.
(**) T OFF minimo tra due start motore deve essere maggiore di 60 s.
LED e funzioni associate
Icona Funzione
SERIAL
CONV
compressore acceso
PROG.
KEY
ventola
9 10 11
defrost
AUX aux / heater uscita accesa
allarme
or
Fig. 4
orologio
SERIAL
CONV
Tabella attivazione funzioni tramite i tasti
PROG.
KEY
Tasto
9 10 11
pressione del singolo tasto
più di 3 s: alterna stati ON/OFF
più di 3 s: attiva/disattiva defrost
or
Fig. 5
- 1 s.: visualizza/permette di impostare set point
- più di 3 s: accesso menù impostazione parametri
(inserire password '22')
- Tacita allarme acustico (buzzer)
Impostazioni del set point (valore di temperatura desiderato)
• premere per 1 s SET, dopo alcuni istanti il valore impostato per St1 lampeggia;
Parametri coinvolti
• aumentare o diminuire tale valore con UP o DOWN;
-
• premere SET per confermare il nuovo valore.
[d0 = 0 / 1]
Se abilitato il set point2 (H6=1),
[A4=10]
• tenendo premuto SET, dopo alcuni istanti il valore impostato per St2 lampeggia;
[A4 = 1] [+A7]
• aumentare o diminuire tale valore con UP o DOWN;
[A4 = 7/8][+A7]
[AL] [Ad]
• premere SET per confermare il nuovo valore.
[AH] [Ad]
-
ON/OFF dello strumento
-
Premere per più di 3 s UP. In questa condizione gli algoritmi di regolazione e
[dP] [dt] [d4] [A8]
[d6=0]
defrost sono disabilitati e lo strumento alterna la visualizzazione a display del
se fasce attive
messaggio "OFF" a quella della temperatura della sonda impostata.
Parameters involved
Sbrinamento manuale
-
Premere per più di 3 s DOWN (si attiva solo se sussistono le condizioni di
[d0 = 0 / 1]
[A4=10]
temperatura).
[A4 = 1] [+A7]
[A4 = 7/8][+A7]
Accesso e modifi ca parametri tipo F (frequenti) e tipo C
[AL] [Ad]
(confi gurazione)
[AH] [Ad]
1. premere SET per 3 s (sul display comparirà "PS");
-
-
2. - per accedere al menù parametri di tipo F e C digitare la password "22" con
[dP] [dt] [d4] [A8]
UP/DOWN;
[d6=0]
- per accedere solo al menù parametri F premere SET (senza digitare la password);
if bands active
3. navigare all'interno del menù parametri con UP/DOWN;
Tab. 1
4. per visualizzare/modifi care i valori del parametro visualizzato premere SET,
quindi UP/DOWN ed infi ne SET per confermare la modifi ca (si ritorna così al
menù dei parametri).
Per salvare defi nitivamente tutti i valori modifi cati ed uscire dal menù parametri
premere SET per 3 s;
Per uscire dal menù senza salvare i valori modifi cati (uscita per time out) non
premere alcun tasto per almeno 60 s.
NORMATIVE DI SICUREZZA - conforme alle Normative europee in materia.
Precauzioni d'installazione:
• i cavi di collegamento devono garantire l'isolamento fi no a 90 °C;
• per le versioni 12 Vac utilizzare trasformatori Classe II. Per il rispetto delle normative EN 61000-4-4, EN 61000-4-5, EN 61000-4-11,
EN 61000-4-6, EN 60730-1, il trasformatore deve essere uno dei modelli indicati (vedi Listino Prezzi CAREL). Per le versioni 12 Vac/
dc, non essendo possibile garantire il doppio isolamento tra i connettori di alimentazione e le uscite relè, si raccomanda di utilizzare
carichi alimentati solamente in bassissima tensione di sicurezza (fi no a 42 V nominali di valore effi cace);
• prevedere almeno 10 mm di distanza tra il contenitore e parti conduttive vicine;
• collegamenti degli ingressi digitali e analogici inferiori a 30 m di distanza; adottare le adeguate misure di separazione dei cavi
per il rispetto delle normative suddette.
• Bloccare bene i cavi di connessione delle uscite per evitare contatti con parti in bassissima tensione di sicurezza
230 Vac +10 /-15% 50/60 Hz; 115 Vac +10 /-15% 50/60 Hz
12 Vac +10/-15% 50/60 Hz classe 2; 12 Vdc +10/-20% classe 2
sonda NTC o PTC 1 o 3 ingressi
ingresso digitale in alternativa a terza sonda
relè 2 Hp
UL: 12 A Res. 12 FLA 72 LRA - 240 Vac (***),
UL: 12 A Res. 10 FLA 60 LRA - 240 Vac (****)
EN60730-1: 10(10) A 250 Vac (**)
relè 16 A
UL: 12 A Res. 5 FLA 30 LRA - 240 Vac C300,
EN60730-1: 12(2) A NO/NC, 10(4) A fi no 60 °C NO,
2(2) A CO - 250 Vac
relè 8 A
UL: 8 A Res. 2 FLA 12 LRA - 240 Vac C300,
EN60730-1: 8(4) A NO, 6(4) A NC, 2(2) A CO - 250 Vac
NTC Std CAREL 10 KΩa 25 °C, PTC Std CAREL 985 Ω a 25 °C
2
- morsetti fi ssi a vite per cavi con sez. da 0,5 mm
a 1,5 mm
- morsetti estraibili per blocchetti a vite o con contatto a
2
crimpare (sez. cavo fi no a 2,5 mm
).
- corrente nominale massima per morsetto 12 A.
per terminale: mediante viti dal frontale o con staff e posteriori
display LED 3 cifre con segno (-199...999) e punto decimale;
sei LED di stato
-10T50 °C - umidità <90% U.R. non condensante
-20T70 °C - umidità <90% U.R. non condensante
-50T90 °C (-58T194 °F) - risoluzione 0,1 °C/°F
montaggio a quadro con guarnizione: IP65 tipo 1
terminale plastico, 81x36x65 mm
classe II per incorporamento adeguato
normale
250 V
lungo
categoria 1
contatti relè 1C
EN60730-1: 100.000 operazioni
UL:
30.000 operazioni (250 Vac)
classe A
utilizzare esclusivamente detergenti neutri ed acqua
seriale: 1 km, sonde: 30 m, relè: 10 m
(***) solo per i modelli PJS6 (M, S, X)*
(****) solo per i modelli PJS6(C, Y)*
Normale funzionamento
ON
OFF
blink
spento
richiesto ON
acceso
spento
richiesto ON
acceso
spento
richiesto ON
uscita spenta
-
tutti
nessun allarme
-
RTC presente e
RTC assente o disabilit.;
-
abilitato, ed è stata
oppure non è stata
impostata almeno
impostata nemmeno
una fascia oraria
una fascia oraria
Normale funzionamento
Start up
-
Premuti
per 1 s
insieme
visualizza cod.
attivano
vers. fi rmware
per 1 s RESET
procedura
banco EZY
RESET
corrente
parametri
Description
PJS6* is a range of electronic microprocessor controllers with LED display,
designed to manage refrigeration units, showcases and cabinets.
Technical specifi cations
power supply (*) 230 Vac +10 /-15% 50/60 Hz; 115 Vac +10 /-15% 50/60 Hz
12 Vac +10/-15% 50/60 Hz class 2; 12 Vdc +10/-20% class 2
rated power
3,5 VA
inputs (*)
NTC or PTC probes 1 or 3 inputs.
Digital input as alternative to third probe
relay outputs (*)
relay 2 Hp
UL: 12 A Res. 12 FLA 72 LRA - 240 Vac (***),
UL: 12 A Res. 10 FLA 60 LRA - 240 Vac (****)
EN60730-1: 10(10) A 250 Vac (**)
relay 16 A
UL: 12 A Res. 5 FLA 30 LRA - 240 Vac C300,
EN60730-1: 12(2) A NO/NC, 10(4) A up to 60 °C NO,
relay 8 A
UL: 8 A Res. 2 FLA 12 LRA - 240 Vac C300,
EN60730-1: 8(4) A NO, 6(4) A NC, 2(2) A CO - 250 Vac
type of probe (*)
NTC Std CAREL 10 KΩa 25 °C, PTC Std CAREL 985 Ω a 25 °C
connections (*)
- screw terminals for cables with cross-sect. from 0.5 mm
2
- Plug-in terminals for screw blocks or with crimped contact (cable
cross-sect. up to 2.5 mm
- Rated maximum current per terminal 12 A.
assembly (*)
terminal: using screws from the front panel or with rear brackets.
display
3 digit LED display with sign (-199 to 999) and decimal point;
six status LEDs
operating conditions
storage conditions
range of measurement
front panel index of protection
case
front panel index of protection
environmental pollution
PTI of the insulating material
period of stress across the insulating
parts
category of resist. to heat and fi re
immunity against voltage surges
type of action and disconnection
no. of relay automatic operating
cycles (*)
software class and structure
cleaning the instrument
cable max. lenght
Warning: do not run the power cable less than 3 cm from the bottom part of the device or from the probes; for
Tab. 2
the connections only use copper wires.
(*) The features indicated diff er according to the model.
(**) T OFF min. time between two starts of the motor must be greater than 60 s. (****) only for PJS6 (C, Y)*
LEDs and associated functions
Icon Function
ON
Start up
compressor
ON
fan
ON
defrost
ON
AUX aux / heater output on
alarm
all
ON
clock
RTC fi tted and
ON
enabled, at least a
ON se RTC
time band set
presente
Table of functions activated by the buttons
Tab. 4
Button
Normal operation
pressing the button alone
more than 3 s: toggle ON/OFF
more than 3 s: start/stop defrost
- 1 s.: display/set the set point
- more than 3 s: access parameter setting menu
(enter password '22')
- mute audible alarm (buzzer)
Setting the set point (desired temperature value)
Tab. 5
• press SET for 1 s, after a few moments the value set for St1 fl ashes;
• increase or decrease the value using UP or DOWN;
• press SET to confi rm the new value.
If set point 2 is enabled (H6=1),
• press and hold SET, after a few moments the value set for St2 fl ashes;
• increase or decrease this value using UP or DOWN;
• press SET to confi rm the new value.
Switching the device ON/OFF
Press UP for more than 3 s. The control and defrost algorithms are now disabled
and the instrument displays the message "OFF" alternating with the temperature
read by the set probe.
Manual defrost
Press for DOWN more than 3 s (the defrost starts only the temperature conditions
are valid)
Access and setting type F (frequent) and type C (confi guration)
parameters
1. press SET for 3 s (the display will show "PS");
2. - to access the type F and C parameter menu, enter the password "22" using
UP/DOWN;
- to access the F parameter menu only, press SET (without entering the
password);
3. scroll inside the parameter menu using UP/DOWN;
4. - to display/set the values of the parameter displayed, press SET, then UP/
DOWN and fi nally SET to confi rm the changes (returning to the parameter
menu).
To save all the new values and exit the parameter menu, press SET for 3 s;
To exit the menu without saving the changed values (exit by timeout) do not
press any button for at least 60 s.
SAFETY STANDARDS - compliant with the relevant European standards.
Installation precautions:
• the connection cables must guarantee insulation up to 90 °C;
• for 12 Vac versions use Class II transformers. To ensure compliance with the immunity standards (surge), the transformer must
be one of the models specifi ed (see the CAREL price list). For the 12 Vac/dc versions, as double insulation cannot be guaranteed
between the power supply and the relay outputs, only use safety low voltage loads (up to 42 V eff ective rated value);
• ensure a space of at least 10 mm between the case and the nearby conductive parts;
• digital and analogue input connections less than 30 m away; adopt suitable measures for separating the cables so as to ensure
compliance with the immunity standards;
• Secure the connection cables of the outputs so as to avoid contact with very low voltage parts.
.
2(2) A CO - 250 Vac
2
to 1.5 mm
2
.
2
).
-10T50 °C - humidity <90% rH non-condensing
-20T70 °C - humidity <90% rH non-condensing
-50T90 °C (-58T194 °F) - resolution 0.1 °C/°F
panel installation with IP65 type 1 gasket
plastic terminal, 81x36x65 mm
class II when suitably integrated
normal
250 V
long
category D (UL94 - V0)
category 1
1C relay contacts
EN60730-1: 100.000 operations
UL:
30.000 operations (250 Vac)
class A
Only use neutral detergents and water.
serial: 1 km, probes: 30 m, relay: 10 m
Tab. 2
(***) only for PJS6 (S, X)* models
Normal operation
Start up
OFF
blink
OFF
request ON
OFF
request ON
OFF
request ON
output off
-
ON
no alarm
-
ON
RTC not fi tted or
-
ON if RTC
disabled, not even a
fi tted
time band set
Tab. 4
Start up
-
Pressed
for 1 s display
together start
fi rmware vers.
parameter
code
for 1 s RESET
RESET
current EZY set
procedure
Tab. 5

Advertisement

loading
Need help?

Need help?

Do you have a question about the PJS6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carel PJS6

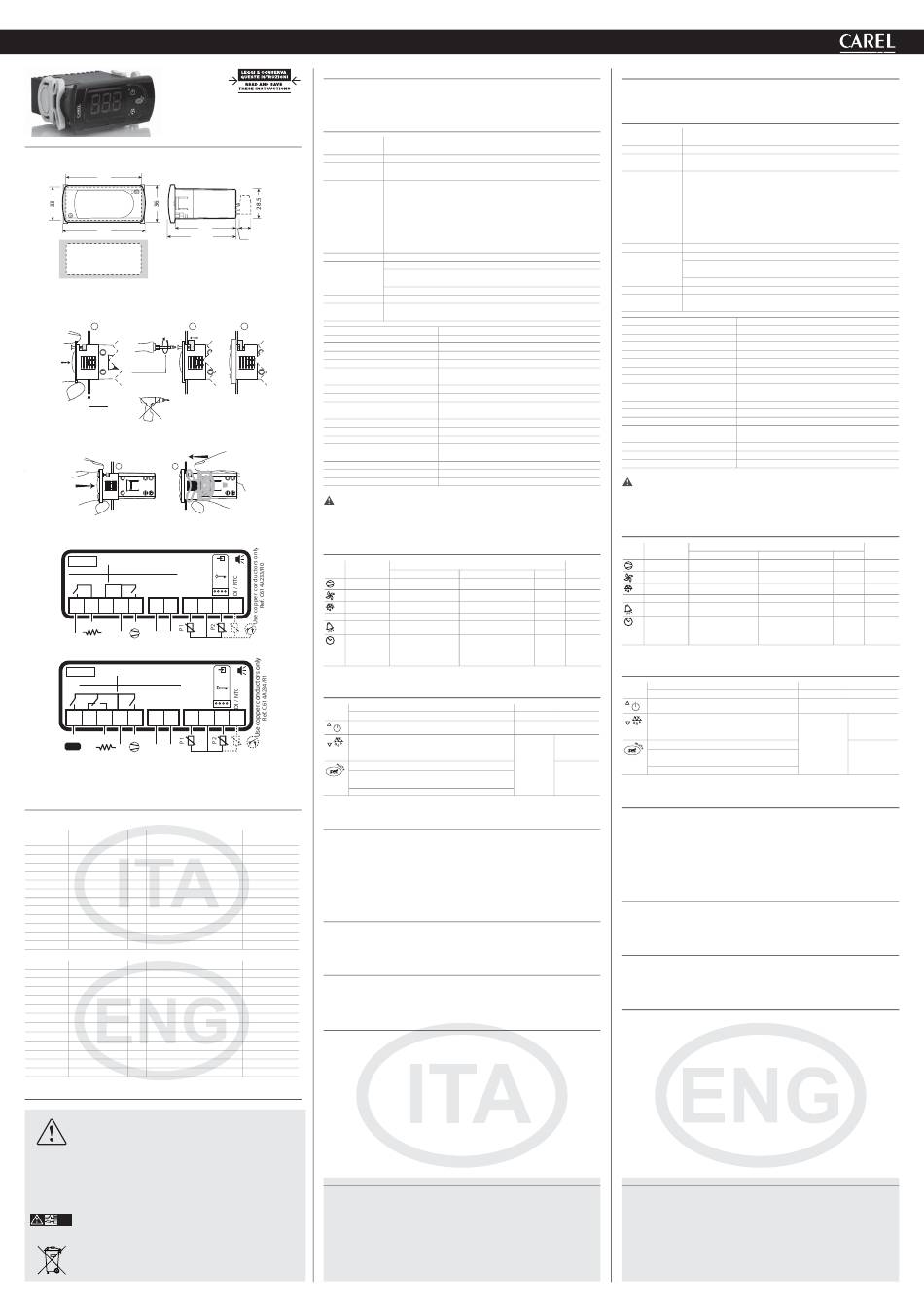

  • Page 1 (***) only for PJS6 (S, X)* models Fig. 3 (**) T OFF min. time between two starts of the motor must be greater than 60 s. (****) only for PJS6 (C, Y)* connessioni usare solo cavi di rame. (*) Le caratteristiche indicate si diff erenziano a seconda del modello.
  • Page 2 H6 Abilitazione Setpoint2 / Enable set point 2 CAREL reserves the right to modify the features of its products without prior notice. CAREL INDUSTRIES si riserva la possibilità di apportare modifi che o cambiamenti ai propri prodotti senza alcun preavviso CAREL Industries HQs Via dell’Industria, 11 - 35020 Brugine - Padova (Italy)
