- Page 1 Open Energy for All Single-phase Microinverter USER MANUAL DTU-WLite Region: Europe V202204 hoymiles.com...
-
Page 2: Table Of Contents
3.4 Interface Layout 3.5 Local Installation Assistant 3.6 System Installation Sequence 3.7 DTU Installation Procedure 4. Site Creation on S-Miles Cloud (Hoymiles Monitoring Platform) 5. Customer Login 6. Complete Installation Map 7. Browse the Web-Based Plant 8. View Phone App 9. -
Page 3: Important Safety Information
• Note that only professionals may install or replace DTU. • Do not try to repair the DTU without approval from Hoymiles. If the DTU is damaged, send the DTU back to your installer for repairing/replacement. Disassembling the DTU without approval from Hoymiles will invalidate the remaining warranty period. -

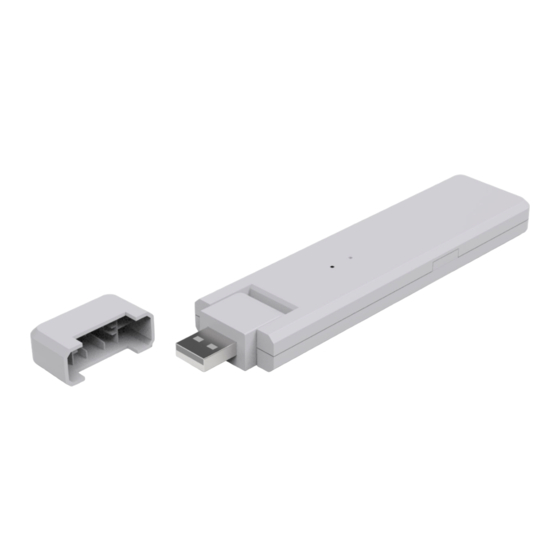

Page 4: About Hoymiles Microinverter System
The DTU The DTU is a key component in the Hoymiles microinverter system. It works as the communication gateway between the Hoymiles microinverters and the S-Miles Cloud (Hoymiles Monitoring Platform). The DTU communicates wirelessly with the microinverters via 2.4 GHz Proprietary RF (Nordic), and collects the operation data of the system. -
Page 5: Dimensions
The Local Installation Assistant is a new function integrated with the DTU-WLite. Download the Installer App (for installer/distributor use only) before use. The DTU-WLite is improved over the previous generations of DTU product, and is developed with this new function that allows the installer to: Complete the Wi-Fi configuration in one step. -
Page 6: Dtu Installation Procedure
Refer to the microinverter’s Manual or Quick Installation Guide for detailed installation steps. 2) Locate the DTU The maximum communication distance of Hoymiles DTU is 150 m in open space. The walls, roofs, or other obstacles in between will affect the signal and reduce the communication distance in actual installations. - Page 7 Use the smartphone/tablet to open the Installer App and login. Locate “Me” on the bottom of the page and select “Network Config”. Input the house router’s network name and password, then press “Send to DTU” to complete the Wi-Fi configuration. © 2022 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 8: Site Creation On S-Miles Cloud (Hoymiles Monitoring Platform)
4. Site Creation on S-Miles Cloud (Hoymiles Monitoring Platform) Install the Hoymiles Installer App by searching “Hoymiles” at App Store (iOS) or Google Play (Android). Open the app and log in with your installer account name and password. If you are a new installer with Hoymiles, apply for an installer account from your distributor in advance. -
Page 9: Complete Installation Map
Peel the serial number label from the DTU and place it on the installation map. Data Transfer Unit Model: DTU-WLite Input: 5V Made in China Complete the system information of the installation map as shown below. © 2022 Hoymiles Power Electronics Inc. All rights reserved. -
Page 10: Browse The Web-Based Plant
Single-phase Microinverter User Manual 7. Browse the Web-Based Plant You can view the inverter’s real-time operating details on the computer web page by accessing the S-Miles Cloud (Hoymiles Monitoring Platform) at https://world.hoymiles.com. © 2022 Hoymiles Power Electronics Inc. All rights reserved. -
Page 11: View Phone App
8. View Phone App Download the mobile phone app by searching “Hoymiles” at App Store (iOS) or Google Play (Android) and log in with the customer/installer account name and password, after which you will be able to view the operating details of all installed microinverters there. -
Page 12: Led Indicator Working Status Description
1. Connected to Wi-Fi, and the blue indicator lights up, then you can build the plant. 2. Cannot connect to Wi-Fi, and the indicator alternates red and blue flashes, then you need to connect the DTU to the Wi-Fi again. © 2022 Hoymiles Power Electronics Inc. All rights reserved. -
Page 13: Datasheet
-20 to 55 Dimensions (W × H × D mm) 143 × 33 × 12.5 Weight (kg) Fixed method Direct power supply Indicator light Others Standard EN 60950 EN 61000-3-2 EN 61000-3-3 © 2022 Hoymiles Power Electronics Inc. All rights reserved.
