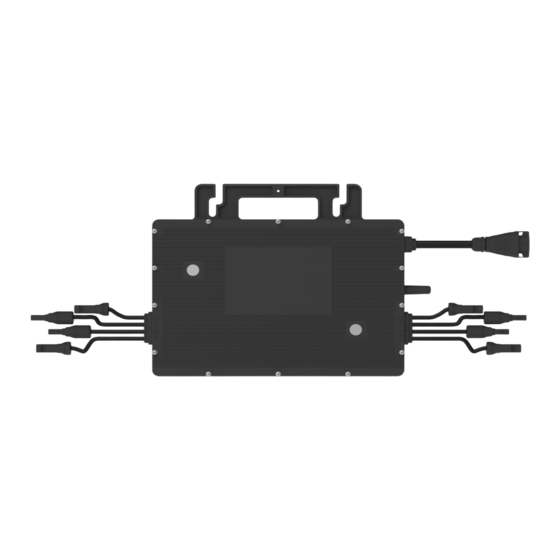

- Page 1 Open Energy for All Three-phase Microinverter USER MANUAL HMT-1600-4T HMT-1800-4T HMT-2000-4T Region: EMEA & APAC V202303 hoymiles.com...
- Page 2 Other Information Product information is subject to change without notice. User manual will be updated regularly, so please refer to Hoymiles official website at www.hoymiles.com for the latest version. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 3: Table Of Contents
7. Decommission 7.1 Decommission 7.2 Storage and Transportation 7.3 Disposal 8. Technical Data 9. Appendix 1: 9.1 Installation Map 10. Appendix 2: 10.1 WIRING DIAGRAM – 230VAC / 400VAC THREE PHASE: © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 4: Important Notes
“1600” means 1600 W. “1800” means 1800 W, “2000” means 2000 W. • HMT-1600/1800/2000-4T is only compatible with Hoymiles gateway DTU-Pro-S and DTU-Lite-S. 1.2 Target Group This manual is only for qualified technicians. For safety purposes, only those who have been trained or demonstrate relevant skills can install and maintain this microinverter under the guidance of this document. -
Page 5: About Safety
All repairs must be done with qualified spare parts which must be installed in accordance with their intended use and by a licensed contractor or authorized Hoymiles service representative. • Liabilities arising from components that are not produced by Hoymiles are on the part of their re- spective manufacturers. •... -
Page 6: Explanation Of Symbols
CE mark The inverter complies with the Low Voltage Directive for the European Union. Read manual first Please read the installation manual first before installation, operation and main- tenance. © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 7: About Product
The Hoymiles HMT-2000-4T series microinverters are equipped with module-level monitoring, which collects microinverter data wirelessly and sends it to the Hoymiles monitoring platform, S-Miles Cloud. The HMT-2000-4T microinverter’s MPPT circuit is less susceptible to partial shading. With dual MPPT, the other MPPT can operate the unshaded string at maximum efficiency point when one MPPT fails or is shaded, ensuring the inverter delivers optimum performance under different partial shading situations. -
Page 8: About 4-In-1 Unit
Sub-1G Microinverter This manual is about Hoymiles 4-in-1 microinverter. With the output power up to 2000 VA, Hoymiles new HMT-2000 series rank among the highest for 4-in-1 microinverters. Each microinverter connects to four PV modules at most with module-level MPPT and monitoring, enabling greater energy harvest and easier maintenance. -
Page 9: Terminals Introduction
Three-phase Microinverter HMT-1600/1800/2000-4T About Product / Installation Preparation 3.6 Terminals Introduction Object Description DC Connectors Sub-1G Wireless Terminal AC Sub Connector 3.7 Dimensions (mm) 216.8 © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 10: Installation Preparation
The voltage of modules (considering the effect of local temperature) must not exceed the maximum input voltage of the microinverter. Otherwise, the microinverter may be damaged (refer to the Technical Data section to determine the absolute maximum input voltage). © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 11: Installation Tools
Hoymiles HMT-1600-4T/HMT-1800-4T/HMT-2000-4T can be used with 12AWG or 10AWG AC Trunk Cable and the AC Trunk Connector which are provided by Hoymiles. The number of microinverters on each 12AWG or 10AWG AC branch shall not exceed the limit as shown below. -
Page 12: Precautions
Install only on structures specifically designed for PV modules (supplied by installation technicians). • Install microinverter underneath PV modules to make sure it works in the shadow. Nonobservance may cause the derating of inverter production. © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 13: Microinverter Installation
Mounting Torque : 9 N·m B ) Fix the screws on the rail. C ) Hang the microinverter (label side up) on the screws and beneath the PV module. Then tighten the screws. © 2023 Hoymiles Power Electronics Inc. All rights reserved. - Page 14 B ) Take out segments of AC Trunk Cable as you need to make AC branch. 1 ) Disassemble the AC Trunk Connector and remove the cable. - Use the 3P-AC Trunk Connector Unlock Tool to unlock the connector upper cover. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 15 Trunk connectors. D ) Attach the 3P-AC Trunk Cable to the mounting rail and fix the cable with tie wraps. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
- Page 16 Refer to the “DTU User Manual”, “DTU Quick Installation Guide”, and “Quick Installation Guide for S-Miles Cloud” to install the DTU and set up the monitoring system. Product information is subject to change without notice. (Please download reference manuals at www.hoymiles.com) © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 17: Troubleshooting
1.Check if the grid configuration parameter is correct and upgrade again. Grid configuration parameter error 2. If the fault still exists, contact your dealer or Hoymiles technical support. 1. If the alarm occurs accidentally and the microinverter can still work normally, no special treatment is required. - Page 18 Island detected station, contact the local power operator to check whether there is a grid island. 3.If the alarm still exists, contact your dealer or Hoymiles technical support. Abnormal phase Please check that the wiring of each phase is completely correct. This difference between phase fault is usually caused by the wrong phase.
- Page 19 1. If the alarm occurs accidentally and the microinverter can still work normally, no special treatment is required. Hardware Error Code 311 2. If the alarm occurs frequently and cannot be recovered, contact your dealer or Hoymiles technical support. © 2023 Hoymiles Power Electronics Inc. All rights reserved.
-
Page 20: Led Indicator Status
• All the faults are reported to the DTU. Refer to the local DTU app or Hoymiles Monitoring Platform for more information. © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 21: On-Site Inspection (For Qualified Installers Only)
Make sure that PV modules’ DC voltage is within the allowable range shown in the Technical Data section of this manual. If the problem persists, please call Hoymiles customer support. Do not try to repair the microinverter by yourself. If the troubleshooting fails, please return it to the factory for replacement. -
Page 22: Microinverter Replacement
“Device List” page and find the device that you just replaced. Please click “Device Maintenance” on the right side of the page, and select “Replace Device”. Input the new microinverter’s SN and click “Ok” to complete the station change. © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 23: Decommission
5 kg and can be fully closed. 7.2 Storage and Transportation Hoymiles packages are specially designed to protect components so as to facilitate transportation and subsequent handling. Transportation of the equipment, especially by road, must be done in a way that can protect the components (particularly the electronic components) from violent shocks, humidity, vibration, etc. -
Page 24: Technical Data
Three-phase Microinverter HMT-1600/1800/2000-4T Technical Data 8. Technical Data Be sure to verify the following before installing Hoymiles Microinverter System. 1. Verify that the voltage and current specifications of the PV module match those of the microinverter. • The maximum open circuit voltage rating of the PV module must be within the operating voltage range of the microinverter. -
Page 25: Appendix
Three-phase Microinverter HMT-1600/1800/2000-4T 9. Appendix 1: 9.1 Installation Map © 2023 Hoymiles Power Electronics Inc. All rights reserved. -
Page 26: Appendix
Three-phase Microinverter HMT-1600/1800/2000-4T 10. Appendix 2: 10.1 WIRING DIAGRAM – 230VAC / 400VAC THREE PHASE: © 2023 Hoymiles Power Electronics Inc. All rights reserved.
