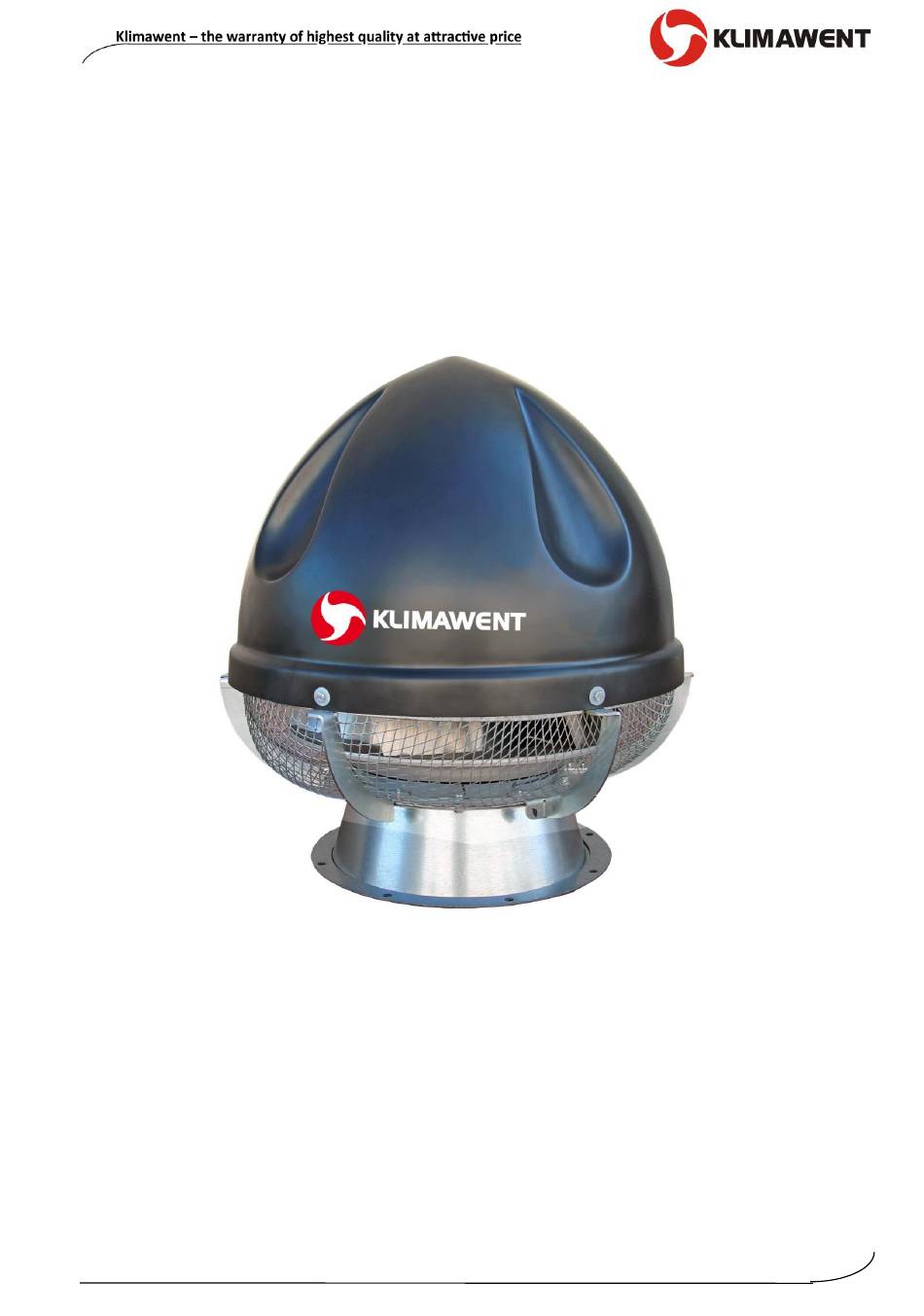

- Page 1 Use and Maintenance Manual SMART-EC-6200 Roof Fans 25.01.2019 Roof Fans SMART-EC-6200...
-
Page 2: Table Of Contents
Assembly and Start-up ................ 6 Operational Use .................. 8 Troubleshooting Guide ................ 9 Maintenance ..................9 Occupational Health and Safety ............9 Transport and Storage ................ 10 Terms of warranty ................10 Sample of the Declaration of Conformity ..........11 Roof Fans SMART-EC-6200 25.01.2019... -
Page 3: Introductory Remarks
1. Introductory Remarks The purpose of the present Use and Maintenance Manual is to supply User with directions wi- thin the range of application, installation, start-up and the operational use of the SMART-EC-6200 Roof Fans . Installing, start up and operational use are exclusively admissible after getting acquaint- ted with the contents of the Use and Maintenance Manual. -
Page 4: Application
2. Application SMART-EC-6200 roof fans are meant for general ventilation of buildings. They are designed for conveying the dry dust of maximum temperature +40C and dustiness not exceeding 0,3 g/m³ The devices cannot be applied in atmosphere containing viscous, aggressive contaminants, or in atmosphere that create explosion hazard. -
Page 5: Structure And Function
Flow Chart 5. Structure and Function SMART-EC-6200 fans feature an original construction of bent steel profiles, making up a ske- leton of streamline and robust properties. Inside is located a motor with a radial impeller. Lower skeleton is constructed of steel rods, forming a housing through which the air is expelled. -
Page 6: Assembly And Start-Up
Fig. No.1 – Structure and dimensions of the fan SMART-EC-6200 6. Assembly and Start-up SMART-EC-6200 fans are meant for work outside the buildings. It is recommended to install them on roof bases or wall brackets (delivery on separate order). To reduce the noise level, it is advised to apply sound absorbing roof bases. After the fan is placed on a roof base, it is important to screw up thoroughly all the mounting bolts between the fan flan- ge connection and the roof base. - Page 7 Prior to the startup of the fan check following aspects: – nominal voltage of the supply system and of the motor, – correct and durable connection of the PE protective cable, – installing of correct protection within the supply circuit system. 25.01.2019 Roof Fans SMART-EC-6200...
-
Page 8: Operational Use
Typical disturbances and their reasons are exposed in the Section 8 of the pre- sent Use and Maintenance Manual. Roof Fans SMART-EC-6200 25.01.2019... -
Page 9: Troubleshooting Guide
(IS), which should be ordered and installed by User . Isolating switch ought to be installed within reach of the servicer. Isolating switches (IS) are offered by KLIMAWENT S.A. as additional accessory. The way of con- nection is shown in the operation manual of the insolating switch (IS). -
Page 10: Transport And Storage
● damages being entailed during the improper transport, storage or incorrect maintenance. Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance Ma- nual and especially modifications undertaken by User on one’s own shall cause the loss of warranty validity. Roof Fans SMART-EC-6200 25.01.2019... -
Page 11: Sample Of The Declaration Of Conformity
Declaration of conformity EC No. …………….. Manufacturer (eventually the authorized representative / importer): name: KLIMAWENT S.A. address: 81-571 Gdynia, Chwaszczyńska 194 A person, authorized for issuing the technical documentation: Teodor Świrbutowicz, KLIMAWENT S.A. hereby declares that the appliance: name: Roof Fan... - Page 12 Producer: KLIMAWENT S.A. 81-571 Gdynia, ul. Chwaszczyńska 194 tel. 058 629 64 80 fax 058 629 64 19 e-mail: klimawent@klimawent.com.pl www.klimawent.com.pl 812W83 SMART-EC-6200 25.01.2019/EN Roof Fans SMART-EC-6200 25.01.2019...
