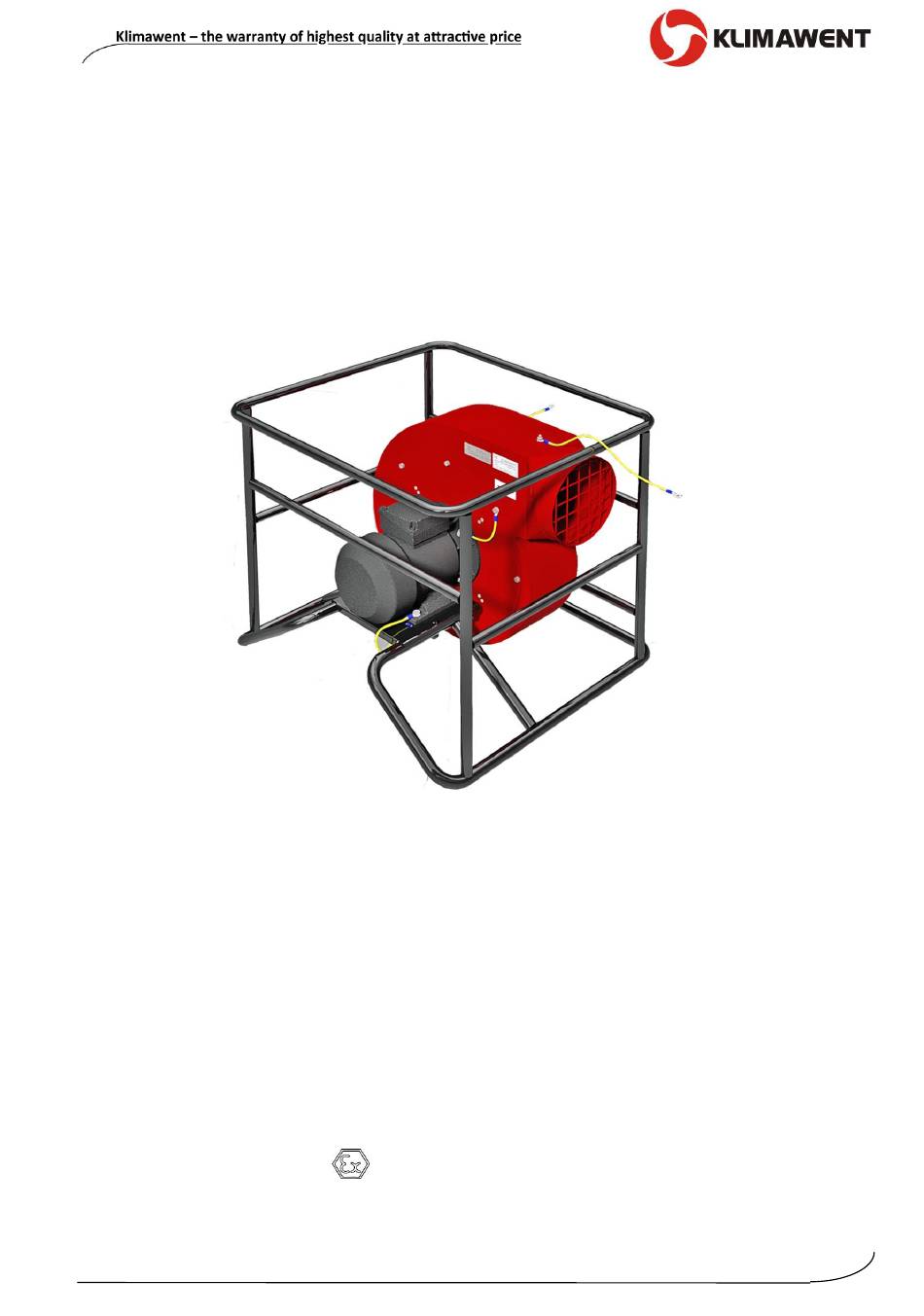

- Page 1 Use and Maintenance Manual Explosion proof portable fan WPA-P-N/Ex II 2 G c Ex e II T3 ATEX marking: 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex...
-
Page 2: Table Of Contents
Structure and Function............... 7 Assembly and Start-up ................ 7 Operational Use .................. 10 Troubleshooting Guide ................ 11 Maintenance ..................12 Occupational Health and Safety ............12 Transport and Storage ................ 13 Terms of warranty ................13 Explosion proof stationary fan WPA-P-N/Ex 07.02.2017... -
Page 3: Introductory Remarks
The construction of the WPA-P-N/Ex explosion proof portable fans meets the require-ments of the current state of technology and the safety and health assurances included in: ... -
Page 4: Application
– 2. Application WPA-P-N/Ex explosion proof portable fans are intended for use in areas of explosion risk, where explosive atmosphere, {i.e. mixture of flammable substances in form of gas and vapour with the air, whereby (after ignition), the burning mass would expand within the whole non-burning mixture} can occur. -
Page 5: Reservations Of Producer
77/67* 7400 2600 * Acoustic pressure levels have been measured with the TK L=500 silencer attached at the fan inlet and outlet. ** Fan motors are not adapted for cooperation with rotational speed governors. 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex... - Page 6 Fig. No.1 – Structure and dimensions of the fans WPA-P-N/Ex Table No.2 – Dimensions of the fans Type o the fan A [mm] B [mm] D [mm] E [mm] X [mm] Y [mm] H [mm] WPA-6-P-N/Ex WPA-8-P-N/Ex WPA-10-P-N/Ex Fig. No.2 – Flow charts of the fans type WPA-P-N/Ex Explosion proof stationary fan WPA-P-N/Ex 07.02.2017...
-
Page 7: Structure And Function
Prior to connection, make sure if the parameters of the existing installation is according to corresponding parameters on the nominal data plate. 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex... - Page 8 (placed on the cover of the motor terminal box). Fig. No.3 – Connection diagram of the fan WPA-P-N/Ex Explosion proof stationary fan WPA-P-N/Ex 07.02.2017...
- Page 9 After the device is started up – check if the impeller rotation sense is according to the arrow on the housing. If this is not the case, change the phase connection sequence in the motor terminal box, at the side of power supply. 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex...
-
Page 10: Operational Use
(of the motor) exceeds +40C. Consequences of incorrect use: – damage of the bearings, – damages caused by corrosion, – loss in balance of the rotating elements, – vibrations, – deformations, – damages caused by friction. Explosion proof stationary fan WPA-P-N/Ex 07.02.2017... -
Page 11: Troubleshooting Guide
5. Noisy work of the fan Incorrect impeller rotation sense. Change the impeller rota- along with small volume flow tions, by swapping the efficiency. phase sequence. 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex... -
Page 12: Maintenance
The fan motor must be protected from short-circuit- and overload effects. In the course of operational use, examine the connection to the PE protective cable. Explosion proof stationary fan WPA-P-N/Ex 07.02.2017... -
Page 13: Transport And Storage
Infringement of the Section 3 “Reservations of Producer” of the present Use and Main- tenance Manual and especially modifications undertaken by User on one’s own shall cause the loss of warranty validity. 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex... - Page 14 Explosion proof stationary fan WPA-P-N/Ex 07.02.2017...
- Page 15 NOTES: 07.02.2017 Explosion proof stationary fan WPA-P-N/Ex...
- Page 16 Producer: KLIMAWENT S.A. 81-571 Gdynia, ul. Chwaszczyńska 194 tel. 058 629 64 80 fax 058 629 64 19 e-mail: klimawent@klimawent.com.pl www.klimawent.com.pl 888W16 WPA-6-P-N/Ex 07.02.2017/EN 888W17 WPA-8-P-N/Ex 07.02.2017/EN 888W18 WPA-10-P-N/Ex 07.02.2017/EN Explosion proof stationary fan WPA-P-N/Ex 07.02.2017...
