Klimawent WPA-3-P-1-N Use And Maintenance Manual

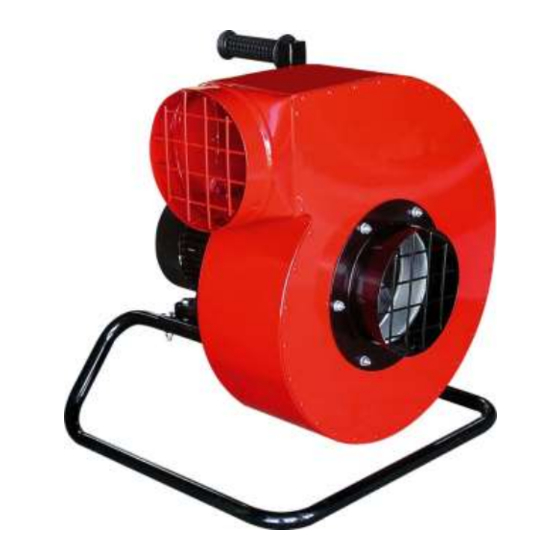

Wpa-p-n portable radial fans
Hide thumbs
Table of Contents

Advertisement

Quick Links

1
Use and Maintenance Manual
WPA-P-N
Portable radial fans
27.09.2016
Portable radial fans WPA-P-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WPA-3-P-1-N and is the answer not in the manual?

Questions and answers

Related Manuals for Klimawent WPA-3-P-1-N

Summary of Contents for Klimawent WPA-3-P-1-N

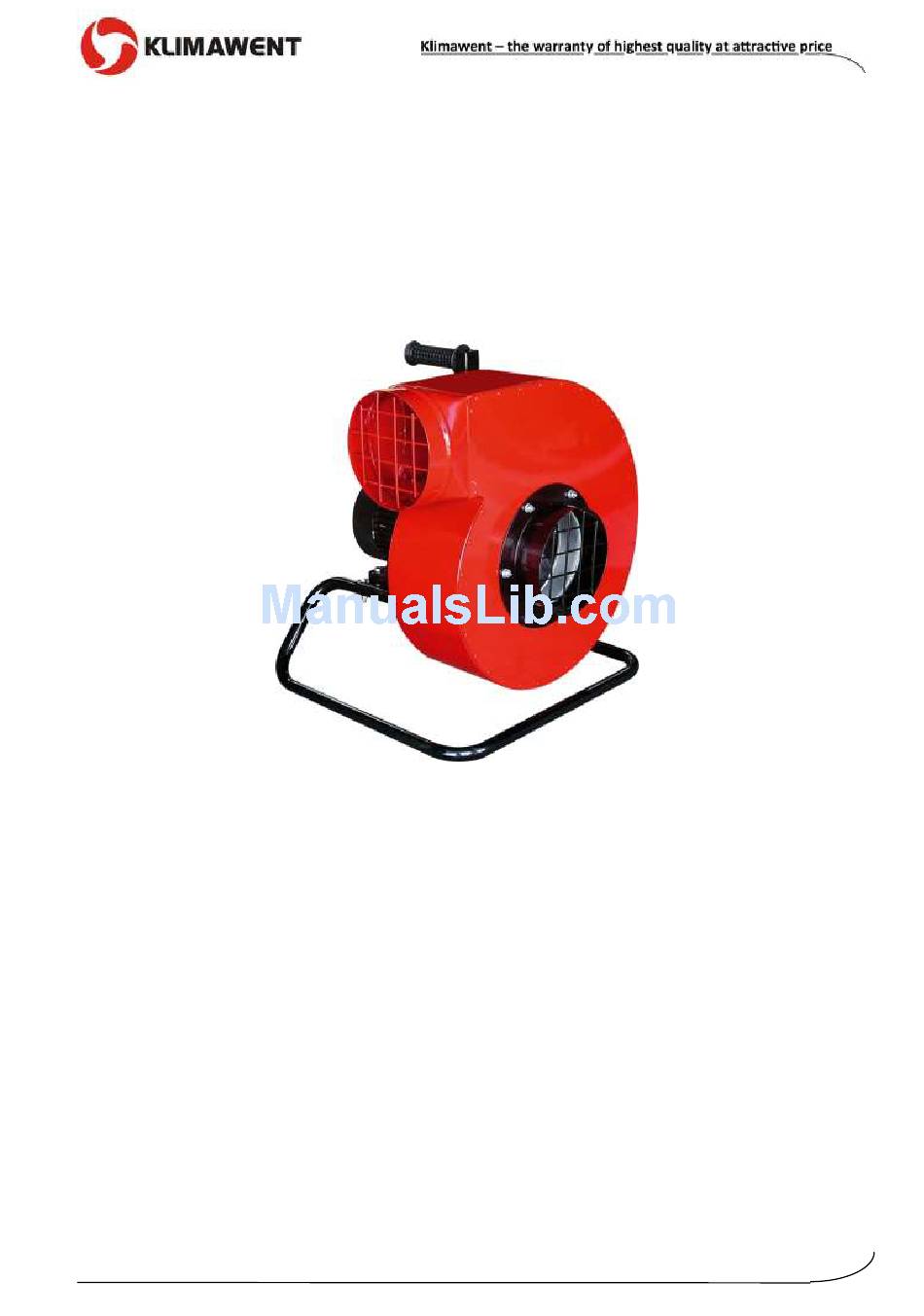

  • Page 1 Use and Maintenance Manual WPA-P-N Portable radial fans 27.09.2016 Portable radial fans WPA-P-N...

  • Page 2: Table Of Contents

    Contents: Introductory Remarks ................. 3 Application ..................4 Reservations of Producer ..............4 Technical Data ..................5 Structure and Function............... 8 Assembly and Start-up ................ 8 Operational Use .................. 10 Trouble Shooting Guide ..............11 Maintenance ..................11 Occupational Health and Safety ............12 Transport and Storage ................

  • Page 3: Introductory Remarks

    1. Introductory Remarks The purpose of the present User’s Manual is to supply the Purchaser and the future User with directions within the range of application, installation, start-up and the operational use of the WPA-P-N portable radial fans. Therefore, installing, start up and operational use are exclusively admissible after getting acquainted with the contents of the User’s Manual.

  • Page 4: Application

    2. Application WPA-P-N portable radial fans have been designed for air-supply ventilation or extraction ventilation of rooms and workplaces. They can be applied for general ventilation and for local exhausts. Additionally, WPA-P-N fans can be used or drying the humid rooms by forcing the multiple air exchanges.

  • Page 5: Technical Data

    Acoustic Maximum Maximum Weight rotations voltage rate pro- pressure level volume vacuum [dB(A)] tection flow from distance [r.p.m.] [kW] [Pa] [kg] WPA-3-P-1-N 3000 0,37 1160 WPA-5-P-1-N 3000 0,55 WPA-5-P-3-N 3x400 WPA-6-P-1-N 3000 0,75 2500 1700 WPA-6-P-3-N 3x400 WPA-7-P-1-N 3000 3100...
  • Page 6 Table No. 2 – Dimensions of fans Type of the fan [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [pcs] [mm] WPA-3-P-1-N – WPA-5-P-1-N – WPA-5-P-3-N WPA-6-P-1-N – WPA-6-P-3-N WPA-7-P-1-N WPA-7-P-3-N WPA-8-P-3-N WPA-9-P-3-N WPA-10-P-3-N 1) The construction of the framework is not equipped with a branching upwards 2) Dimension between the most distant points of the device Fig.
  • Page 7 Product requirements pertaining to fans – according to Regulation of Committee (EU) No. 327/2011 Product information WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- WPA- requirements 10-3 1 Overall efficiency (%) 67,6 54,1 61,1 65,1 65,6 62,2 66,1 2 Measurement category (A-D) 3 Efficiency category static...

  • Page 8: Structure And Function

    5. Structure and Function The fan consists of a steel spiral housing and a motor and a radial impeller which is directly mounted on the motor shaft (direct drive). The inlet and outlet are adapted for connection of the flexible hoses, which are clamped with hose clamps. For safety reasons, the inlet and outlet are equipped with a protective grill.
  • Page 9 The windings ought to be connected according to the Connection Diagram on the terminal box cover. Fig. No.3 – Connection Diagram of the fans type WPA-P-N 27.09.2016 Portable radial fans WPA-P-N...

  • Page 10: Operational Use

    7. Operational Use In case when the portable fan is applied for local exhaust (technological extraction), connect a hose (of adequate diameter) to the suction ferrule. Additionally, the hose must be tipped with a suitable suction nozzle. Example application with a magnetic suction hood is illustrated in the Photo No.1a below. Photo 1a Photo 1b Portable fan working with a magnetic...

  • Page 11: Trouble Shooting Guide

    8. Trouble Shooting Guide Problem Possible reason Corrective action 1. Sudden and significant Pollutants, foreign objects (being Remove the pollutants; drop in intake volume flow. obstacle do the air flow) have clean the ventilation conduits. deposited at the inlet grill. 2.

  • Page 12: Occupational Health And Safety

    10. Occupational Health and Safety Start up and the operational use is only admissible exclusively after getting acquainted with the contents of the present Use and Maintenance Manual. Connect the fan to the electrical wiring system, strictly according to the enclosed connection diagram and the guidelines shown in Section 6 of the present Use and Maintenance Manual.
  • Page 13 27.09.2016 Portable radial fans WPA-P-N...
  • Page 14 NOTES: Portable radial fans WPA-P-N 27.09.2016...
  • Page 15 NOTES: 27.09.2016 Portable radial fans WPA-P-N...
  • Page 16 Producer: KLIMAWENT S.A. 81-571 Gdynia, ul. Chwaszczyńska 194 tel. 058 629 64 80 fax 058 629 64 19 e-mail: klimawent@klimawent.com.pl www.klimawent.com.pl 805W10 WPA-3-P-1-N 27.09.2016/EN 805W21 WPA-3-P-3-N 27.09.2016/EN 805W11 WPA-5-P-1-N 27.09.2016/EN 805W12 WPA-5-P-3-N 27.09.2016/EN 805W13 WPA-6-P-1-N 27.09.2016/EN 805W14 WPA-6-P-3-N 27.09.2016/EN 805W15 WPA-7-P-3-N 27.09.2016/EN...
