Summary of Contents for Woodstock G4792

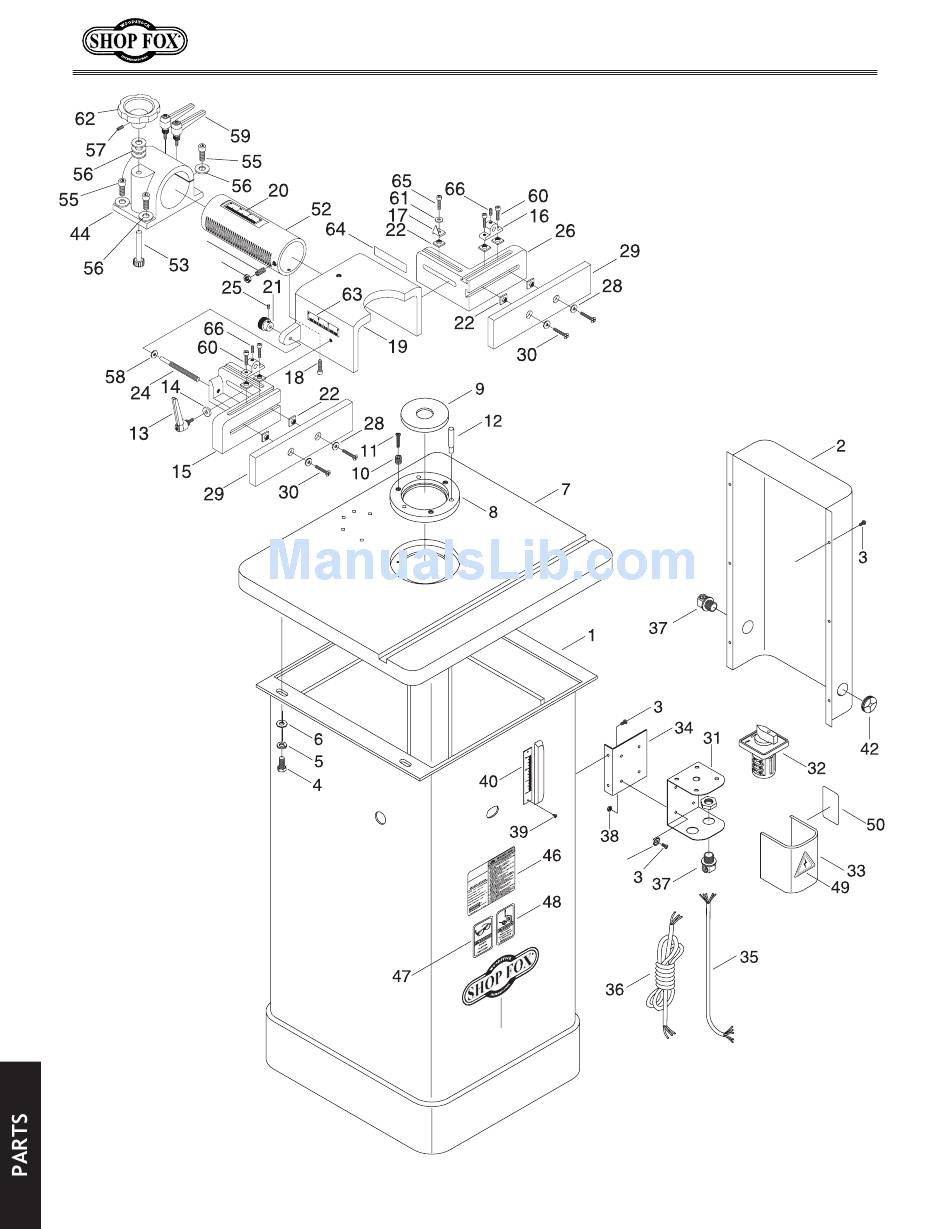

- Page 2 REF PART# DESCRIPTION 01 X1674001 STAND 02 X1674002 MOTOR COVER 03 XPS06 PHLP HD SCRW 10-24 x 04 XPB21 HEX BOLT "-16 x 05 XPLW04 LOCK WASHER 06 XPW02 FLAT WASHER ⁄ 07 X1674007 TABLE 08 X1674008 TABLE INSERT 09 X1674009 TABLE INSERT 10 X1674010 BARREL SCREW...
- Page 3 (for shipping purposes only)
- Page 4 PART # DESCRIPTION 101 X1674101 HANDLE 103 X1674103 HANDWHEEL 104 XPSS02 SETSCREW ⁄ "-18 x 105 XPSS11 SETSCREW ⁄ "-20 x 106 X1674106 COLLAR 107 XPSB17 CAP SCREW ⁄ "-20 x 108 X1674108 SHAFT MOUNT 109 X1674109 BUSHING 110 X1674110 WORM SHAFT 111 X1674111 HAND KNOB...
- Page 6 REF# PART # DESCRIPTION X1674201A ⁄ " SPINDLE XPRI5M EXT RETAINING RING 30mm X1674203 X1674204 SPINDLE CARTRIDGE XPK14M KEY 5 x 5 x 18mm X1674206 HOUSING CAP XPS01 PHLP HD SCRW 10-24 x XP6204 BEARING 6204 X1674209 SPACER, LONG X1674201B ⁄...
- Page 8 PART # DESCRIPTION 401 XPSS02 SETSCREW ⁄ "-18 x 402 X1674402 SHAFT MOUNT 403 XPLW04 LOCK WASHER 404 XPB21 HEX BOLT ⁄ "-16 x 405 X1674405 EXTENSION BRACKET 406 X1674406 LOCK KNOB SHAFT 407 X1674407 KNURLED KNOB 408 X1674408 SPRING PIN 409 X1674409 SHAFT PART #...
- Page 10 PART# DESCRIPTION 601 X1674 601 KNOB 602 XPW07 FLAT WASHER 603 X1674 603 MITER GAUGE BODY 604 X1674 604 MITER BAR 605 X1674 605 SPECIAL WASHER 606 XPFH19 FLAT HD SCREW 607 XPNO7 HEX NUT 10-24 PART# 608 XPSS32 ⁄ "...
- Page 11 PART # DESCRIPTION 501 X1674501 HOLD-DOWN BAR 502 X1674502 HOLD-DOWN 503 X1674503 BRACKET, HOLD-DOWN 504 XPSS03 SETSCREW ⁄ " - 20 x ⁄ "...
