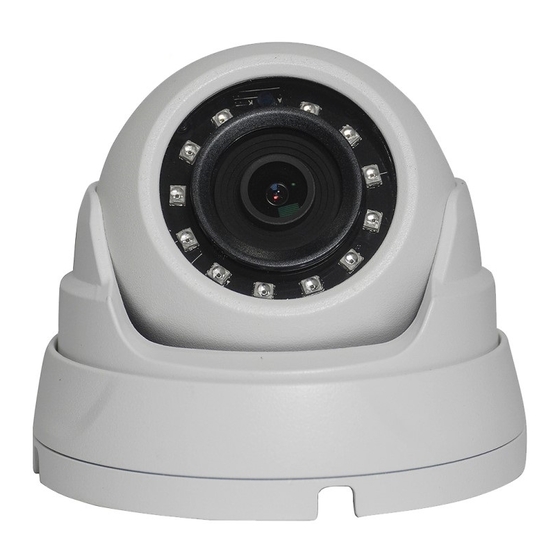

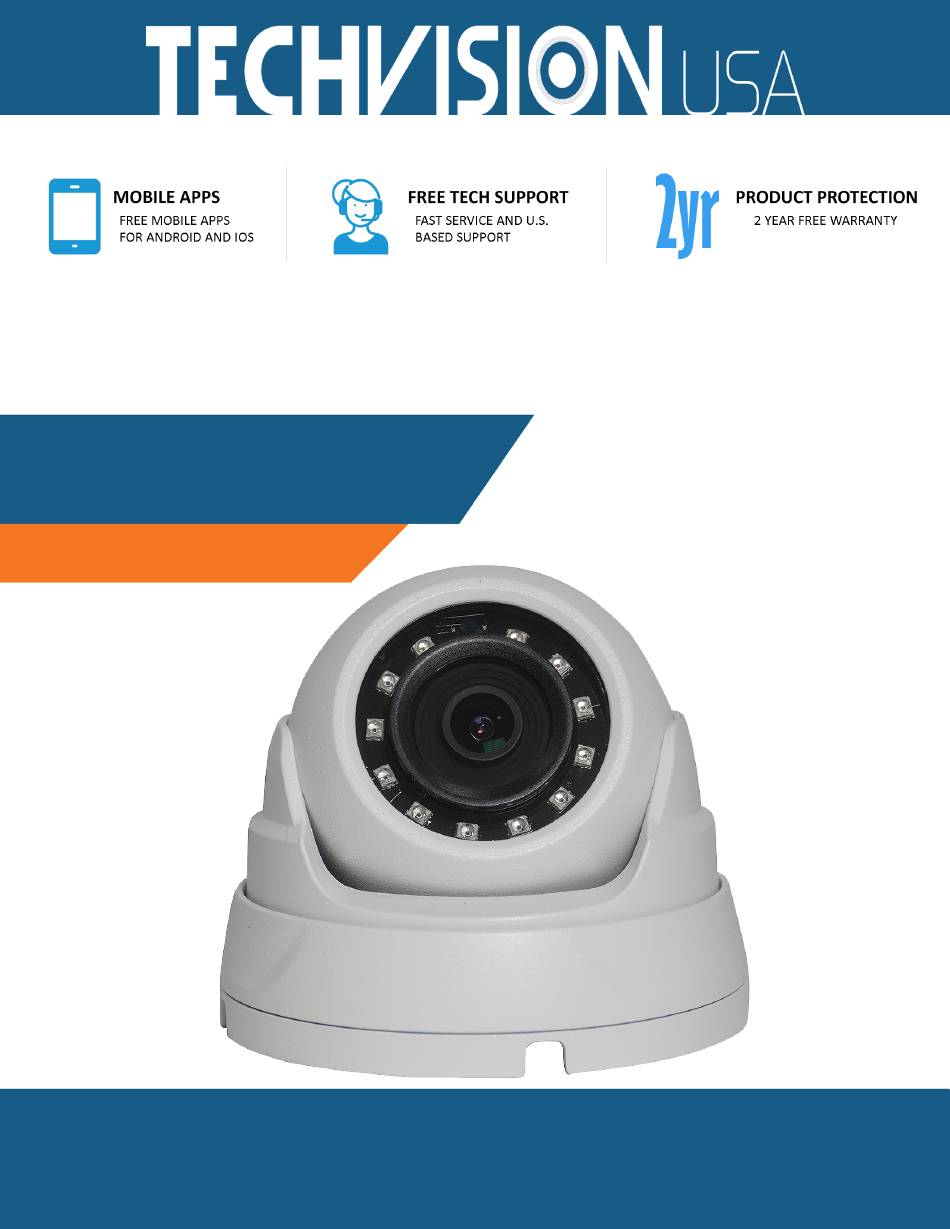

- Page 1 2MP 4-in-1 Dome Security Camera HDE2P2W2-S/A...
-
Page 2: Table Of Contents
Table of Contents General Introduction ........................1 Overview ........................1 Features ......................... 1 Device Framework ........................2 Device Cable Structure ......................4 Installation............................ 5 Installation ................ 6 Menu ............................10 HCVR Settings ......................10 Set Audio Coax ......................10 Menu Operation ......................11 Appendix Ⅰ... - Page 3 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated DC 12V or AC24V in the IEC60950-1. (Power supply requirement is subject to the device label).
-
Page 4: General Introduction
1 General Introduction 1.1 Overview This series HDCVI camera conforms to the HDCVI standard. It supports video signal high- speed long distance transmission without any delay. It can be controlled by the HCVR conforming to the HDCVI. 1.2 Features Adopt high performance CMOS image sensor, megapixel definition. -
Page 5: Device Cable Structure
3 Device Cable Structure See Figure 3-1 for DC 12V power input port. Figure 3-1 See Figure 3-2 for DC 12V/AC 24V power input port. Figure 3-2 See Figure 3-3 for video output port. Figure 3-3 Note: Video output port (yellow): analog video output port. ... -
Page 6: Installation
4.2 Installation Figure 4-2 Step 1 Dismantle the pedestal ③ Hold decoration ring tightly and rotate away the pedestal counterclockwise. Step 2 Take out the installation position map from the accessories bag, paste it on the ceiling or wall ①... -
Page 7: Menu
5 Menu 5.1 HCVR Settings This HDCVI camera series can adjust OSD menu via coaxial control. After connected the camera to the HDCVI series HCVR, from Main Menu->Setting->System->PTZ, you need to select the channel number for access and set control mode as HDCVI and the protocol as HD- CVI. -
Page 8: Menu Operation
Figure 5-2 5.3 Menu Operation Click the right mouse button and select “PTZ Control”, then you will see the “PTZ Setup” menu, which is as shown in Figure 5-3 and Figure 5-4. Figure 5-3... - Page 9 Figure 5-4 See Sheet 4-1 for the details of button functions. Button Function Open menu Select menu item 、 Select menu value 、 Adjust lens zoom and auto trigger focus Note: Adjust lens focus Some of the buttons can only be applied for the motorized Auto focus under current vari-focal camera.
-
Page 10: Appendix Ⅰ Maintenance
Appendix Ⅰ Maintenance Attention: Please maintain the device according to the following instructions in order to ensure the image effect and long-term stable operation of the device. Maintenance for lens and mirror surface The lens and mirror surface are covered with antireflection coating, so it may produce hazardous substance and lead to performance reduction or scratch, dimness etc when it is stained with dust, grease, fingerprint and so on, please refer to the following methods to deal with once dirt is found:... - Page 11 Note This manual is for reference only. Slight difference may be found in the user interface. All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks mentioned are the properties of their respective owners.
