TechVision PBS2L1W2-2 Manual

2mp ip bullet camera

Advertisement

Quick Links

PBS2L1W2-2
2MP IP Bullet Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBS2L1W2-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TechVision PBS2L1W2-2

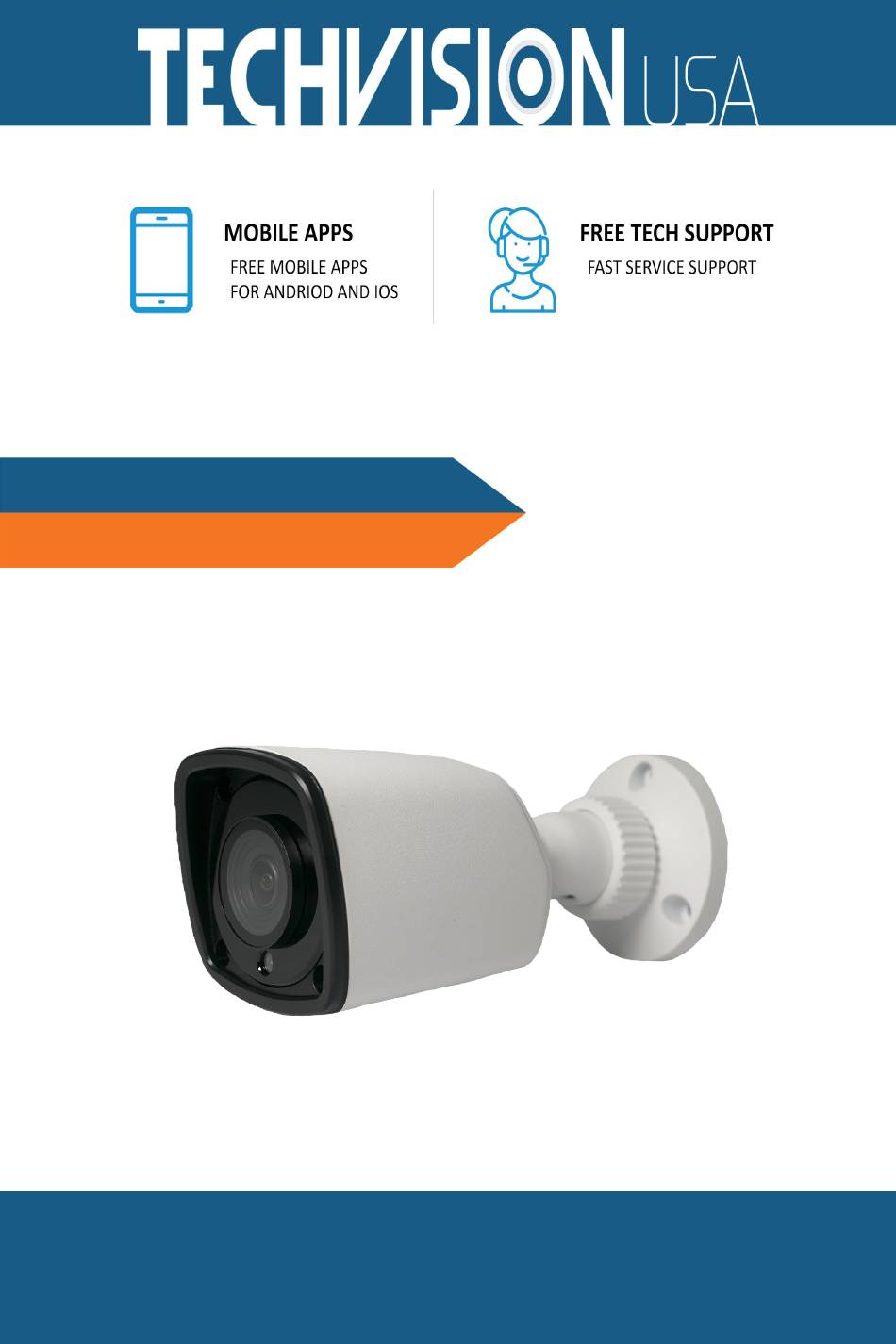

  • Page 1 PBS2L1W2-2 2MP IP Bullet Camera...
  • Page 2 Notes on Safety  Please use the specified power supply to connect.  Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers.  There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
  • Page 3 Disclaimer & Regulatory Information Disclaimer  With regard to the product with internet access, the use of product shall be wholly at your own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks;...
  • Page 4: Table Of Contents

    Table of Contents Introduction ........................1 Network Connection ...................... 2 LAN ........................2 2.1.1 Access through IP-Tool ................2 2.1.2 Directly Access through IE ............... 4 WAN ........................5 Live View ........................8 Configuration ......................... 9 System Configuration ..................9 4.1.1 Basic Information ..................
  • Page 5 Network Camera User Manual 4.6.4 Security Management ................33 Maintenance Configuration................34 4.7.1 Backup and Restore ................34 4.7.2 Reboot ....................34 4.7.3 Upgrade ....................35 4.7.4 Operation Log ..................35 Search ........................... 36 Image Search ....................36 Video Search ....................37 Appendix 1 Q &...
  • Page 6: Introduction

    Network Camera User Manual 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state-of-the-art video processing chips, integrated with the most advanced technologies (like video encoding and decoding technology) to make the image transmission more stable and smooth.
  • Page 7: Network Connection

    Network Camera User Manual 2 Network Connection Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser.
  • Page 8 Network Camera User Manual of your device according to the practical situation. For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please enter the password of the administrator and click “Modify”...
  • Page 9: Directly Access Through Ie

    Network Camera User Manual The system will pop up the above-mentioned textbox to ask you to change the default password. It is strongly recommended to change the default password for account security. If “Do not show again” is checked, the textbox will not appear next time. 2.1.2 Directly Access through IE The default network settings are as shown below: IP address: 192.168.226.201...
  • Page 10: Wan

    Network Camera User Manual ② Open the IE browser and enter the default address of IP-CAM and confirm. ③ Follow directions to download and install the Active X control. ④ Enter the default username and password in the login window and then enter to view. 2.2 WAN ...
  • Page 11 Network Camera User Manual ③ Go to the router’s management interface through IE browser to forward the IP address and port of the camera in the “Virtual Server”. Router Setup ④ Open the IE browser and enter its WAN IP and http port to access. ...
  • Page 12 Network Camera User Manual The setup steps are as follow: ① Go to ConfigNetworkPort menu to set the port number. ② Go to Config NetworkTCP/IP menu to set the IP address. Check “Use the following IP address” and then enter the static IP address and other parameters. ③...
  • Page 13: Live View

    Network Camera User Manual 3 Live View After logging in, the following window will be shown. The following table is the instructions of the icons on the live view interface. Icon Description Icon Description Original size Zoom out Motion alarm indicator icon Appropriate size Scene change indicator Auto...
  • Page 14: Configuration

    Network Camera User Manual 4 Configuration 4.1 System Configuration 4.1.1 Basic Information In the “Basic Information” interface, the system information of the device is listed. 4.1.2 Date & Time Go to ConfigSystemDate and Time. Please refer to the following interface. Select the time zone and DST as desired.
  • Page 15: Local Configuration

    Network Camera User Manual 4.1.3 Local Configuration Go to ConfigSystemLocal Config to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. 4.2 Image Configuration Image Configuration includes five submenus: Display, Video/Audio, OSD, Video Mask and ROI Config.
  • Page 16 Network Camera User Manual Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color is, the brighter the image is. WDR:WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area.
  • Page 17: Video Stream

    Network Camera User Manual Frequency: 50Hz and 60Hz can be optional. Day/night Mode: Please choose the mode as needed. Sensitivity: High, middle and low can be selected for switching back and forth from day to night modes. Infrared Mode: Choose “ON”, “OFF” and “Auto” (Some models may not support the infrared mode).
  • Page 18: Osd Configuration

    Network Camera User Manual Two video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant.
  • Page 19: Video Mask

    Network Camera User Manual Time stamp, device name and OSD can be set up here. After enabling the corresponding display and entering the content, drag them to change their position. Then press the “Save” button to save the settings. 4.2.4 Video Mask Go to ConfigImageVideo Mask menu to display the interface as shown below.
  • Page 20: Roi Configuration

    Network Camera User Manual To clear the video mask: Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest.
  • Page 21: Alarm Configuration

    Network Camera User Manual 4.3 Alarm Configuration 4.3.1 Motion Detection To set motion detection: 1. Go to ConfigAlarmMotion Detection to set motion detection alarm. Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video.
  • Page 22 Network Camera User Manual Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select “Add” and click “Draw”. Drag the mouse to draw the motion detection area; Select “Erase” and drag the mouse to clear motion detection area. After that, click the “Save”...
  • Page 23: Alarm Server

    Network Camera User Manual granularities (minutes). Day schedule Set the alarm time for alarm a special day, such as a holiday. Note: Holiday schedule takes priority over weekly schedule. 4.3.2 Alarm Server Go to AlarmAlarm Server interface as shown below. Set the server address, port, heartbeat and heartbeat interval.
  • Page 24 Network Camera User Manual 1. Enable the applicable detection that’s desired. Scene Change Detection: Alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: Alarms will be triggered if the video becomes blurry. Enable Video Color Cast Detection: Alarms will be triggered if the video becomes obscured.
  • Page 25: Line Crossing

    Network Camera User Manual 4.4.2 Line Crossing Line Crossing: Alarms will be triggered if someone or something crosses the pre-defined alarm lines. It can replace the electronic fence, warning line of flood prevention, etc. Go to ConfigEventLine Crossing interface as shown below. 1.
  • Page 26: Intrusion

    Network Camera User Manual ※ Configuration of camera and surrounding area 1. Auto-focusing function should not be enabled for line crossing detection. 2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn’t be too low. 3.
  • Page 27 Network Camera User Manual no man’s areas, etc. Go to ConfigEventIntrusion interface as shown below. 1. Enable region intrusion detection alarm. 2. Set the alarm holding time and choose whether to trigger Email. 3. Click “Save” to save the settings. 4.
  • Page 28: Network Configuration

    Network Camera User Manual 5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image. 6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate detection.
  • Page 29 Network Camera User Manual Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP address automatically by DHCP and use the following IP address. Please choose one of the options as needed. Click “IP Change Notification Config” to go to the interface as shown below. Trigger Email: when the IP address of the device is changed, a new IP address will be sent to the appointed mailbox automatically.
  • Page 30: Port

    Network Camera User Manual 4.5.2 Port Go to ConfigNetworkPort. HTTP port, Data port and RTSP port can be set. HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPs Port: Optional. The default HTTP port is 443. It can be changed to any port which is not occupied.
  • Page 31 Network Camera User Manual 2. Apply for a domain name. Take www. dvrdyndns.com for example. Input in the IE address bar to visit its website. Then click “Registration” button. www.dvrdydns.com Create domain name. After the domain name is successfully applied for, the domain name will be listed as below.
  • Page 32: 802.1X

    Network Camera User Manual 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 4.5.5 802.1x IEEE802.X is an access control protocol. The setting steps are as follows: To use this function, the camera shall be connected to a switch supporting 802.1x protocol.
  • Page 33: Upnp

    Network Camera User Manual Select “Enable” to enable the RTSP function. Port: Access port of the streaming media. The default number is 554. RTSP Address: RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player. Multicast Address Main stream: The address format is “rtsp://IP address: rtsp port/profile1?transportmode=mcast”.
  • Page 34: Mail Configuration

    Network Camera User Manual 4.5.8 Mail Configuration If you need to trigger Email when an alarm happens or IP address is changed, please set the Email here first. Go to ConfigNetwork Email. Sender Address: sender’s e-mail address. User name and password: sender’s user name and password. Server Address: The SMTP IP address or host name.
  • Page 35: Https

    Network Camera User Manual 4.5.9 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go to Config ConfigNetworkHTTPS as shown below. There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg.
  • Page 36: Qos

    Network Camera User Manual Click “Create” to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device. 4.5.10 QoS QoS (Quality of Service) function is used to provide different quality of services for various network applications.
  • Page 37 Network Camera User Manual 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the user type. Administrator has all permissions. Normal user can only view the live video. Advanced user has the same permissions as an Administrator except for user, backup settings, factory reset, and upgrading the firmware.
  • Page 38: Online Video User

    Network Camera User Manual 1. Select the user to be deleted in the user configuration list box. 2. Click the “Delete” button to delete the user. Note: The default administrator account cannot be deleted. 4.6.2 Online Video User Go to ConfigSecurityOnline User to view the user who is viewing the live video. 4.6.3 Block and Allow List Go to ConfigSecurityBlock and Allow Lists.
  • Page 39: Maintenance Configuration

    Network Camera User Manual 4.7 Maintenance Configuration 4.7.1 Backup and Restore Go to ConfigMaintenanceBackup & Restore.  Import & Export Settings Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2.
  • Page 40: Upgrade

    Network Camera User Manual 4.7.3 Upgrade Go to ConfigMaintenanceUpgrade. In this interface, the camera firmware can be updated. 1. Click the “Browse” button to select the save path of the upgrade file 2. Click the “Upgrade” button to start upgrading the firmware. 3.
  • Page 41: Search

    Network Camera User Manual 5 Search 5.1 Image Search Click Search to go to the interface as shown below. Choose “Picture”—“Local”. Set time: Select date and choose the start and end time. Click to search the images. Double click a file name in the list to view the captured photos as shown above.
  • Page 42: Video Search

    Network Camera User Manual Click to return to the previous interface. The descriptions of the buttons are shown as follows. Icon Description Icon Description Close: Select an image and Close all: Click this button click this button to close the to close all images.
  • Page 43 Network Camera User Manual Icon Description Icon Description Play button. After pausing the video, click this button to Pause button continue playing. Stop button Speed down Speed up Watermark display...
  • Page 44: Appendix 1 Q & A

    Network Camera User Manual Appendix 1 Q & A Q: How to find my password if I forget it? A:Reset the device to the default factory settings. Default IP: 192.168.226.201 User name: admin Password: 123456 Q: Fail to connect devices through IE browser, why? A: Network is not well connected.
  • Page 45: Appendix 2 Specifications

    Network Camera User Manual ④ Then click OK to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Appendix 2 Specifications...
  • Page 46 Network Camera User Manual IR Water-proof Bullet Specification /Model IR Water-proof Bullet Network Camera Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field...
  • Page 47 Network Camera User Manual IR Water-proof Bullet IR Water-proof Bullet Specification /Model Network Camera Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field of view:108.2°...
  • Page 48 Network Camera User Manual Specification /Model IR Water-proof Bullet Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR 3.6mm@F2.4, orizontal field of view: 88°...
  • Page 49 Network Camera User Manual Specification /Model IR Water-proof Dome Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field of view: 108.2°...
  • Page 50 Network Camera User Manual Specification /Model IR Dome Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR Camera 2.8-12mm @F1.4;...
  • Page 51 Network Camera User Manual IR Water-proof Dome Network IR Water-proof Dome Network Specification /Model Camera Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR 2.8mm@F2.0, horizontal field...
  • Page 52 Network Camera User Manual IR Water-proof Dome Network IR Water-proof Dome Network Specification /Model Camera Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR Camera 2.8-12mm @F1.4;...
  • Page 53 Network Camera User Manual Specification /Model IR Water-proof Dome Network Camera 1/2.9"CMOS Image Sensor Image Size 1920× 1080 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris 0.03lux@F2.5, AGC ON; 0 lux with IR Min. llumination 0.007lux@F1.2, AGC ON; 0 lux with IR Camera 2.8-12mm@F1.4;...
