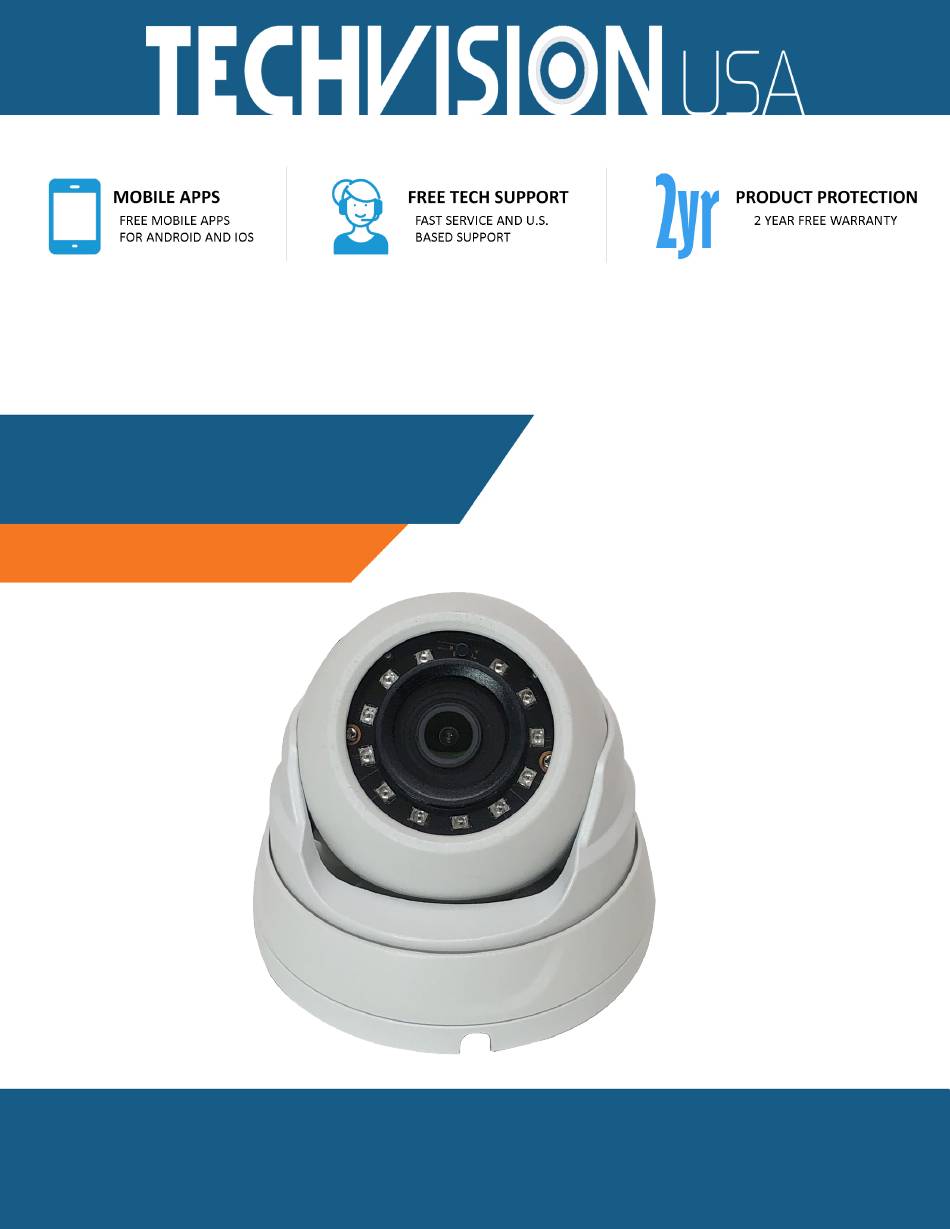

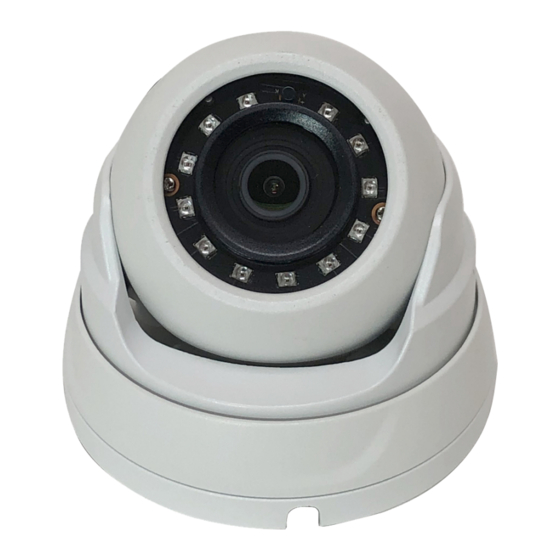

- Page 1 5MP 4-in-1 Dome Securityt Camera HDE5P2W2-S/A...
-
Page 2: Foreword
Foreword General This user’s manual (hereinafter referred to be "the Manual") introduces the functions, installation and operations of the camera. Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. - Page 3 There still might be deviation in technical data, functions and operations description, or errors in print. If there is any doubt or dispute, please refer to our final explanation. Upgrade the reader software or try other mainstream reader software if the Guide (in PDF format) cannot be opened.
-
Page 4: Table Of Contents
Use standard components or accessories provided by manufacturer and make sure the device is installed and maintained by professional engineers. The surface of the image sensor should not be exposed to laser beam radiation in an environment where a laser beam device is used. ... -
Page 5: Introduction
Introduction General This series of products comply with the HDCVI standard and support the transmission of video and control signal over coaxial cable. They produce video signal with megapixel resolution and require XVR device that comply with the HDCVI standard to achieve high speed, long distance and zero lag transmission of the signal. -
Page 6: Cable
Cable Figure 2-4 Figure 2-5 Figure 2-6 Figure 2-7 Figure 2-8 Figure 2-9 For more information about cable ports, see Table 2-1; for the operation method of ⑥(DIP switch), see Table 2-2. Port Name Function ① DC 12V Inputs DC 12V power. Please be sure to supply power as instructed in the Power Input Manual. -
Page 7: Installation
Port Name Function ② DC 12V or AC Inputs DC 12V or AC 24V power. Please be sure to supply power as 24V Power instructed in the Manual. Input Device abnormity or damage could occur if power is not supplied correctly. ③... - Page 8 Item Item Item Item ① ② ③ ④ Mounting surface Expansion bolt Pedestal Self-tapping screw ⑤ ⑥ ⑦ Device Enclosure Fixing ring Table 3-1 Step 1 Find the mounting template sticker from the accessory pack and stick it to the mounting surface①...
-
Page 9: Configuration
For model B and model C, it is easier to fit the enclosure⑥ to the pedestal③ if you put the higher end in first and then the lower end. For the models with vari-focal lens, you can adjust the zoom and focus through XVR ... -
Page 10: Setting Audio Input
Figure 4-2 Right-click anywhere on the screen to return to the previous menu until you goes back to the live view screen interface. Setting Audio Input Audio signal acquisition is available on select models. Step 1 In the Main Menu interface (Figure 4-2), select CAMERA > ENCODE > Encode. The Encode setting interface is displayed. - Page 11 Figure 4-3 Step 2 In the Channel list, select the camera that you want to configure according to the coaxial port number. Step 3 In the Main Stream column, click More Setting. The More Setting interface is displayed. See Figure 4-4. Figure 4-4 Step 4 In the More Setting interface, you can configure the audio settings.
-
Page 12: Operating Osd Menu
Operating OSD Menu Step 1 In the live view screen interface, right-click within the live view window of the camera that you want to configure. The shortcut menu (Figure 4-1) is displayed. Step 2 Click PTZ. The PTZ setting interface is displayed. See Figure 4-5. Figure 4-5 Step 3 Click... -
Page 13: Maintenance
Table 4-1 If there is " " as the value of an OSD item, click Enter to go to the next level of this item. Click Return to go back to the previous level. Clicking Cancel is to exit OSD menu without saving the modifications.
