TechVision PDE4L3WZ-I Quick Start Manual

Motorized 4mp ip dome security camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Motorized 4MP IP Dome Security
Camera
PDE4L3WZ-I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDE4L3WZ-I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TechVision PDE4L3WZ-I

Summary of Contents for TechVision PDE4L3WZ-I

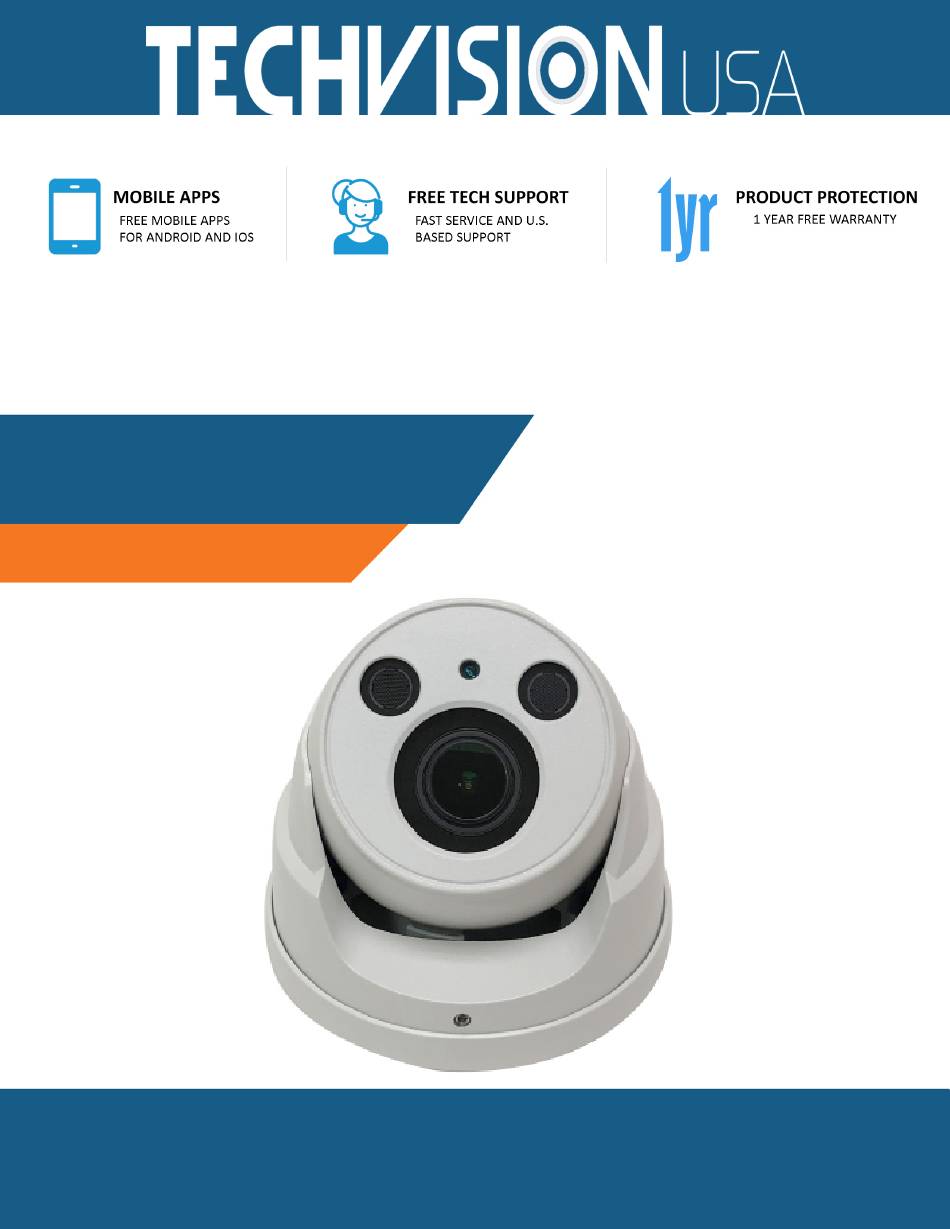

  • Page 1 Motorized 4MP IP Dome Security Camera PDE4L3WZ-I...
  • Page 2 HD IR Network Dome Camera Quick Start Guide Welcome Thank you for purchasing our network cameras. This user’s manual is designed to be a reference tool for using your product. Please read the following safeguards and warnings carefully before you use this series product. Please keep this user’s manual well for future reference.
  • Page 3 HD IR Network Dome Camera Quick Start Guide  Do not directly touch the heat dissipation component of the device to avoid scald.  Do not dismantle the device because there is no component that can be fixed by users themselves. Otherwise, it might cause water leakage or bad image due to unprofessional dismantling.
  • Page 4 HD IR Network Dome Camera Quick Start Guide Disclaimer  This manual is for reference only. Please refer to the actual product for more details.  Minor differences might be found in user interface, and there might be deviation between the actual value of some data and the value provided in the manual due to the reasons such as the real environment is not stable.
  • Page 5 HD IR Network Dome Camera Quick Start Guide Note  Please refer to the disk for more details, check and download the corresponding user’s manual and tool.  Before installation, please open the package and check all the components are included. ...

  • Page 6: Table Of Contents

    HD IR Network Dome Camera Quick Start Guide Table of Contents Device Structure ..........................1 Structure Components ..................... 1 Framework and Dimension ....................1 Device Installation ......................... 3 Install SD Card ......................... 3 Fix Device ........................4 Connect Device Cable ...................... 6 Network Configuration .......................

  • Page 7: Device Structure

    HD IR Network Dome Camera Quick Start Guide 1 Device Structure 1.1 Structure Components Note  The following figure is for reference only, which is used to know each structure component and cable port functions.  Different devices may have different structures and cables, please refer to Figure 1-1 according to the actual product.
  • Page 8 HD IR Network Dome Camera Quick Start Guide Figure 1-2...

  • Page 9: Device Installation

    HD IR Network Dome Camera Quick Start Guide 2 Device Installation 2.1 Install SD Card Note  Please implement SD card installation when the device is equipped with SD card slot and it needs to use SD card.  Please cut off the device power before installing SD card. Step 1 Use cross screwdriver to remove the screw on the dome bottom, take down the compression cover and take out the dome body.

  • Page 10: Fix Device

    HD IR Network Dome Camera Quick Start Guide Figure 2-2 Note: Please install the device seal ring back to the dome body bottom after Micro SD card is installed. Step 4 Use cross screwdriver to tighten back screws on the dome body, and put the dome body back into the dome enclosure.
  • Page 11 HD IR Network Dome Camera Quick Start Guide Figure 2-3 Step 1 Please take out the installation position map from the accessories bag, and then stick it on the ceiling or the wall. Dig bottom holes according to the installation position map, and then take out expansion bolts from the accessories bag and insert them into the holes you just dug.

  • Page 12: Connect Device Cable

    HD IR Network Dome Camera Quick Start Guide Figure 2-4 Figure 2-5 Step 4 Adjust pedestal location, align it with bottom hole, twist mounting screws into the bottom holes of plastic expansion bolts, and fix the pedestal on the mounting surface. Step 5 Install the enclosure back to pedestal, push the enclosure upward and use wrench to tighten locking screw firmly.
  • Page 13 HD IR Network Dome Camera Quick Start Guide Figure 2-6 Step 1 Keep the convex groove outward and install the rubber ring into the network port, keep the smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof connector.

  • Page 14: Network Configuration

    HD IR Network Dome Camera Quick Start Guide 3 Network Configuration You can initialize the device and modify IP address via "Quick Configuration Tool", for Wi-Fi network camera, it needs to connect to wired network to configure Wi-Fi parameters; You can also initialize device and modify IP address on the WEB interface.

  • Page 15: Modify Ip Address

    HD IR Network Dome Camera Quick Start Guide Figure 3-1 Step 5 Set new password and confirm password, select Email Address and input email address. Note The password can be set as 8 to 32 characters; it can be a combination of number(s), letter(s) and symbol(s) with at least two kinds of them (excluding “'”,“"”,“;”,“:”,“&”).

  • Page 16: Login Web Interface

    HD IR Network Dome Camera Quick Start Guide Step 4 Select the devices whose IP addresses need to be modified, and then click . The system will display the dialog box of Modify IP Address, which is shown in Figure 3-2. Figure 3-2 Step 5 Set the mode as Static, and enter the planned start IP, subnet mask and gateway.
  • Page 17 HD IR Network Dome Camera Quick Start Guide Figure 3-3...
