Summary of Contents for TechVision PDS5E3WZ-A

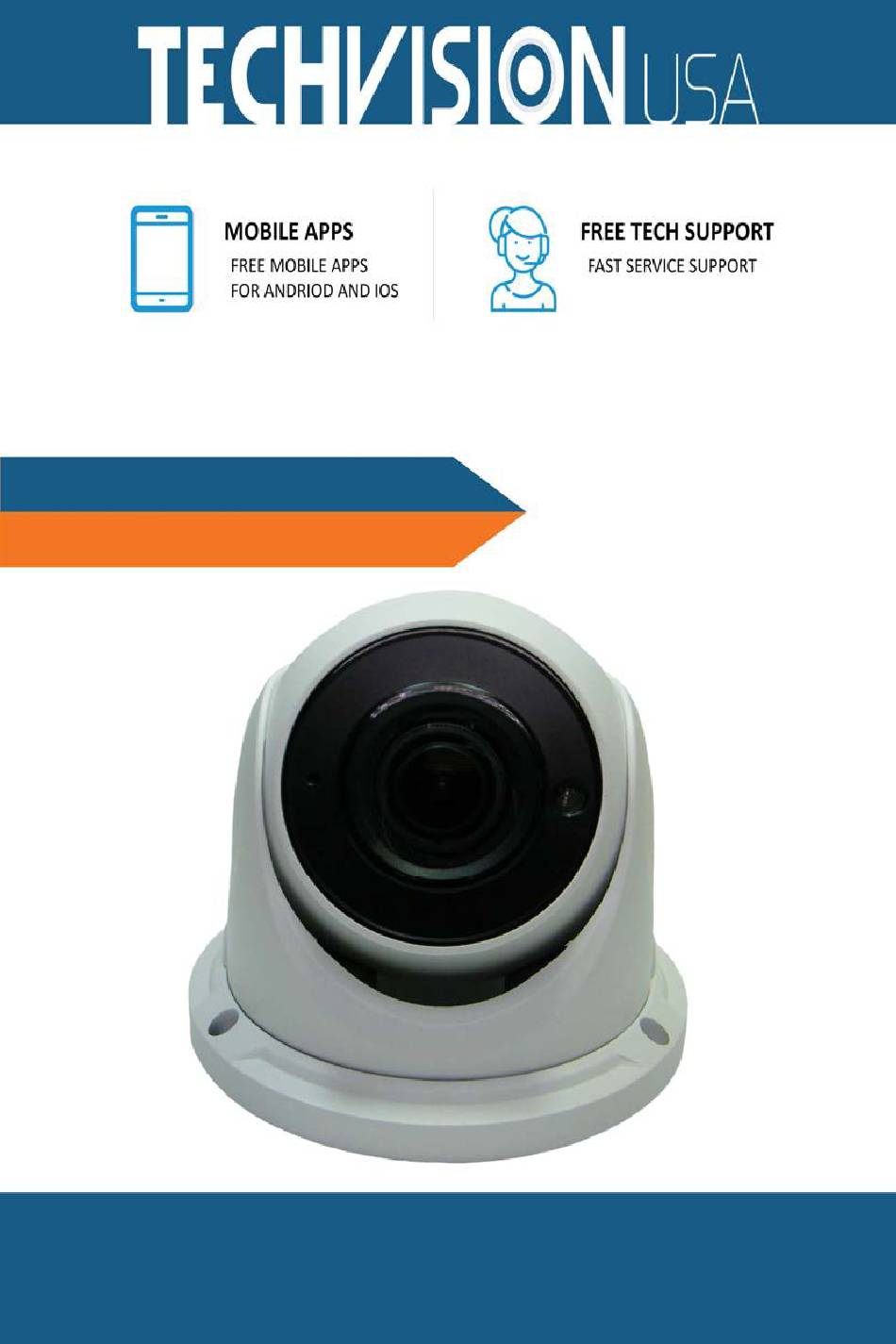

  • Page 1 PDS5E3WZ-A 5MP IP Motorized Dome...
  • Page 2 Notes on Safety This product is intended to be supplied by a Listed Power Unit, marked with 'Limited  Power Source', 'LPS' on unit, output rated minimum 12V/2 A or POE 48V/ 350mA(depending on models), no more than 2000m altitude of operation and Tma=60 Deg.C.
  • Page 3 Disclaimer & Regulatory Information Disclaimer With regard to the product with internet access, the use of product shall be wholly at  your own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or other damages resulting from cyber attack, hacker attack, virus inspection, or other internet security risks;...
  • Page 4: Table Of Contents

    Table of Contents Introduction ........................1 Network Configuration ....................2 LAN ........................2 2.1.1 Access through IP-Tool ................2 2.1.2 Directly Access through IE ............... 4 WAN ........................5 Live View ........................9 Network Camera Configuration ................. 11 System Configuration ..................11 4.1.1 Basic Information ...................
  • Page 5 Network Camera User Manual Security Configuration ..................35 4.6.1 User Configuration ................. 35 4.6.2 Online User ..................... 37 4.6.3 Block and Allow Lists ................37 4.6.4 Security Management ................37 Maintenance Configuration................38 4.7.1 Backup and Restore ................38 4.7.2 Reboot ....................
  • Page 6: Introduction

    Network Camera User Manual Network Camera User Manual 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips, integrated with the most advanced technologies (like video encoding and decoding technology) to make the image transmission more stable and smooth.
  • Page 7: Network Configuration

    Network Camera User Manual Network Camera User Manual 2 Network Configuration Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser.
  • Page 8 Network Camera User Manual For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please enter the password of the administrator and click the “Modify” button to modify the setting. ...
  • Page 9: Directly Access Through Ie

    Network Camera User Manual The system will pop up the above-mentioned textbox to ask you to change the default password. It is strongly recommended to change the default password for account security. If “Do not show again” is checked, the textbox will not appear next time. 2.1.2 Directly Access through IE The default network settings are as shown below: IP address: 192.168.226.201...
  • Page 10: Wan

    Network Camera User Manual Select “Properties” and then select internet protocol according to the actual situation (for example: IPv4). Next, click the “Properties” button to set the network of the PC. ② Open the IE browser and enter the default address of IP-CAM and confirm. ③...
  • Page 11 Network Camera User Manual ① Make sure the camera is well connected via LAN and then log in the camera via LAN and go to ConfigNetworkPort menu to set the port number. Port Setup ② Go to Config NetworkTCP/IP menu to modify the IP address. IP Setup ③...
  • Page 12 Network Camera User Manual Router Setup ④ Open the IE browser and enter its WAN IP and http port to access. (for example, if the http port is changed to 81, please enter “192.198.1.201:81” in the address bar of web browser to access).
  • Page 13 Network Camera User Manual  Access through static IP Network connection The setting steps are as follow: ① Go to ConfigNetworkPort menu to set the port number. ② Go to Config NetworkTCP/IP menu to set the IP address. Check “Use the following IP address”...
  • Page 14: Live View

    Network Camera User Manual Network Camera User Manual 3 Live View After logging in, the following window will be shown. The following table is the instructions of the icons on the live view interface. Icon Description Icon Description Original size Zoom out Fit correct scale Abnormal clarity indicator...
  • Page 15 Network Camera User Manual Those smart alarm indicators will flash only when the camera supports those functions  and the corresponding events are enabled. In full screen mode, double click on the mouse to exit or press the ESC key on the keyboard. ...
  • Page 16: Network Camera Configuration

    Network Camera User Manual Network Camera User Manual 4 Network Camera Configuration In the Webcam client, choose “Config” to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 Basic Information In the “Basic Information”...
  • Page 17: Local Config

    Network Camera User Manual Select the time zone and DST as desired. Click the “Date and Time” tab to set the time mode. 4.1.3 Local Config Go to ConfigSystem Local Config to set up the storage path of captured pictures and recorded videos on the local PC.
  • Page 18 Network Camera User Manual Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color is, the brighter the image is. WDR: WDR can adjust the camera to provide a better image when there are both very bright and very dark areas simultaneously in the field of the view by lowering the brightness of the bright area and increasing the brightness of the dark area.
  • Page 19: Video Configuration

    Network Camera User Manual Off: disables the anti-flicker function. This is used mostly in outdoor installations.  50Hz: reduces flicker in 50Hz lighting conditions.  60Hz: reduces flicker in 60Hz lighting conditions.  White Balance: Adjust the color temperature according to the environment automatically. Frequency: 50Hz and 60Hz can be optional.
  • Page 20 Network Camera User Manual Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant.
  • Page 21: Osd Configuration

    Network Camera User Manual Audio Encoding: G711A and G711U are selectable. Audio Type: MIC. 4.2.3 OSD Configuration Go to ImageOSD interface as shown below. Set time stamp, device name and OSD content here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings.
  • Page 22: Roi Configuration

    Network Camera User Manual To clear the video mask: Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest.
  • Page 23: Alarm Configuration

    Network Camera User Manual 4.2.6 Lens Control This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically. 4.3 Alarm Configuration 4.3.1 Motion Detection Go to AlarmMotion Detection to set motion detection alarm.
  • Page 24 Network Camera User Manual 1. Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Trigger Email: If “Trigger Email”...
  • Page 25: Alarm Server

    Network Camera User Manual Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled. Blank means unscheduled. Note that if a specific time period is not scheduled for motion, the camera will not generate a motion alarm even if motion is enabled.
  • Page 26: Event Configuration (Optional)

    Network Camera User Manual 4.4 Event Configuration (Optional) (Only some specified versions support the following functions). For more accuracy, here are some recommendations for installation. Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of  detection.
  • Page 27: Exception

    Network Camera User Manual detection. Please refer to motion detection chapter for details. 3. Click “Save” button to save the settings. 4. Set the alarm area of the object removal detection. Click the “Area” tab to go to the interface as shown below.
  • Page 28: Line Crossing

    Network Camera User Manual Go to ConfigEventException interface as shown below. 1. Enable the applicable detection that’s desired. Scene Change Detection: Alarms will be triggered if the scene of the monitor video has changed. Video Blur Detection: Alarms will be triggered if the video becomes blurry. 2.
  • Page 29 Network Camera User Manual alarm lines. Go to ConfigEventLine Crossing interface as shown below. 1. Enable line crossing alarm and set the alarm holding time. 2. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection chapter for details.
  • Page 30: Intrusion

    Network Camera User Manual motion detection schedule setup (See Schedule Recording). ※ Configuration of camera and surrounding area 1. Auto-focusing function should not be enabled for line crossing detection. 2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights).
  • Page 31: Network Configuration

    Network Camera User Manual Set the alarm area number on the right side. Only one alarm area can be added. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). Click the “Stop Draw”...
  • Page 32 Network Camera User Manual Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP address automatically by DHCP protocol and use the following IP address. Please choose one of the options as needed. Test: Test the effectiveness of the IP address by clicking this button. Use PPPoE-Click the “PPPoE Config”...
  • Page 33: Port

    Network Camera User Manual 4.5.2 Port Go to ConfigNetworkPort interface as shown below. HTTP port, Data port and RTSP port can be set. HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. HTTPS Port: The default HTTPS port is 443.
  • Page 34 Network Camera User Manual 2. Apply for a domain name. Take www.dvrdyndns.com for example. Enter www.dvrdydns.com in the IE address bar to visit its website. Then click the “Registration” button. Create domain name. After the domain name is successfully applied for, the domain name will be listed as below.
  • Page 35: 802.1X

    Network Camera User Manual 3. Enter the username, password, domain you apply for in the DDNS configuration interface. 4. Click the “Save” button to save the settings. 4.5.5 802.1x IEEE802.X is an access control protocol. The setting steps are as follows: To use this function, the camera shall be connected to a switch supporting 802.1x protocol.
  • Page 36: Rtsp

    Network Camera User Manual ③ Authentication server provides the entity of authentication service for the switch, stored the relative information of web client, realizing the authentication of web client. Please refer to the user manual of the connected switch for more details. 4.5.6 RTSP Go to ConfigNetworkRTSP.
  • Page 37: Upnp

    Network Camera User Manual 5. If the coding format of the video of the main stream is MJPEG, the video may be disordered at some resolutions. 4.5.7 UPNP If this function is enabled, the camera can be quickly accessed through the LAN. Go to ConfigNetworkUPnP.
  • Page 38: Ftp

    Network Camera User Manual SMTP Port: The SMTP port. Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and multiple motion detection alarms are triggered within 60 seconds, they will be considered as only one alarm event and only one email will be sent.
  • Page 39 Network Camera User Manual There is a certificate installed by default as shown above. Enable this function and save it. Then the camera can be accessed by entering https://IP: https port via the web browser (eg. https://192.168.226.201:443). A private certificate can be created if users don’t want to use the default one. Click “Delete” to cancel the default certificate.
  • Page 40: P2P (Optional)

    Network Camera User Manual Click “Create” to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device. 4.5.11 P2P (Optional) Only some specified version support this function.
  • Page 41 Network Camera User Manual 1. Click the “Add” button to pop up the following textbox. 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the user type. Administrator has all permissions. Normal user can only view the live video.
  • Page 42: Online User

    Network Camera User Manual 5. Enter computer’s MAC address as necessary. 6. Click the “OK” button to save the settings. Note: To change the access level of a user, the user must be deleted and added again with the new access level. Delete user: 1.
  • Page 43: Maintenance Configuration

    Network Camera User Manual In order to prevent against malicious password unlocking, “locking once illegal login” function can be enabled here. If this function is enabled, login failure after trying six times will make the login interface locked. The camera can be logged in again after a half hour or after the camera reboots.
  • Page 44: Reboot

    Network Camera User Manual except those you want to keep. 4.7.2 Reboot Go to ConfigMaintenanceReboot. Click the “Reboot” button to reboot the device. Timed Reboot Setting: If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”, set the date and time and then Click the “Save”...
  • Page 45: Search

    Network Camera User Manual Network Camera User Manual 5 Search 5.1 Image Search Click Search to go to the interface as shown below. Choose “Picture”—“Local”. Set time: Select date and choose the start and end time. Click to search the images. Double click a file name in the list to view the captured photos as shown above.
  • Page 46: Video Search

    Network Camera User Manual Click to return to the previous interface. The descriptions of the buttons are shown as follows. Icon Description Icon Description Close: Select an image and Close all: Click this button to click this button to close the close all images.
  • Page 47 Network Camera User Manual Description Icon Description Icon Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Watermark Speed up display Enable / disable audio; drag the slider to adjust the volume after enabling audio.
  • Page 48: Appendix

    Network Camera User Manual Network Camera User Manual Appendix Appendix 1 Q & A How to find the password? A:Reset the device to the default factory settings. Default IP: 192.168.226.201; User name: admin; Password: 123456 Fail to connect devices through IE browser. A: Network is not well connected.
  • Page 49 Network Camera User Manual Q:No sound can be heard. A:Audio input device is not connected. Please connect and try again. B: Audio function is not enabled at the corresponding channel. Please enable this function.
