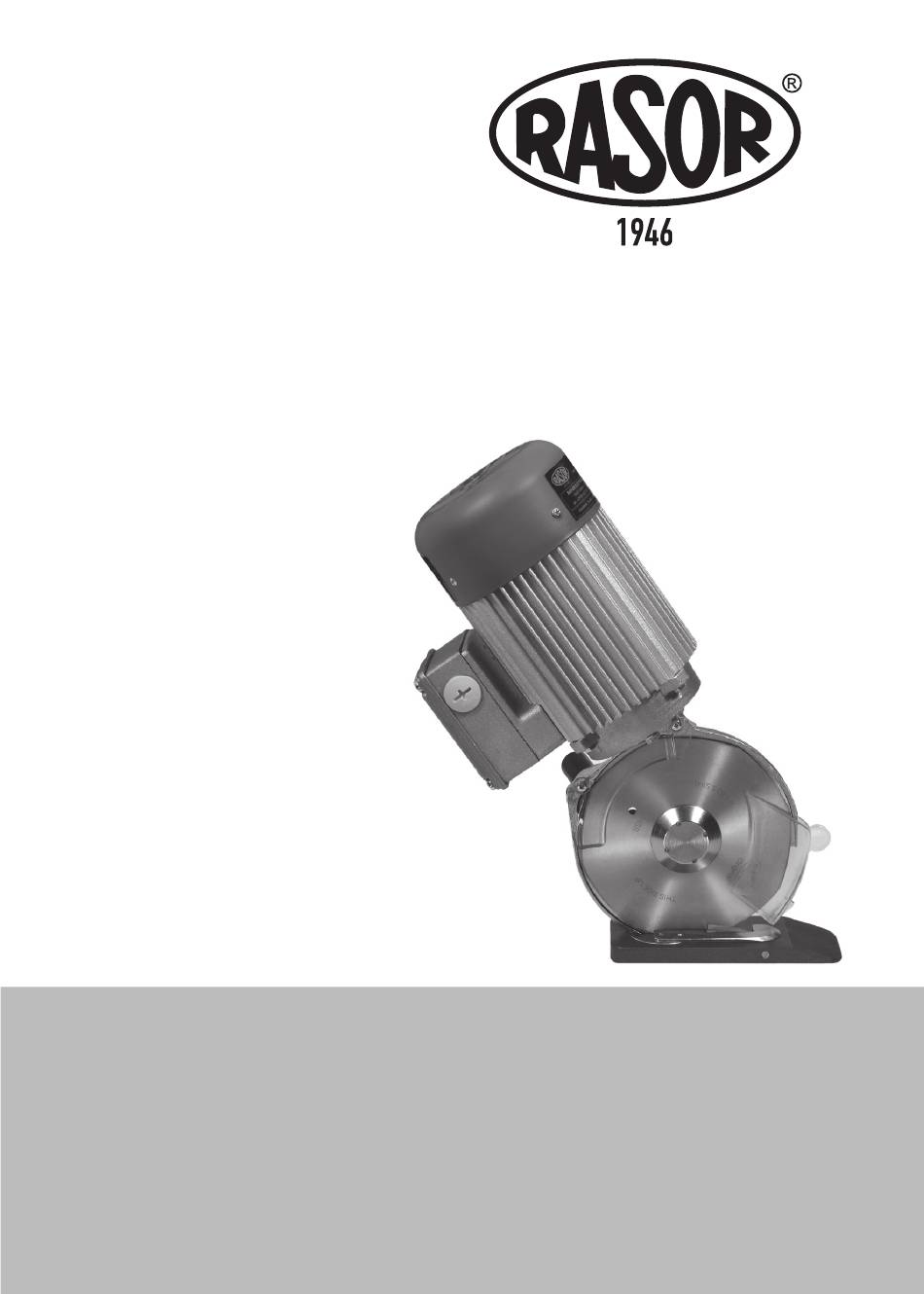

- Page 1 GRT12SX THREE-PHASE CUTTING UNIT USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of cutting unit GRT12SX and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit GRT12SX must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model R EAD S H E A R I N G T H E Serial number GRT12SX R ISK INSTRUCTION 0,52 Electric data MANUAL Year of production... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a cutting unit model GRT12SX which can be assembled on automatic machines (e.g. spreaders, computerized cutting, etc.) by means of proper holes located in the motor support. GRT12SX can operate continuously and it can cut at various heights by means of multiple installation. - Page 7 (without any sound wave filtering system), vary in the extent of few db (A). NOTE It is advisable for cutting unit GRT12SX owners to verify the compliance with the local law concerning safety at work. 7. FIELD OF APPLICATION...
-
Page 8: Use Warnings
• Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. • It is allowed to assemble cutting unit GRT12SX on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
6) Carry out the cutting operation. NOTE Cutting unit GRT12SX can work in a fixed position (the material has to be moved) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling. -
Page 10: Blade Sharpening
To carry out this operation, remove the protective plug “A” located on the motor support of the cutting unit and fill it with lubricating grease Rasor. Screw plug “A” again a few turns. Screw plug “A” a few turns every 2-3 working days (see picture 9). -
Page 11: Blade Replacement
5) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it, so that the Rasor writing can be seen by the operator. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION Check the distance between the blade and the counterblade Check the kind of material Sharpen the blade The material is not cut or it gets stuck Check the material thickness between Check the compatibility between blade and material the blade and the counterblade Make sure that the motor turns correctly Reduce the feeding speed... - Page 13 ® dal 1946...
-
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
