6.1 AbsSrs Diagnostic Testing
Please follow these steps to finish ABS/SRS system diagnostic
testing procedure:
1.
Turn the ignition on but do not start the engine.
2.
Turn on the scan tool and wait for the Main Screen to appear.
3.
Select AbsSrs icon in the Main Screen. (Figure 3.1)
4.
Select a specific vehicle manufacture's regional coverage.
(Figure 6.1)
5.
From the vehicle make screen, select a specific vehicle
manufacture and press OK button. (Figure 6.2)

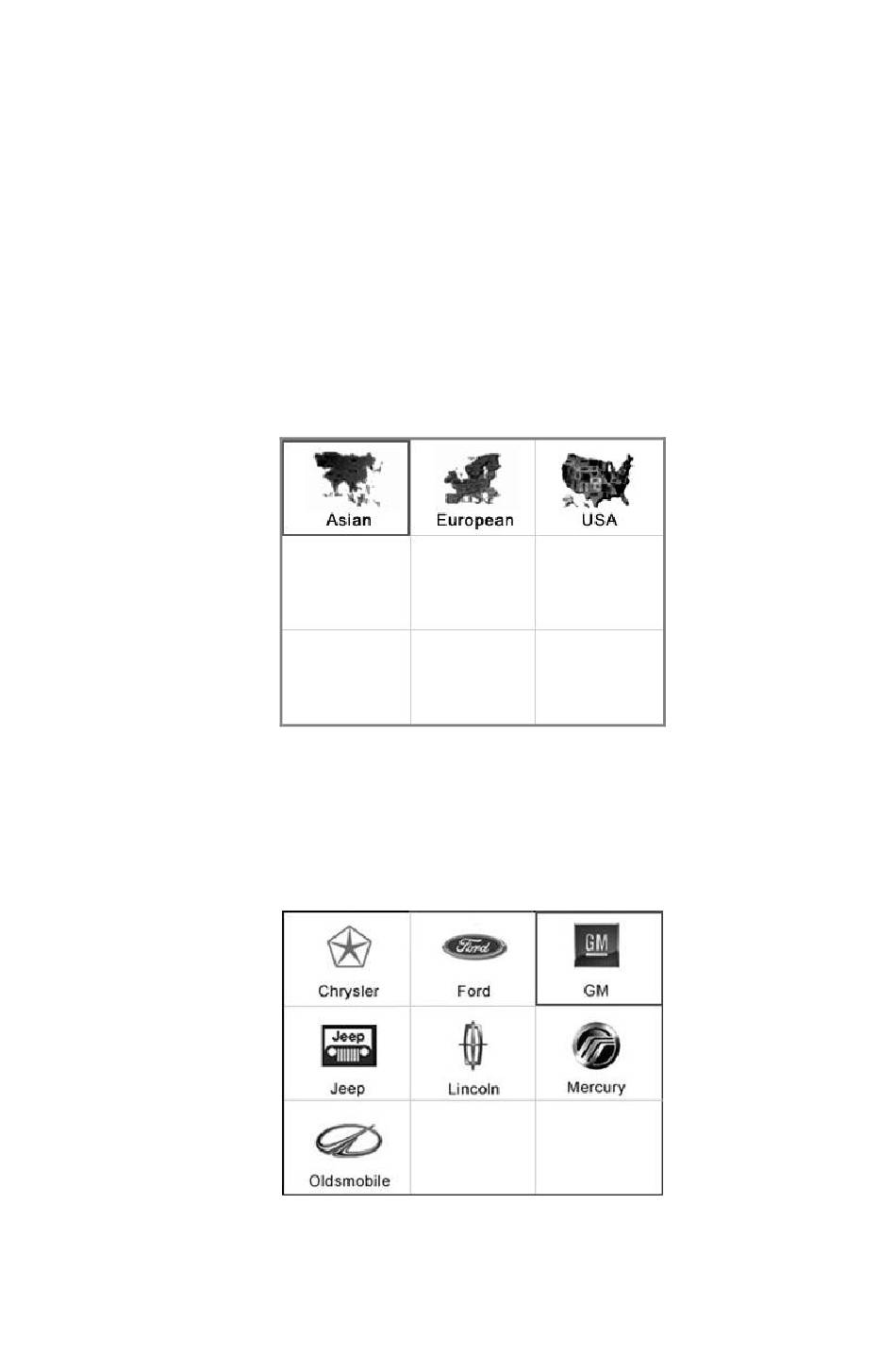

Figure 6.1
Figure 6.2
49
