4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet
(See drawings 3.1 & 3.2).
5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing
(See drawings 4.1 & 4.2).
14
35
16
Sand tank installation:
1.
Place the tank support base at the selected location.
2.
Place the tank on the tank support base (See drawing 5.1).
3.
Connect the motor pre-filtering assembly unit to the tank support base (See
drawing 5.2). NOTE: Ensure the pre-filter housing water inlet hose connection
is facing towards the pond.
IMPORTANT: Some countries, especially in the European community,
require the product to be secured to the ground or to a base in a
permanent upright position. Check your local authorities to determine if
there is a regulation in your area regarding pond filter-pumps. If yes, then
the product can be mounted to a platform using the two holes located in
the base. See drawing 5.3.
The product can be mounted on a cement base or onto a wooden
platform to prevent accidental falling over.
The mounting holes are 6.4 mm in diameter and spaced 177.4 mm
apart.
Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
SAVE THESE INSTRUCTIONS
(128GS) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 10/28/2011

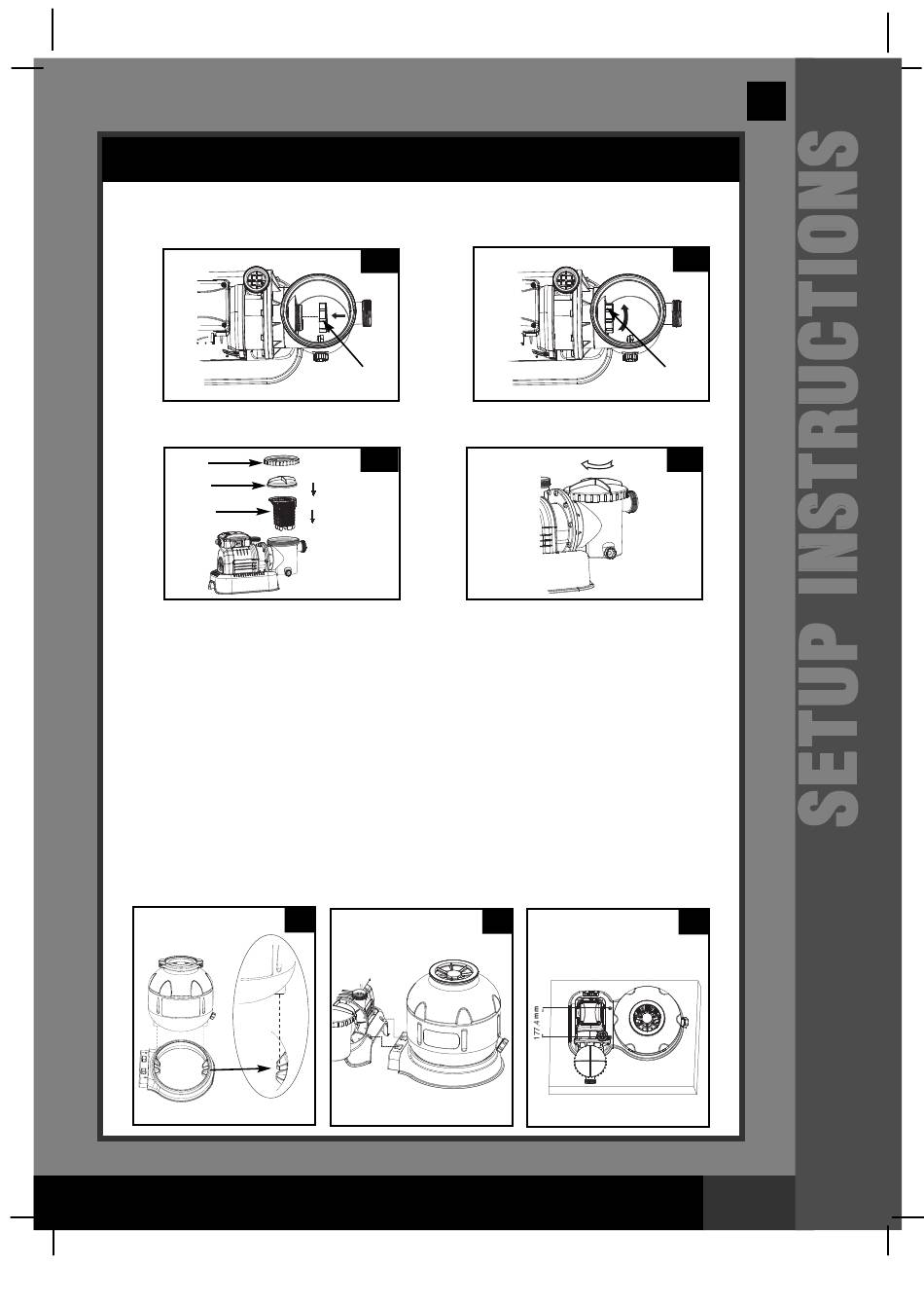

SETUP INSTRUCTIONS (continued)
3.1
17
4.1
5.1
17
5.2
128
English
GS
3.2
4.2
5.3
Page 9
