Intex PureSpa SSP-H-10-2 Owner's Manual

Intex PureSpa SSP-H-10-2 Owner's Manual

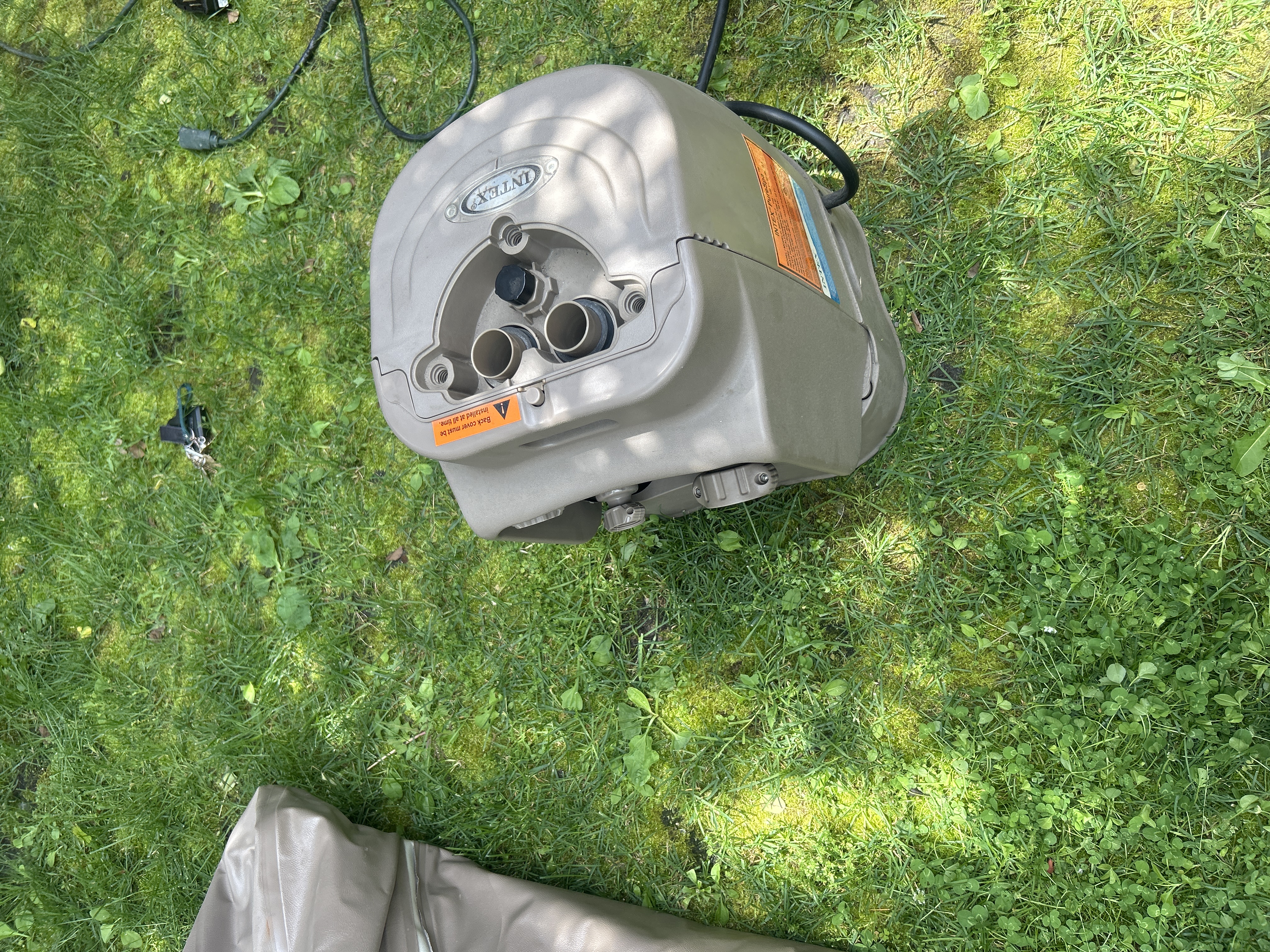

Hot bubbler pump. 110-120 v~, 60 hz, 12 a
Hide thumbs

Advertisement

Table of Contents

PureSpa™
SSP-H-10-2
110-120 V~, 60 Hz, 12 A
For illustrative purposes only.
Do not forget to try these other fi ne Intex products: pools, pool
accessories, in-home toys, airbeds and boats available at fi ne
retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifi cations and appearance, which may
result in updates to the instruction manual, without notice.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacifi c Time
(254PO) SPA ENGLISH 7.5" X 10.3" PANTONE 295U 05/12/2017
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
IMPORTANT!
254
English
PO
254-*PO-R0-1805

Advertisement

Table of Contents
loading

Related Manuals for Intex PureSpa SSP-H-10-2

Summary of Contents for Intex PureSpa SSP-H-10-2

  • Page 1 SSP-H-10-2 110-120 V~, 60 Hz, 12 A For illustrative purposes only. Do not forget to try these other fi ne Intex products: pools, pool accessories, in-home toys, airbeds and boats available at fi ne retailers or visit our website. Due to a policy of continuous product improvement, Intex reserves the right to change specifi...

  • Page 2: Table Of Contents

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English TABLE OF CONTENTS Warning..................3-4 Parts....................Set-up..................... 7-11 Operation..................LED Code Chart................13 Maintenance and Chemicals............14-18 Storage................... 19 Troubleshooting................20 Filter pump motor disassembly........... 21 Warranty..................22 Changes or modifi cations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 3: Warning

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following. READ AND FOLLOW ALL INSTRUCTIONS DANGER • Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children.
  • Page 4 • Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen. • Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex service center for further direction.

  • Page 5: Parts

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English PARTS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. Page 5 S AVE THESE INSTRUCTIONS...
  • Page 6 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English PARTS (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. PART NO. REF. DESCRIPTION QTY. 4 ADULTS 6 ADULTS 28403 28405 28407...

  • Page 7: Set-Up

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English PRODUCT SPECIFICATIONS Maximum seating capacity: 4 adults 6 adults Water capacity: 210 gal (795 L) 290 gal (1098 L) Inner/outer diameter: 57/77 in (145/196 cm) 65/85 in (165/216 cm) Height: 28 in (71 cm) Bubble air blower: 1.1 HP / 110-120 V / 60 Hz...
  • Page 8 Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. Safety Sign Card Posting The Safety Sign card included with the manual shall be posted in an area visible to the users of the spa to alert them of the safety rules and warnings.
  • Page 9 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SET UP (continued) Press the button to turn on the control unit panel buttons fi rst. Press the button to infl ate the spa tub wall for 8 to 10 minutes until it is fi rm to the touch but not hard (see drawing 6).
  • Page 10 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SET UP (continued) IMPORTANT The spa tub infl ation/defl ation valve incorporates an “air pressure release” function that automatically releases excess air when the spa tub internal pressure is between 1.5 - 2.5 psi (0.103 - 0.172 bar). Air pressure release valve.
  • Page 11 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SET UP (continued) Spa Control Unit Installation Connect the spa control unit to the spa tub (see drawing 10). Hand-tighten the connectors securely. Do not use tools to tighten. Reinstall the back cover (2) to the spa control base (see drawing 11). CAUTION: Back cover must be installed before using the SPA.

  • Page 12: Operation

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English OPERATION SPA CONTROL UNIT PANEL A: Heat Button B: Celsius/Fahrenheit Toggle Button C: Temperature Increase Button D: Temperature Decrease Button E: Water Filter Button F: Bubble Button G: LED Display H: On/Off Button Once the unit is plugged in, use this button to active the control unit panel On/Off Button:...

  • Page 13: Led Code Chart

    Reassemble the control unit back to the tub. Plug the GFCI/RCD and restart all over again. • If problem persists, contact Intex Service Center. Water temperature sensor broken • Contact Intex Service Center. After 72 hours of continuous heating operation, the pump will • Press the button to re-active the hibernate automatically.

  • Page 14: Maintenance And Chemicals

    Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of spa water, chemicals or water damage.
  • Page 15 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SPA WATER CHEMISTRY AND BALANCE Preferred Water Chemistry Reading Minimum Ideal Maximum 2 ppm 2 - 4 ppm 5 ppm Free Chlorine 7.2 - 7.6 60 ppm 80 ppm 120 ppm Total Alkalinity (TA) 100 ppm 150–250 ppm...
  • Page 16 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SPA WATER CHEMISTRY AND BALANCE (continued) SPA Water Adjustment How to adjust the spa water chemistry when the levels are off the range. CAUTION: Always follow the chemical manufacturer’s directions, and the health and hazard warnings. Total Alkalinity (TA) Adjustment Remove the spa cover to aerate the water and use the included test strips to check the chemistry level.
  • Page 17 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English SPA WATER CHEMISTRY AND BALANCE (continued) Lowering pH Lowering pH Using Muriatic Acid Volume 210 gal (795 L) 290 gal (1098 L) Total Alkalinity 120 ppm 80 ppm 120 ppm 80 ppm 0.028 qt 0.018 qt...
  • Page 18 (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English MAINTENANCE Spa Tub Drainage Turn off the spa control unit. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area (see drawing 14). Remove the drain valve cap from outside of the spa tub and attach the drain valve adaptor to the drain valve (see drawing 14).

  • Page 19: Storage

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English MAINTENANCE (continued) Spa Tub and Cover Air Bladder Repair Use the enclosed repair patch to repair any puncture: • Clean and dry the area to be repaired thoroughly. • Remove the patch backing paper and press patch fi rmly over the puncture. Smooth out the surface to remove any air bubbles under the patch.

  • Page 20: Troubleshooting

    BUBBLE AIR BLOWER • Air blower pump is too hot. restart all over again. DOES NOT WORK • If problem persists contact Intex Service Center. • Clean or replace the fi lter cartridge in time. FILTRATION PUMP • Dirty fi lter cartridge.

  • Page 21: Filter Pump Motor Disassembly

    (254PO) SPA ENGLISH 7.5” X 10.3” PANTONE 295U 05/12/2017 English FILTER PUMP MOTOR DISASSEMBLY IMPORTANT: You must drain out any remaining water inside the piping system of the control base before replacing any parts. Tools required: One adjustable wrench and one Philip screwdriver. NOTE: The “special wrench tool”...

  • Page 22: Warranty

    WARRANTY Your PureSpa has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only to the PureSpa listed below. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable.
