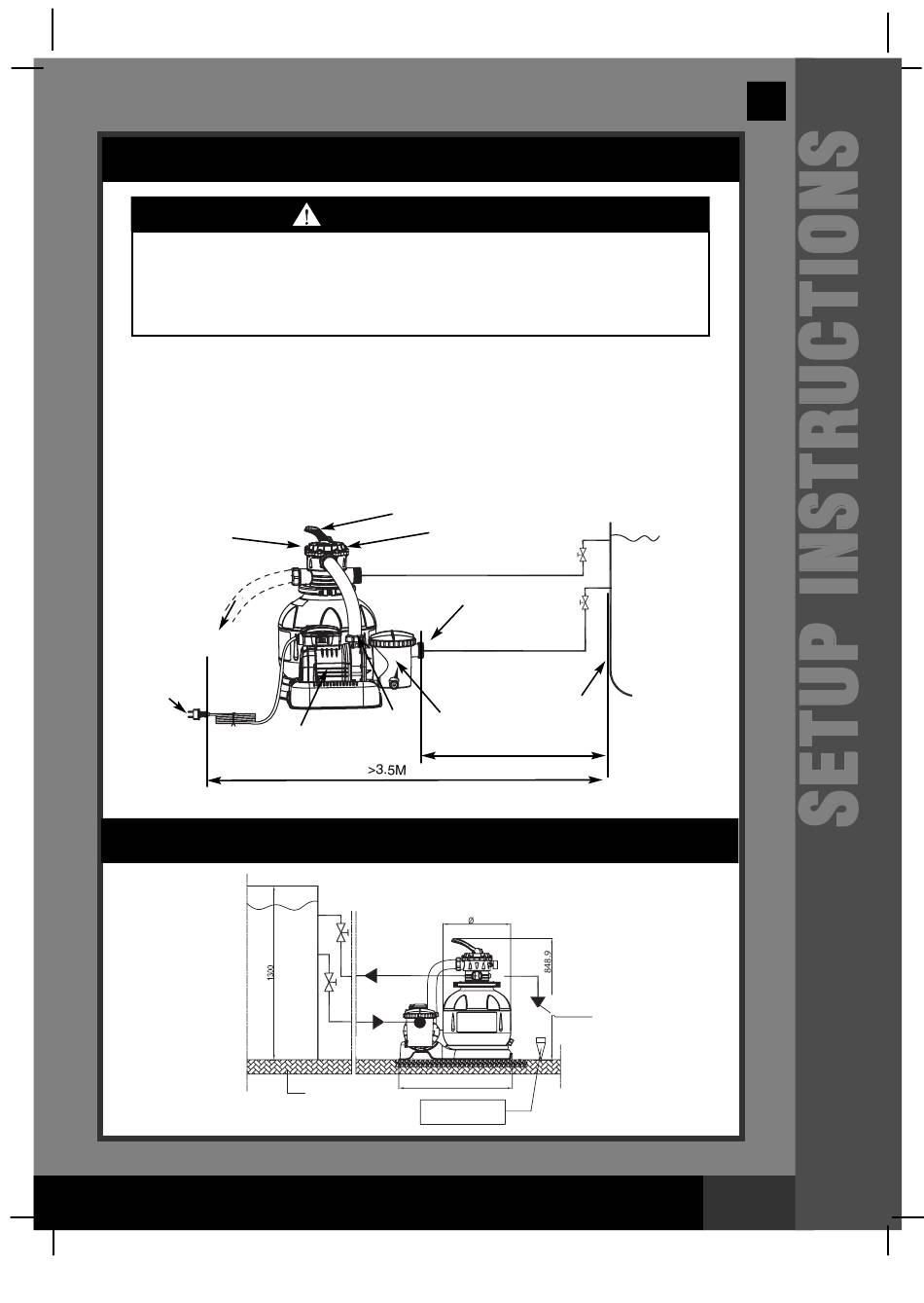

SAND FILTER PUMP HOSE CONNECTION SETUP
• Keep this product more than 2m away from the pond.
• Keep the plug of this product more than 3.5m away from the pond.
• Position this product away from the pond, so as to prevent children from
climbing on it and accessing the pond.
The 6-way valve has three hose connection ports.
1. Connect one hose end to the pre-filter inlet and the other end of the hose to the
lower plunger valve with the strainer. Ensure the hose nuts are securely tightened.
2. Connect the second hose between the 6-way valve water outlet and the upper
plunger valve with the inlet-nozzle. Ensure the hose nuts are securely tighten.
3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed
to a proper draining receptacle using a hose or pipe (not provided). Remove the drain
cap before attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pond.
WATER
INLET
TO
DRAIN
POWER
CORD
SAVE THESE INSTRUCTIONS
(128GS) MODEL SF20220R SAND FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 10/28/2011
WARNING
6-WAY VALVE
L-SHAPE
O-RING
MOTOR
PRE-
WATER
MOTOR
FILTER
OUTLET
INSTALLATION EXAMPLE
Solid bads gravel
or crushed rock
691.7
ground
Socket outlet on a Faultcurrent
circuit breaker<30mA
(installation side)
WATER LEVEL
WATER INLET
OUTSIDE
LINER WALL
>2M
(ILLUSTRATION NOT TO SCALE)
459
