(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 05/26/2022

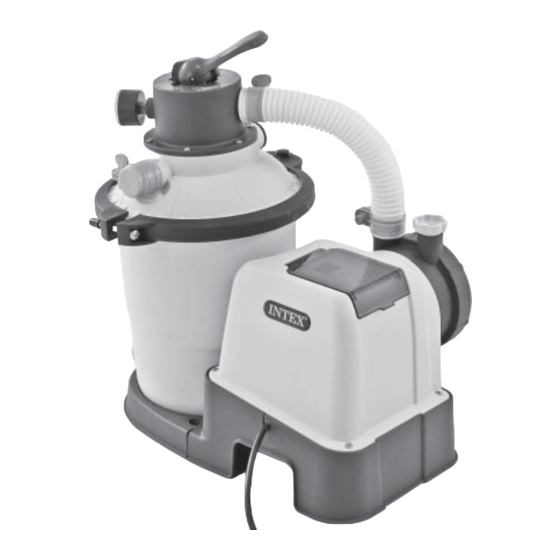

Krystal Clear™ Sand Filter Pump

Certified Model Number SF40220RC

220 - 240 V~, 50 Hz, 90 W

Hmax 3.0 m, Hmin 0.19 m, IPX4

Max. Water Temperature 35 °C

For illustrative purposes only.

Don't forget to try these other fine Intex products: pools, pool

accessories, inflatable pools and in-home toys, airbeds and boats

available at fine retailers or visit our website.

Due to a policy of continuous product improvement, Intex reserves

the right to change specifications and appearance, which may

result in updates to the instruction manual without notice.

®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays

sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet

in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong &

Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans

l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,

Ettenseweg 46, 4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21

Holborn Viaduct, London EC1A 2DY, UK.

www.intexcorp.com

IMPORTANT

SAFETY RULES

Please read, understand, and follow all

instructions carefully before installing

and using this product. Keep for future

reference.

Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/

Gedruckt in China.

354

English

354-*GS-R0-2305

Table of Contents

Need help?

Do you have a question about the Krystal Clear SF40220RC and is the answer not in the manual?

Questions and answers

Summary of Contents for Intex Krystal Clear SF40220RC

Page 1 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V.,...
Page 2: Table Of Contents
Warnings..................3 Parts References................Setup Instructions................ 6-10 Product Specifications..............Operating Instructions..............11-13 Intex Pools Operating Time Table..........14 Non-Intex Pools Operating Time Table........15 Maintenance.................. Long Term Storage................ 16 Troubleshooting Guide..............17 Common Pool Problems............... 18 General Aquatic Safety..............18 Limited Warranty................
Page 3: Warnings
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • Always supervise children and those with disabilities. •...
Page 4: Parts References
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 4...
Page 5 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. REF. NO. DESCRIPTION QTY.
Page 6: Setup Instructions
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English PRODUCT SPECIFICATIONS The sand filter removes suspended particles but does not sanitize your pool. Pool chemistry is a specialized area and you should consult your local pool service specialist for details.
Page 7 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English SETUP INSTRUCTIONS ( continued ) Sand loading: IMPORTANT: Use No. 20 silica sand or glass sand with particle size range 0.45 to 0.85 mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75. Only use the filter media specified by the manufacturer.
Page 8 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English SETUP INSTRUCTIONS ( continued ) WARNING Improper tank valve and clamp assembly could cause the valve and clamp to blow off and cause serious injury, property damage or death. 4-way valve installation: Make sure the tank o-ring (5) is in place (see drawing 7).
Page 9 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English SETUP INSTRUCTIONS ( continued ) Motor installation: Make sure a hose o-ring (6) is on the pump motor outlet. Connect the sand filter interconnecting hose (13) to the pump motor outlet with a hose clamp (see drawing 11). Connect the pump motor unit to the tank support base (see drawing 12.1).
Page 10 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English SAND FILTER PUMP HOSE CONNECTION SETUP WARNING • Keep this product more than 3.5 m away from the pool. • Keep the plug of this product more than 4 m away from the pool and at a height of 1.2 m at least.
Page 11: Operating Instructions
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English OPERATING INSTRUCTIONS WARNING • Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault circuit interrupter (GFCI) or residual current device (RCD). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI/RCD.
Page 12 “BACKWASH” under “initial startup and operation” section. Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the flow to diminish and the pressure to rise. Remove any vacuuming device from the system and check if the pressure gauge reading has dropped from the yellow zone to the green zone.
Page 13 (354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English OPERATING INSTRUCTIONS (continued) Operating the system under “TIMER” mode or manually: To operate the sand filter pump in “FILTER” mode under “TIMER” control: 1. Activate the unit: Press button.
Page 14: Intex Pools Operating Time Table
This table shows the required operating time for average use of the sand filter pump with above ground pools. If the system is attached to an “Intex Saltwater System” unit, the filter pump running time should be longer than the required operating time of the Intex Saltwater System unit.
Page 15: Non-Intex Pools Operating Time Table
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English NON-INTEX POOLS OPERATING TIME TABLE This table shows the required operating time for average use of the sand filter pump with above ground pools. Sand filter pump operating time...
Page 16: Maintenance
(354GS) MODEL SF40220RC SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 05/26/2022 English POOL CARE & CHEMICALS • All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water.
Page 17: Troubleshooting Guide
• An air leak on the intake hose. • Tighten hose clamps, check hose for damage. • Faulty motor or the impeller is jammed. • Contact Intex service center. 4-WAY VALVE/ • Sand tank o-ring missing. • Remove 4-way valve cover and ensure the o-ring is in place.
Page 18: Common Pool Problems
• Finger tighten all caps. • The drain valves are loose. SEDIMENT ON • Dirt or sand on pool • Heavy use, getting in and • Use Intex pool vacuum to clean POOL BOTTOM floor. out of pool. of pool.
Page 19: Limited Warranty
Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your Sand Filter Pump, or Intex or its agents’...
