- Page 1 INSTRUCTION MANUAL PORTABLE HYDRAULIC 999 3166.4 REV 1 F09 / 49617 F13 / 49618 POWER UNITS Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. © 1999 Greenlee Textron 12/99...
-
Page 2: Table Of Contents

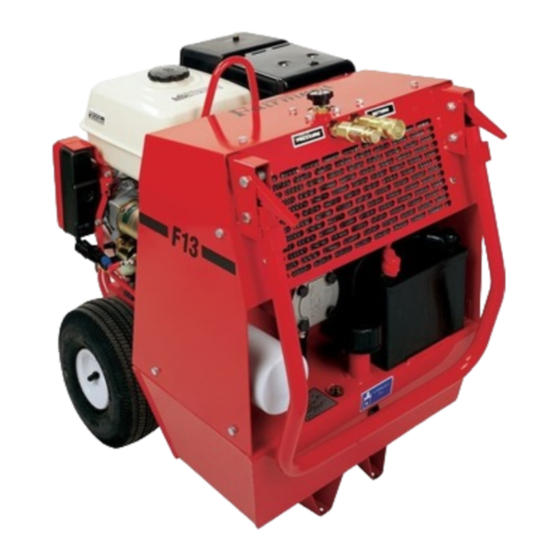

The Fairmont Portable Hydraulic Power Units are lightweight power sources intended for use with open- center hydraulic tools. The F09 provides a variable flow of 18.9 to 37.9 liters per minute (5 to 10 gallons per minute) and a maximum pressure of 124 Bar (1800 psi). -
Page 3: Important Safety Information
F09 and F13 Portable Hydraulic Power Units IMPORTANT SAFETY INFORMATION SAFETY ALERT SYMBOL This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage. The signal word, defined below, indicates the severity of the hazard. -
Page 4: Important Safety Information
F09 and F13 Portable Hydraulic Power Units IMPORTANT SAFETY INFORMATION • Do not operate power unit without safety guards in place. • Keep all parts of the body and loose clothing away from the engine fan. Engine, exhaust system, and other components will be hot during and after operation. -
Page 5: Identification
F09 and F13 Portable Hydraulic Power Units Identification Parts of the F09 and F13 Portable Hydraulic Power Units 1. Gasoline-Powered Engine 2. Serial Number 3. Hour Meter 4. Lifting Hook 5. Battery 6. Hydraulic Reservoir Cap 7. Hydraulic Oil Sight Gauge Greenlee Textron / Subsidiary of Textron Inc. -
Page 6: Specifications
F09 and F13 Portable Hydraulic Power Units Specifications Overall Physical Dimensions Mass/Weight (Dry) ... 64 kg (143 lbs) Length ... 673 mm (26.5") Width ... 508 mm (20.0") Height ... 699 mm (27.5") Battery Output ... 12 Volts Hydraulic Characteristics Type of Hydraulic System ... -
Page 7: Hoses And Fittings
F09 and F13 Portable Hydraulic Power Units Hoses and Fittings Installation and Maintenance See publication 999 3032.3, SAE J1273 (Hose and Hose Assemblies). Replacement Refer to a Fairmont catalog or publication 999 1032.2, Low Pressure Quick Couplers, Adapters and Hoses. -
Page 8: Operation
F09 and F13 Portable Hydraulic Power Units Operation Fuel is flammable and explosive. • Stop engine before filling fuel tank. • Do not fill fuel tank when engine is hot. • Do not fill fuel tank near an open flame, sparks, or when smoking. -
Page 9: Operation
F09 and F13 Portable Hydraulic Power Units Operation (cont’d) Transportation Use appropriate lifting equipment. Make sure all components used to lift this power unit are rated for 90 kg (200 lbs) and are securely attached to the frame of the power unit. Inadequate components may fail and cause the power unit to fall, resulting in injury or property damage. -
Page 10: Maintenance
F09 and F13 Portable Hydraulic Power Units Maintenance Skin injection hazard: Oil under pressure easily punctures skin causing serious injury, gangrene or death. If you are injured by escaping oil, seek medical attention immediately. • Do not use fingers or hands to check for leaks. -
Page 11: Troubleshooting
F09 and F13 Portable Hydraulic Power Units Troubleshooting Before troubleshooting, determine whether the problem is in the tool, the hoses, or the power source. Substitute a tool, hoses, or power source known to be in good working order to eliminate the item that is not operating. -
Page 12: Exploded View
F09 and F13 Portable Hydraulic Power Units Exploded View Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070... - Page 13 F09 and F13 Portable Hydraulic Power Units Greenlee Textron / Subsidiary of Textron Inc. 47 46 4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070...
-
Page 14: Parts List
F09 and F13 Portable Hydraulic Power Units Parts List UPC NO. 49684 49626 49685 49627 49686 49687 49628 49630 49631 49688 49689 49690 49632 49691 49692 49693 49694 49695 49644 49696 49645 49697 49698 49699 49651 49700 49701 49702 49703... -
Page 15: Parts List
504 9731.6 Fan ... 1 504 9732.4 Manifold, Hydraulic ... 1 504 9733.2 Engine, Honda 9 H.P., for F09 only ... 1 504 9614.0 Engine, Honda 13 H.P., for F13 only ... 1 504 9734.0 Hood ... 1 504 9735.9 Foot, Rear ... - Page 16 Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Drive, Rockford, IL 61109-2988 USA Customer Service (International): 815/397-7070 • Fax: 815/397-9247 Customer Service (North America): 800/435-0786 • Fax: 800/451-2632, 815/397-1865 Canada Fax: 800/524-2853 Printed in the U.S.A.
