Features Include:
•
Less than 0.5mm thick (aerial element - excluding connector)
4G ready - a built in filter removes any signals received from 4G mobile phone
•
transmitters which would cause interference & channel loss on TVs
High gain and low noise built-in amplifier
•
•
Suitable for Digital/HD TV reception in strong signal areas
•
Receives all locally available digital TV signals
•
Thin profile ideal for positioning behind picture frames
•
Can be painted to match the surface it is to be mounted on
•
Choice of USB or mains powering for signal amplifier
•
Supplied with 1.5m USB lead and USB mains adaptor
Installation Instructions

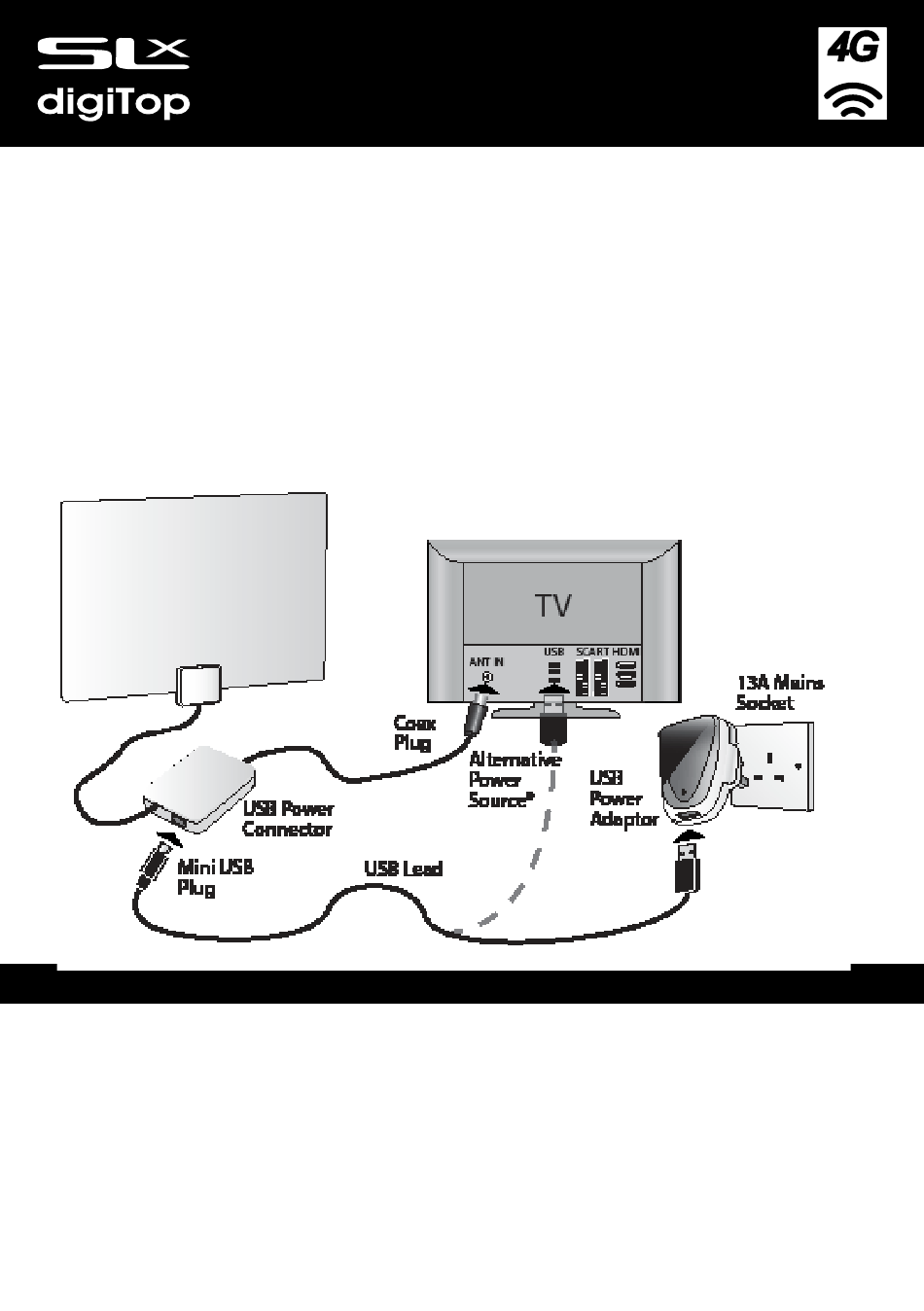

1. Plug the mini USB plug on the USB lead supplied into the USB power connector, plug the other end
into the USB power adaptor which is then plugged into a mains socket as shown in Fig. 1.
*Alternatively the USB lead can be powered by any unused USB socket on a TV (available on most
recent TVs) or computer.
2. If your TV has a built-in digital tuner, connect your aerial to the RF input on your TV using the
integrated coax cable supplied.
Alternatively you can use your aerial to provide TV signals to Freeview™ boxes, PVRs, VCRs and other
set top boxes. Connect the coax plug on your aerial lead to the ANT IN socket on your set top box and
connect the set top box to your TV using an HDMI, SCART or RF lead as appropriate (follow your set top
box instructions).
Ultra Thin Amplified Indoor Aerial
User GUIde
Fig. 1
27801rG
Ready
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SLX 27801RG
Summary of Contents for SLX 27801RG
- Page 1 Ultra Thin Amplified Indoor Aerial Ready User GUIde 27801rG Features Include: • Less than 0.5mm thick (aerial element - excluding connector) 4G ready - a built in filter removes any signals received from 4G mobile phone • transmitters which would cause interference & channel loss on TVs High gain and low noise built-in amplifier •...
- Page 2 Aerial positioning and tuning You can attach the aerial to almost any flat vertical surface using the 2cm diameter adhesive pad supplied (peel off the backing on one side the adhesive pad and stick it to the balun in the position shown opposite).
