SLX 27778RG User Manual

27778RG
Features Include:
This aerial is 4G ready - which means it
•
removes interference & channel loss from
your TV caused by 4G mobile phone signals
High gain and low noise built-in amplifier
•
Suitable for Digital TV in strong signal areas
•
Compact design
•
Adjustable gain control
•
Installation Instructions
1. Plug the integrated aerial coax lead (Fig. 1)
from the aerial into the antenna (RF)
input on your set-top box, or TV.
2. Connect a SCART lead from the SCART
output on your set-top box to your TV.
Alternatively, connect an aerial coax lead
(not supplied) from the RF output on
your set-top box to the aerial input
on your TV (if in doubt check the
instructions for your set-top box).
3. Switch on the variable gain control
and set to maximum amplification
(turn control clockwise as far as it will go).
4. Rotate and tilt the UHF loop antenna to
obtain the best reception (see Fig. 2).
5. Adjust gain control to obtain best picture signal.
Connecting an alternative RF source
The RF IN coaxial socket on the back of the aerial
(See Fig. 1) allows an alternative video source, such
as an outdoor aerial, cable TV, a video game, or
satellite receiver to be connected to your TV via the
aerial. This saves you having to keep connecting and
disconnecting the coaxial cable running to your TV
and also saves wear and tear on the TV coaxial socket.
To select the signal from the aerial, switch on the
gain control. The red power LED on the front of the
aerial will light up, while this LED is lit the signal sent
to your TV will be from the indoor aerial. To switch to
an alternative video source connected via the RF IN
coaxial socket simply switch off the gain control
(power LED is not lit).
Football Amplified Indoor Aerial
User GUIde

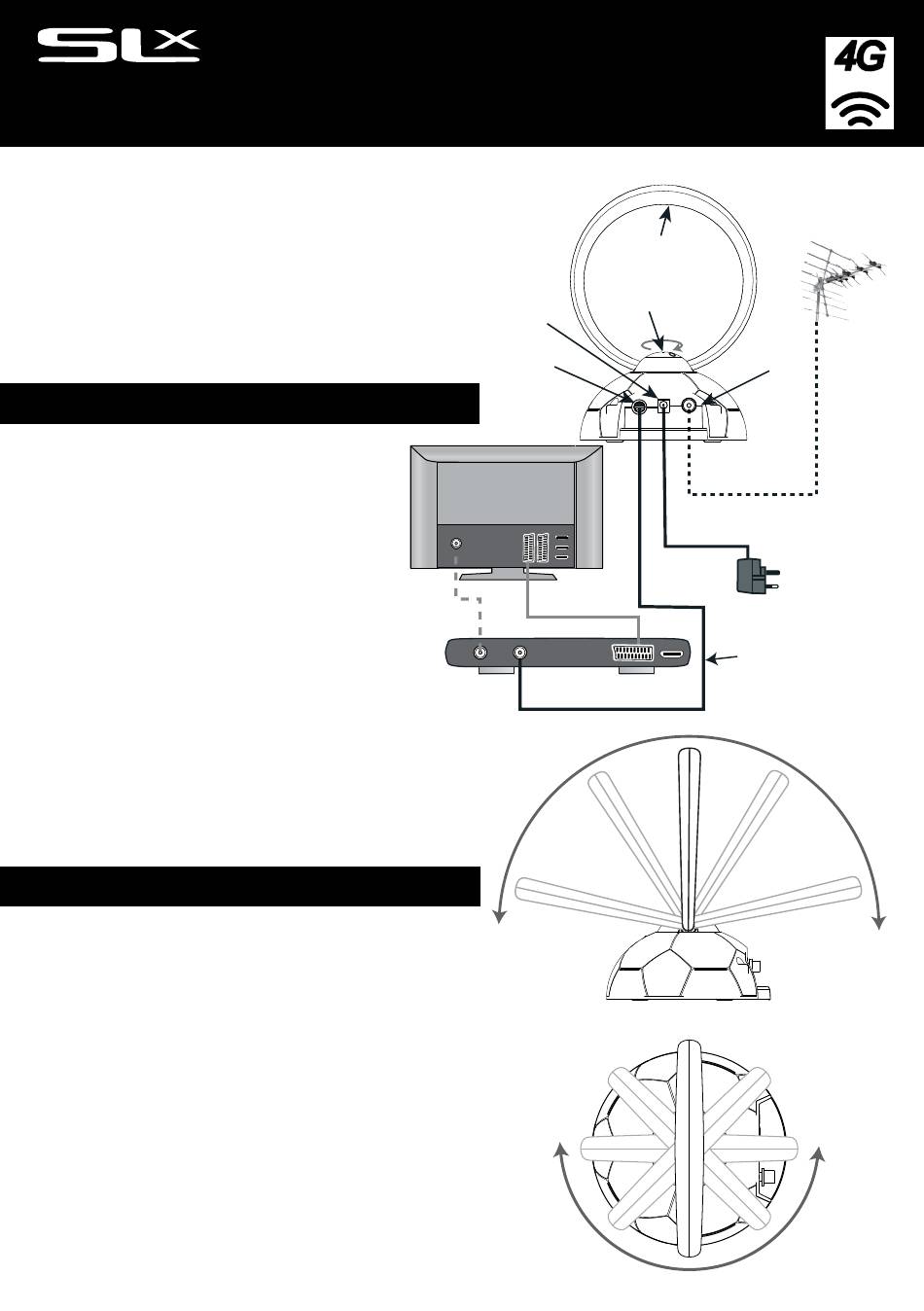

Aerial Coax
(not supplied)
Fig. 1
Gain Control
DC In
RF Out
TV
ANT IN
- OR -
Lead Scart/HDMI Lead
(not supplied)
RF IN SCART/
OUT
HDMI
Set-Top Box
Fig. 2
Fig. 3
(sold separately)
Aerial
Loop
Variable
RF In
External
Aerial
Downlead
YL3 Mains
Adaptor
Integrated
Aerial Coax
Connects direct to
TV ANT IN if Freeview™
receiver built in
Ready
External
Aerial
Lead -
