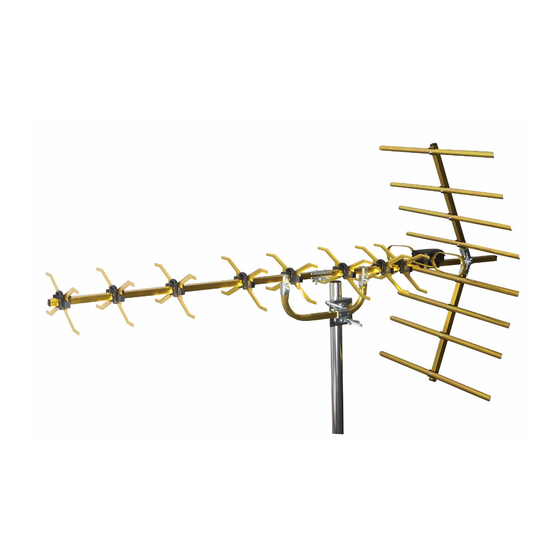

Congratulations on the purchase of your high gain wideband aerial which is designed to receive locally available digital TV signals.
This aerial is also 4G ready - the design restricts bandwidth to prevent interference & channel loss on your TV caused by signals from 4G
mobile phone transmitters. This aerial has been manufactured to the standard required to get the best reception of digital terrestrial
TV services (such as Freeview™). If the aerial is to be used for DTT reception check before installation at http://www.dtg.org.uk/
industry/coverage.html to confirm that your home is in a coverage area and to find out where your local transmitter is.
For optimum results install the aerial using double screened digital coax cable and screened coax outlets.
Main Features
•
Wideband - suitable for all UK TV reception areas, covering frequency range 460-790MHz
•
Receives digital TV signals
•
Perfect for use in the majority of locations although in very high strength signal areas an
attenuator may be required, or for very weak strength signal areas an amplifier may be needed
The aerial requires some assembly - please read these instructions carefully before beginning.

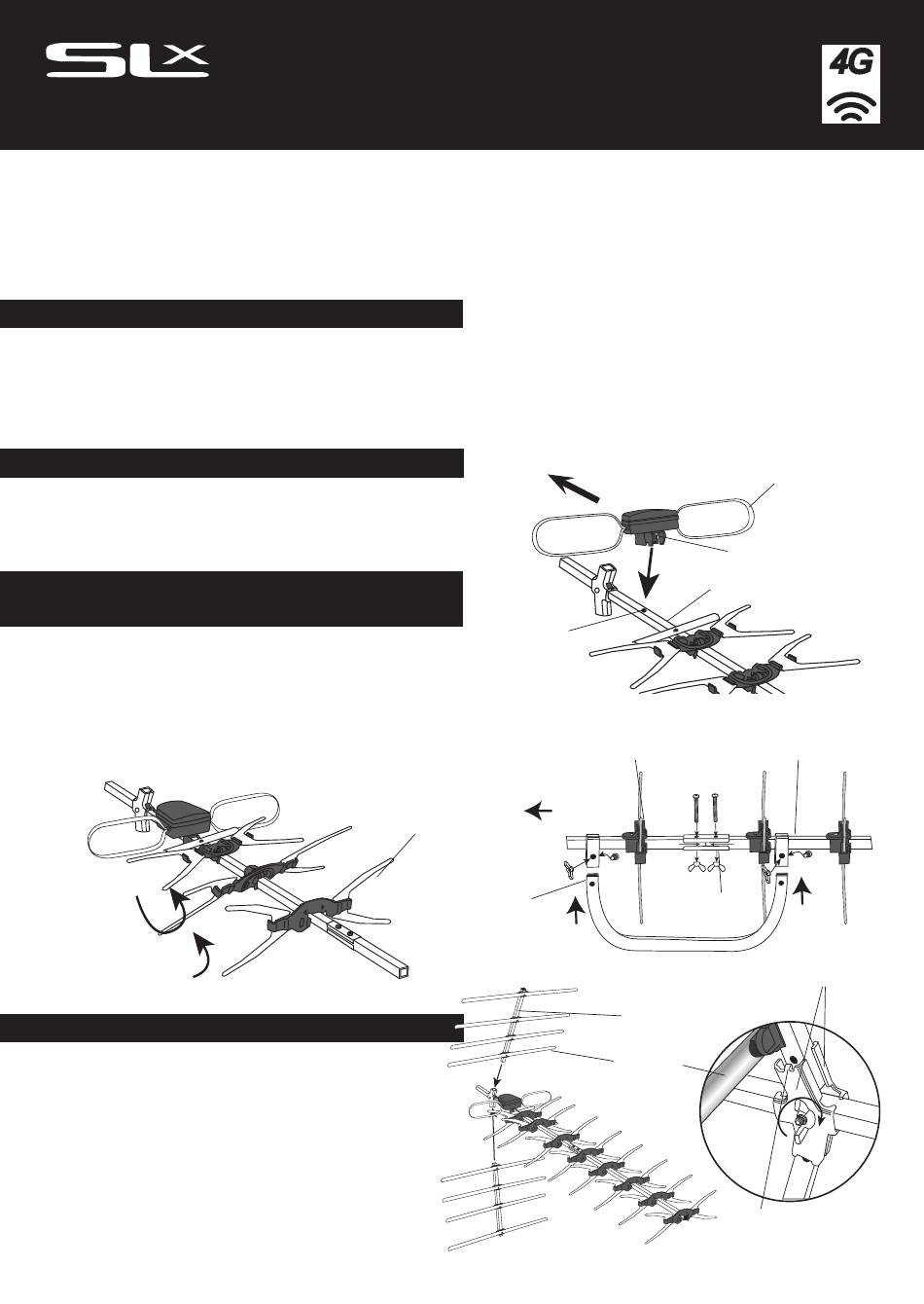

A. Fitting the dipole assembly
The dipole clips onto the central boom. Ensure that the cable exit
hole (from the terminal box) faces the rear of the aerial and that
the locating stud fits into the locating hole on the boom as
shown in Fig. 1.
B. Rotating aerial elements, central
boom and centre mount assembly
1. Rotate the elements about the central fixing clip until they
'snap' into an upright position as shown in Fig. 2.
2. The central boom comes in two sections using the bracket
supplied and the holes drilled in the boom sections join these
two sections as shown in Fig. 3.
3. Attach centre mount bracket in the position shown using the
clips supplied.
Fig. 2
rotate elements
C. Fitting the reflectors
1. Using the reflector clamps, screw and large wing nut, fix
the reflector assemblies to the main aerial boom.
2. Check that the reflector clamp tabs locate in the holes
of the reflector boom sections and that the wing nut
is tight - see Fig. 4.
2. Ensure that the reflector elements are facing towards the
front of the aerial (convex surface forward).
48 Element Digital TV Aerial
UsER GUiDE
element
in upright
position
centre mount
bracket with
clips, bolts and
wing nuts
Fig. 4
rear of aerial
Fig. 1
central boom
locating
hole
central boom
back section
Fig. 3
3rd
Element
Back of aerial
reflector boom
assembly
reflector
element
Ready
dipole
locating stud
central boom
front section
4th 5th
Element Element
joining
bracket
reflector
clamps
engage
tab in hole
