Digitronic CamCon DC16 S5LX4S Manual
  1. Manuals
  2. Brands
  3. Digitronic Manuals
  4. Switch
  5. CamCon DC16 S5LX4S
  6. Manual

Digitronic CamCon DC16 S5LX4S Manual

Digital cam switch unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

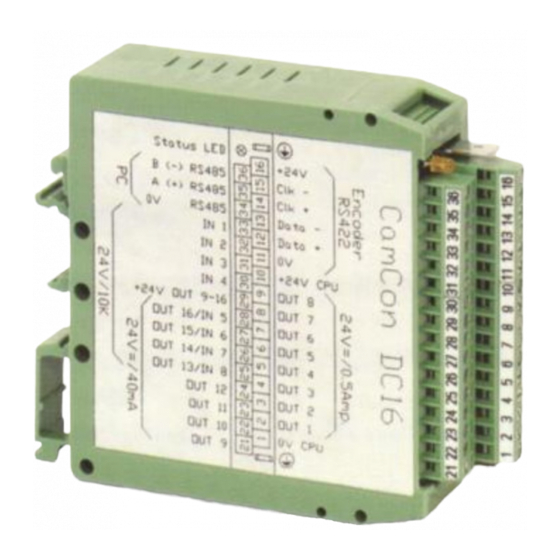

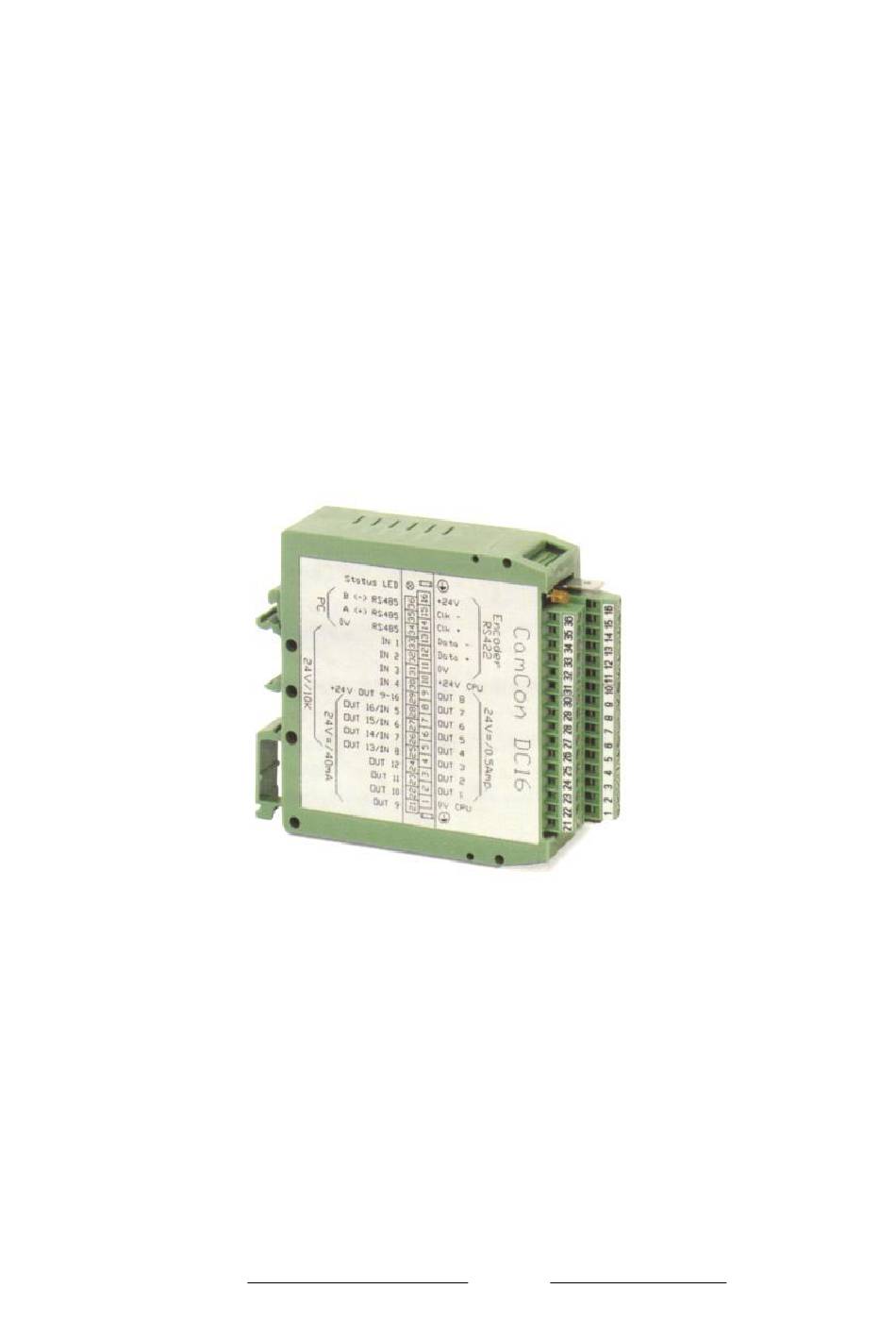

Digital Cam Switch Unit
CamCon DC16
Digitronic Automationsanlagen GmbH
Steinbeisstraße 3 • D - 72636 Frickenhausen • Tel. (+49)7022/40590-0 • Fax -10
Auf der Langwies 1 • D - 65510 Hünstetten-Wallbach • Tel.(+49)6126/9453-0 • Fax -42
Internet: http://www.digitronic.com • E-Mail: mail@digitronic.com
