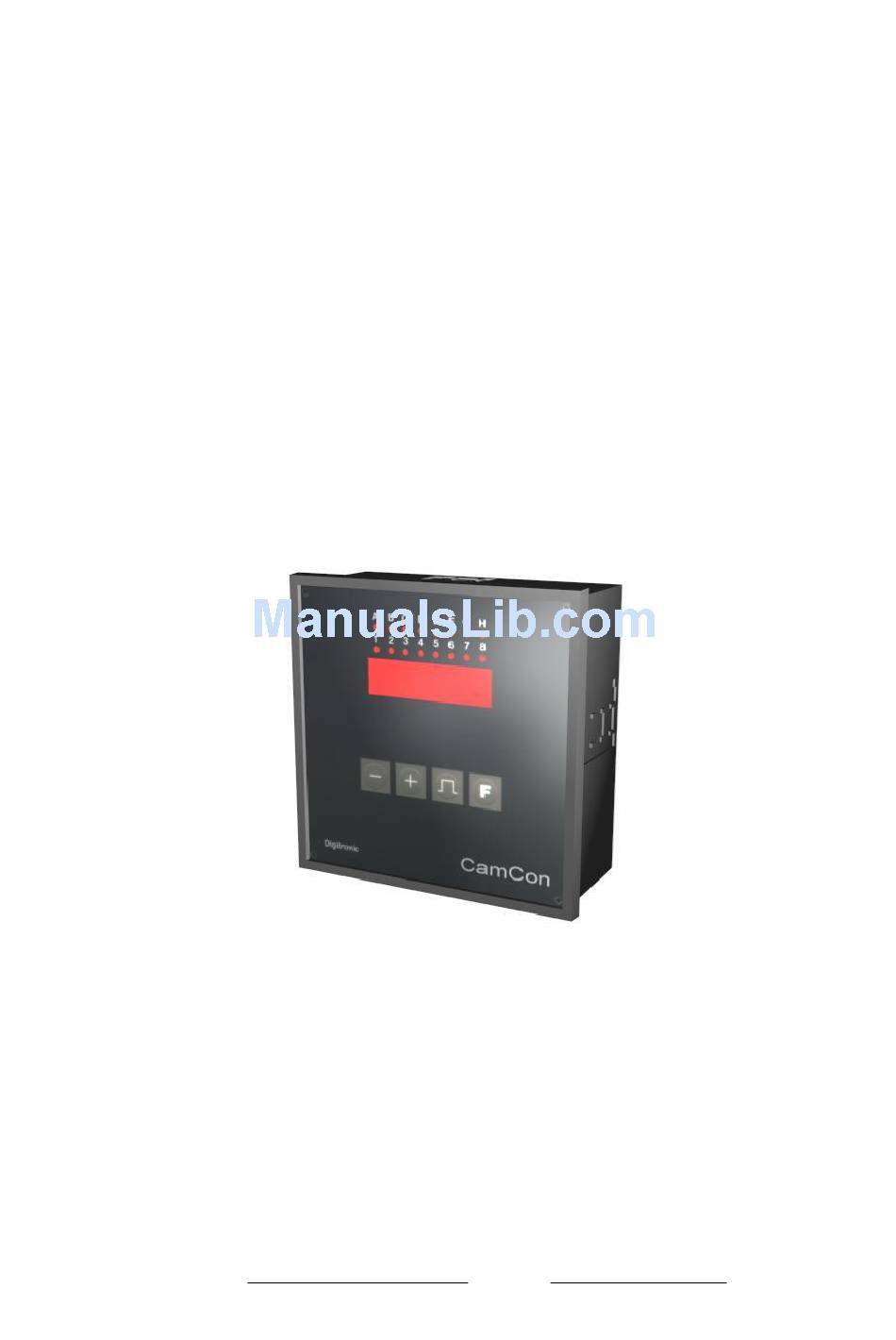

Digital Cam Switch Unit
CamCon DC33/X
with 8 programs
Digitronic Automationsanlagen GmbH
Steinbeisstraße 3 • D - 72636 Frickenhausen • Tel. +49 7022 40590-0 • Fax -10
Auf der Langwies 1 • D - 65510 Hünstetten-Wallbach • Tel. +49 6126 9453-0 • Fax -42
Internet: http://www.digitronic.com • E-Mail: mail@digitronic.com
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitronic CamCon DC33/X
Summary of Contents for Digitronic CamCon DC33/X
- Page 1 Digitronic Automationsanlagen GmbH Steinbeisstraße 3 • D - 72636 Frickenhausen • Tel. +49 7022 40590-0 • Fax -10 Auf der Langwies 1 • D - 65510 Hünstetten-Wallbach • Tel. +49 6126 9453-0 • Fax -42 Internet: http://www.digitronic.com • E-Mail: mail@digitronic.com...
-
Page 2: Millenium
The CamCon DC33/X and this instruction manual are protected by copyright. All rights are reserved. Neither the CamCon DC33/X, nor this document may be copied as a whole or partially, photocopied, reproduced, translated or transferred to electronic media of any kind or into machine readable format without prior written permission by the company Digitronic Automationsanlagen GmbH. -
Page 3: Table Of Contents
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs TABLE OF CONTENTS 1. Introduction ............................5 2. Operating Pinciples..........................6 2.1. Speed Compensation ........................7 2.1.1. Measuring delay time for Speed Compensation................9 2.1.1.1. Measuring delay time through actual differences ............... 9 2.1.1.2. - Page 4 Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.5.6. Examples for cam programming in the programming mode "1"..........22 6.5.6.1. Cam programming ........................22 6.5.6.2. Deletion of cams ........................22 7. Outline of operations.......................... 23 7.1. Switching the standard display......................23 7.2.
-
Page 5: Introduction
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 1. Introduction Electronic Cam Switch Units have been successfully used in industry for a long time. Experiences collected in close liaison with users over the years have been included in the development of the CamCon series. -
Page 6: Operating Pinciples
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 2. Operating Pinciples Diagram: Principles of a Cam Switch Unit A principle for better comprehension of the function of a Cam Switch Unit is here presented. It has 3... -
Page 7: Speed Compensation
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 2.1. Speed Compensation Each mechanical switch component (e.g. shield, magnetic valve) has a delay time, i.e. the time between the start signal and the actual switching of the contacts. In processes where positioning is executed on a moving system, this can cause problems. - Page 8 Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs A small example in figures was designed to eludicate: Supposing the drive cylinder with the measuring system has a circumference of 360mm, so that one millimeter of the circumference corresponds to exactly one angle degree of the measuring system.
-
Page 9: Measuring Delay Time For Speed Compensation
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 2.1.1. Measuring delay time for Speed Compensation Several ways of measuring delay time of a relay or valve are available. 2.1.1.1. Measuring delay time through actual differences First the switch-ON point of a valve or relay is programmed. We assume that the programmed switch point lies at 200 degrees in this case. -
Page 10: Installation
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 3. Installation The unit is inserted into a cutout for front plate installation (see chapter "3.1. Dimensions" on page 10). Connect the groundig pins on the back of the encasement as well as the cable cover to a grounding point of the switchboard door in the shortest possible way. -
Page 11: Electrical Connections
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 4. Electrical connections 4.1. Pin allocation CamCon with 16 outputs and 8 programs Pin 1: 0V for encoder Pin 2: Data A or + Pin 3: Data B or -... -
Page 12: The Encoder
The encoder is used for getting the actual position, necessary for the cam controller. Only encoders with an SSI interface can be connected to CamCon DC33/X. The SSI interface is a common interface for absolute single and multiturn encoders. The CamCon supplies the measuring system with 24Volt via this interface. -
Page 13: Outline Of The Operator Terminal
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 5. Outline of the operator terminal 5.1. Frontview CamCon 5.2. The output display The output display shows the current states of the outputs. If a LED is illuminated, the corresponding output is active. -
Page 14: Commissioning
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6. Commissioning Before activating the device for the first time, please check its wiring (see chapter 4. Electrical connections). Attention: With induced loads the outputs have to be switched with a freewheeling diode. -
Page 15: The Encoder Resolution
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.2.2. The encoder resolution The display shows the resolution of the encoder in steps per rotation. The CamCon operates with a standard encoder with a resolution of 360 steps per rotation. The resolution cannot be adjusted or changed. -
Page 16: Cam Programming In Programming Mode "0
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.4. Cam programming in programming mode "0" 6.4.1. Selecting a program The cam programming and the program selection are initiated as follows: Press the for about 2 seconds, until the display shows e.g.: means that e.g. -
Page 17: Shifting The Deactivation Point
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.4.6. Shifting the deactivation point Pressing the key once more leads you from the 'Activation point' mode into the 'Deactivation point' mode . CamCon will first search for the deactivation point of the current cam (e.g.:... -
Page 18: Examples For Cam Programming In The Programming Mode "0
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.4.8. Examples for cam programming in the programming mode "0" 6.4.8.1. Programming the first cam Task: After a complete deletion of the program memory and a successful initialization of the system, a cam shall be programmed in program 0 for output 2 from 100 to 200. -
Page 19: Programming Additional Cams On An Output
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.4.8.2. Programming additional cams on an output Task: A cam shall be programmed in program 0, on output 2 from 300 to 330 in addition to an already existing cam, e.g. -
Page 20: Deletion Of A Particular Cam
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.4.8.3. Deletion of a particular cam Task: You want to delete the cam from 300 to 330 in program 0, on output 2. Solution: Press the key (for about 2 sec.), until you enter the 'Program selection' mode: Press the key (for about 2 sec.), you enter the 'Output selection' mode... -
Page 21: Cam Programming In Programming Mode "1
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.5. Cam programming in programming mode "1" 6.5.1. Selecting a program The cam programming and the program selection are initiated as follows: Press the for, about 2 seconds, until the display shows e.g.: means that e.g. -
Page 22: Leaving Cam Programming
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 6.5.5. Leaving cam programming No matter in which programming mode you are, you can always leave cam programming by pressing key. The standard display appears 6.5.6. Examples for cam programming in the programming mode "1"... -
Page 23: Outline Of Operations
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 7. Outline of operations 7.1. Switching the standard display Display of program and speed display (min -1 ) Press the key shortly Position display Display of program and speed display (min -1 ) -
Page 24: Watch Doc
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 8. watch doc The CamCon deactivates all output within 1ms when an error occurs. This behavior can be used as an extreme error message. Program a cam over the whole range of a chosen output (0 to 360 degrees) (security cam). -
Page 25: Technical Data Of The Camcon
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 10. Technical data of the CamCon Multifunctional display for programming ..... 7-segment, 5-digits, 13mm Number of outputs ..........16 State display of the outputs......... a red LED each Number of programable cams ...... -
Page 26: Keyword Table
Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs 11. Keyword table Activation point, Shifting........................16; 21 Cable covers ............................10 Cam programming ........................16; 21; 23 Cam programming, Examples ......................18; 22 CE ................................2 Commissioning ............................14 Connections, electrical........................... - Page 27 Digitronic Digital Cam Switch Unit Automationsanlagen GmbH CamCon DC33/X with 8 programs Table of contents ............................. 3 Technical data............................25 Troubleshooting ............................. 24 Update ..............................2 User keys ............................... 14 watch doc............................... 24 Y2K ................................2 Zero point correction ..........................15 Version from: 18.06.2009...
