7.2 STEP 2 - ATTACHING THE MOTOR END

The Motor End is connected to the Height-Adjustable Column with a specially-made Top Plate.
NOTICE
Attaching the Motor End incorrectly could damage the DMD500. The following
guidelines apply during this stage of the assembly process. Failure to comply will void
warranty claims.
• Do not lift the DMD500 by its cable
• Ensure the Top Plate has been designed according to LOGICDATA specifications.
• Do not mount the Top Plate without the Rubber Washers
• Only use the Screws provided by LOGICDATA to mount the Top Plate
• Use a Torque Screwdriver to ensure the Screws are tightened to the recommended
torque of 2.5 - 3 Nm.

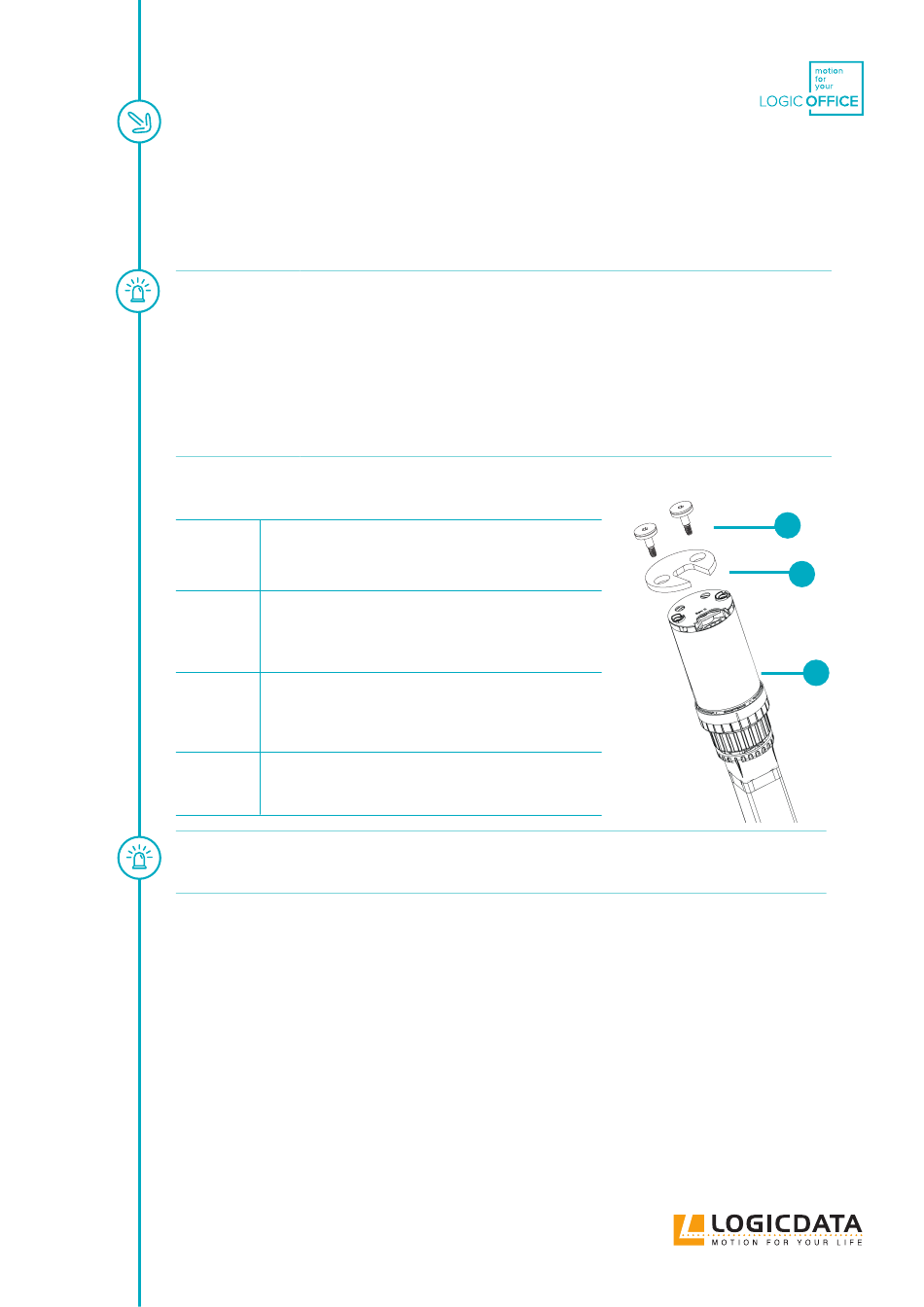

7.2.1 REQUIRED COMPONENTS

Mounting Screws and Rubber Washers
1
(Ordered separately: Contact LOGICDATA)
Top Plate (developed by Reseller: contact LOGICDATA
2
for specifications)
3 DMD500
Tool Torque Screwdriver
INFO
LOGICDATA provides specifications for the Top Plate only on request. These include
dimensions and tolerances, as well as notes on material selection and assembly.

7.2.2 PROCESS

To attach the Motor End of the DMD500:
1. Insert the Mounting Screws through the Top Plate into the holes at the top of the DMD500
2. Use the Torque Screwdriver to tighten the Screws to 2.5 - 3 Nm.
DMD500 - OPERATING MANUAL // PAGE 15
1
2
3
