2.3 Calibrate Sensor

ap sensor and reflective sensor should be calibrated separately.
G
First of all, please open the setup tool, enter "Printer Setup", choose paper sensor: gap sensor by
default. You could switch to reflective sensor according to your need.

2.3.1 Calibrate Gap Sensor

(1) Make sure gap sensor is selected through the setup tool.
(2) Lift the top cover to expose the media holder and the print head mechanism.

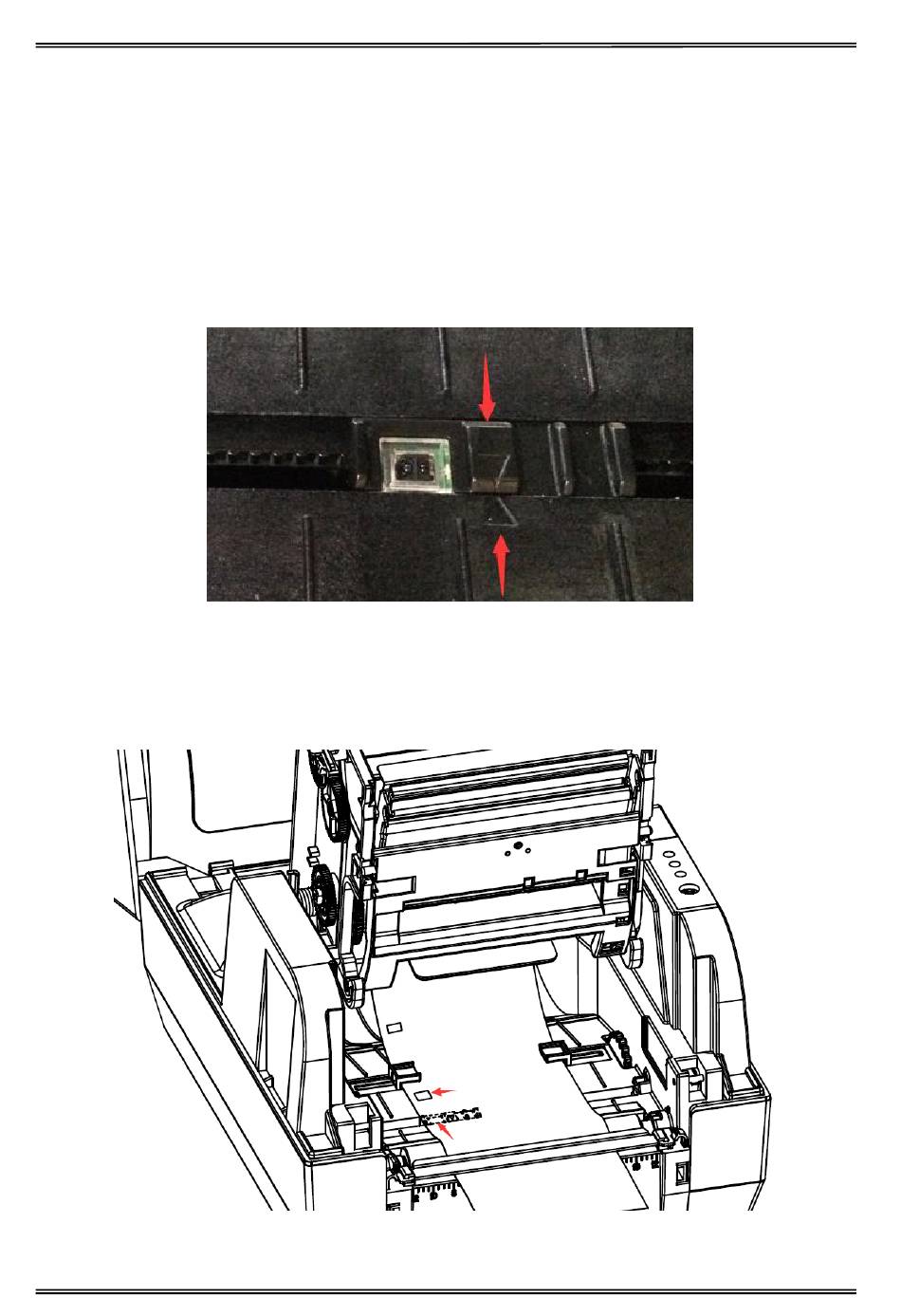

(3) Move around the sensor support so as to align its triangle with another triangle on the center
housing. As it is shown below:

2.3.2 Calibrate Reflective Sensor

(1) Select Reflective Sensor in the setup tool.
(2) Lift the top cover to expose the media holder and the print head mechanism.
(3) Align the black mark sign with the black mark sensor.
Black Mark Sign
Black Mark Sensor
