Tally Dascom DL-210

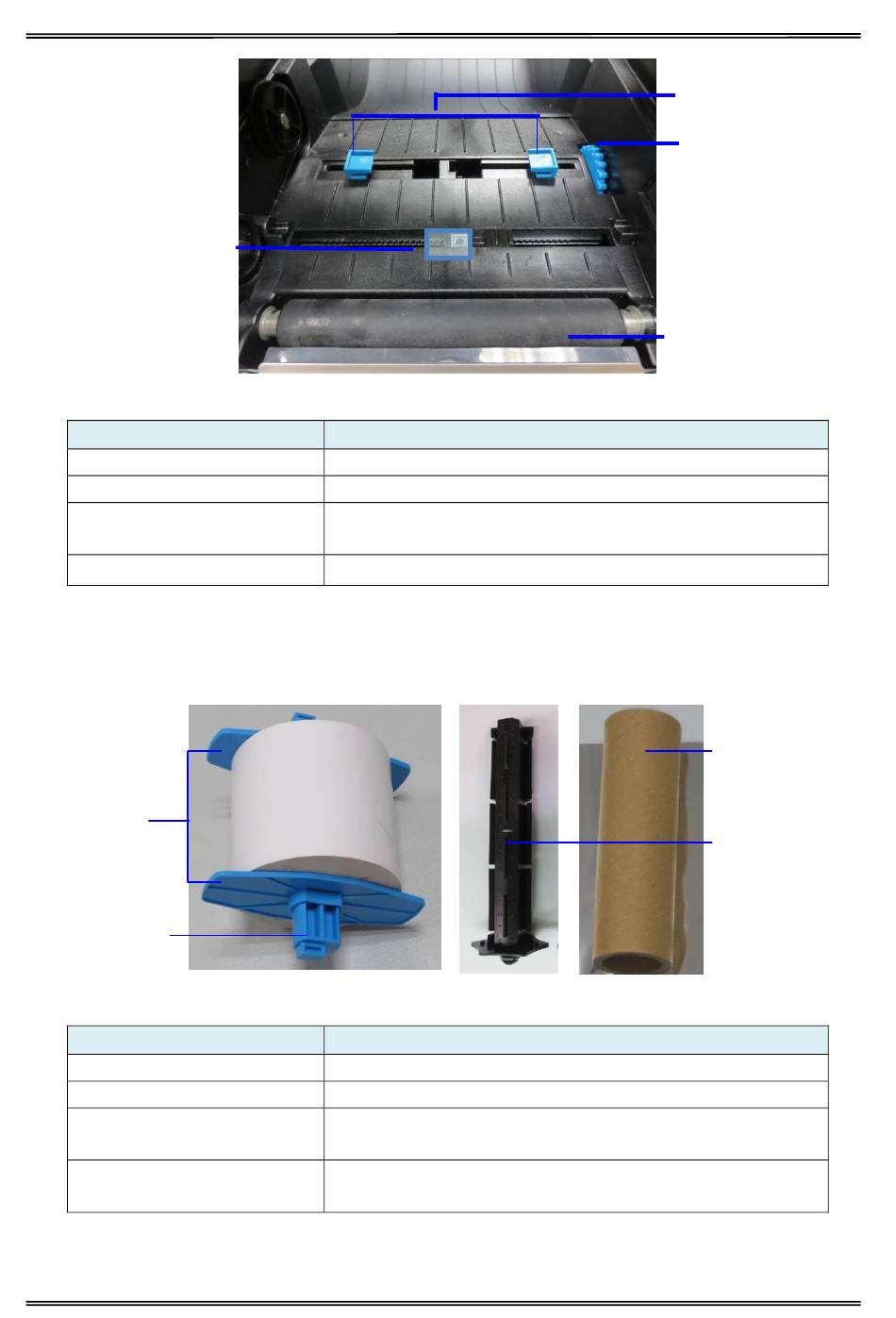

Black Mark Sensor
Component Name
Media Guide
Media Guide Adjustor
Black Mark Sensor
Platen Roller
Media Fixer
Media Spindle
Component Name
Media Spindle
Media Fixer
Ribbon Spindle
Ribbon Rewind Paper Core
Function
Align the media in the center of media path
Adjust the space between the two media guides
For detecting black mark. The sensor position can be adjusted
according to the black mark position.
For feeding paper
Function
Insert it into media core for supporting media
For fixing media (as the above figure shown)
Install it in ribbon holder for supporting ribbon or ribbon
rewind pipe
Stick the used end of ribbon to the pipe, rewind ribbon while
the pipe is turning
11
User Guide V1.3
Media Guide
Media Guide
Adjuster
Platen Roller
Ribbon
Rewind
Paper Core
Ribbon Spindle
