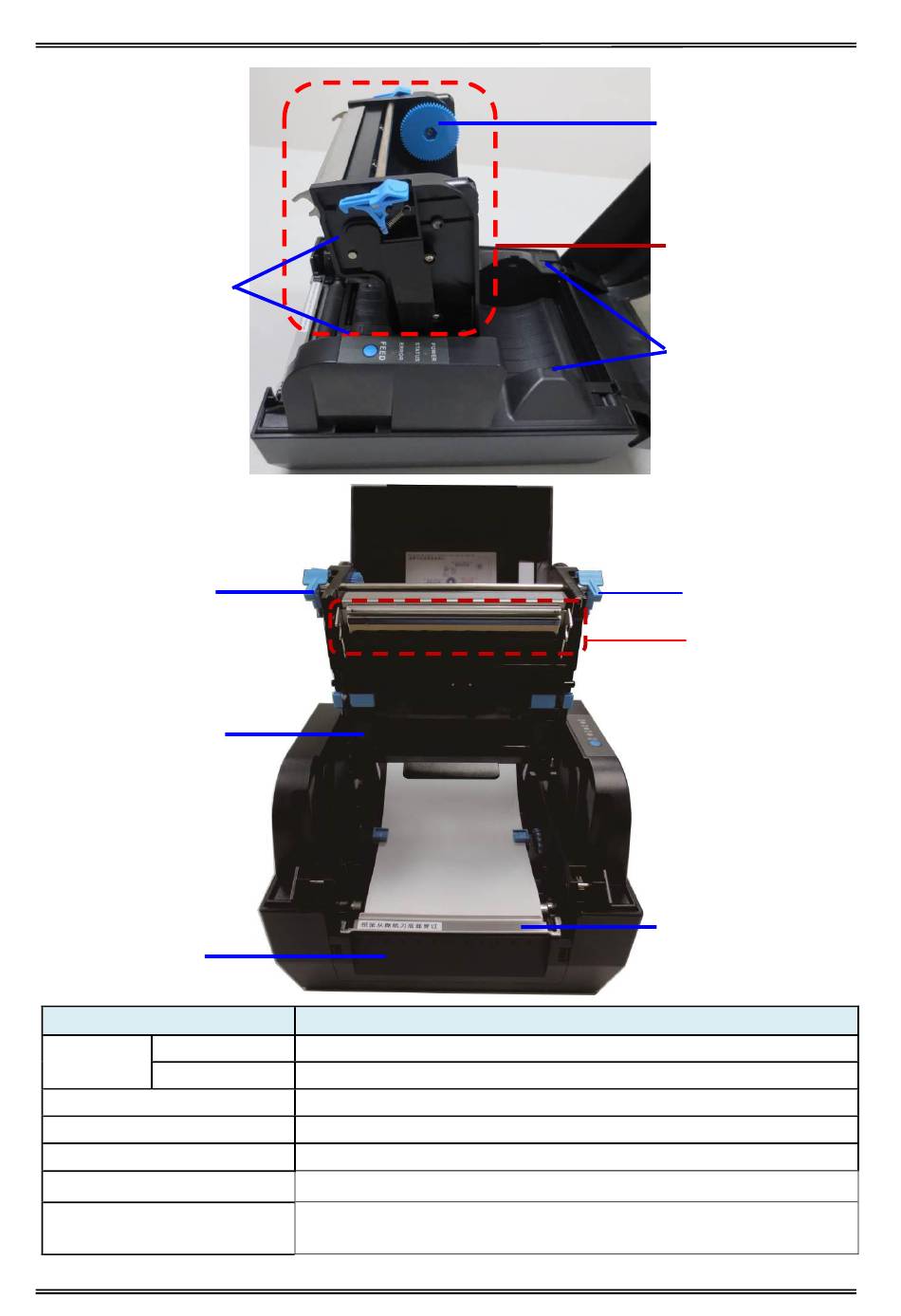

Tally Dascom DL-210
Ribbon Holder
Print Head Locking
Button
Ribbon Pick-up
Holder
Rotatable Board
Component Name
Ribbon Holder
Print Head
Mechanism
Print Head
Ribbon Pick-up Holder
Media Holder
Print Head Locking Button
Tear Bar
Rotatable Board
Function
For placing ribbon, lower seat for new ribbon, top seat for used ribbon.
Heat the ribbon and transfer
Turn the adjustor for stretching ribbon
For placing media
For closing or opening the print head mechanism
For tearing the media
Disassemble the rotatable board for installing optional kit: peeler or
cutter
10
User Guide V1.3
Ribbon Pick-up Holder
Print Head Mechanism
Media Holder
Tear Bar
to the media
imaging components
Print Head Locking
Button
Print Head
