Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
350/500/650-WATT AMPLIFIER
T-6350
350-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
T-6500
500-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
T-6650
650-WATT AMPLIFIER
SIGNAL
CLIP
PROT
TEMP
POWER
VOLUME
5
4
6
3
7
ON
2
8
OFF
1
9
0
10
T-6350
T-6500
T-6650

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-6350 and is the answer not in the manual?

Questions and answers

Related Manuals for ITC T-6350

Summary of Contents for ITC T-6350

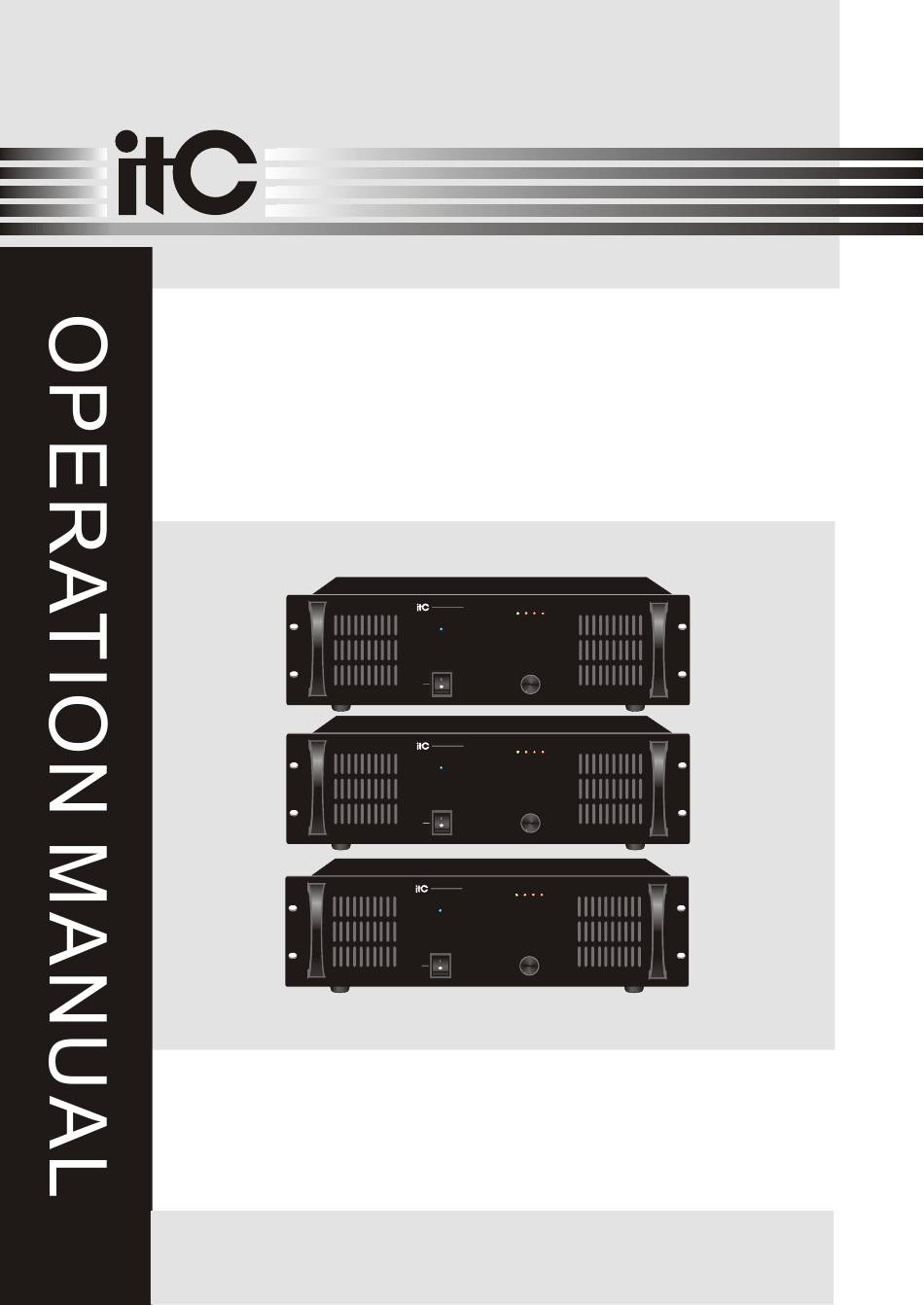

  • Page 1 PUBLIC ADDRESS SYSTEM T-6350 T-6500 T-6650 350/500/650-WATT AMPLIFIER T-6350 350-WATT AMPLIFIER SIGNAL CLIP PROT TEMP POWER VOLUME T-6500 500-WATT AMPLIFIER SIGNAL CLIP PROT TEMP POWER VOLUME T-6650 650-WATT AMPLIFIER SIGNAL CLIP PROT TEMP POWER VOLUME Please follow the instructions in this manual to obtain the optimum results from this unit.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel .........................6 4.2 Rear Panel ........................7 4.3 Rear Panel(24V) ......................8 5. CONNECTIONS 5.1 Speaker Connections ....................9 5.2 XLR Connections ......................9 6.

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
  • Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property...

  • Page 5: General Description

    2. GENERAL DESCRIPTION Heavy-duty public address power amplifiers deliver clean audio power from 350 to 650 watts RMS with less than 0.5% distortion. Rugged and overbuilt to provide years of reliable service they are equipped with torroridal transformers, extensive heat-sinking, forced fan cooling and protective circuits against short-circuit, clipping and over-temperature.

  • Page 6: Nomenclature And Functions

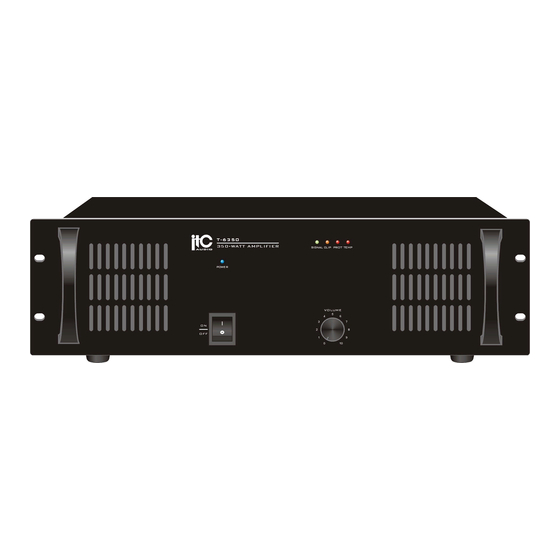

    4. NOMENCLATURE AND FUNCTIONS 4.1 T-6350-6500-6650 FRONT PANEL SIGNAL CLIP PROT TEMP POWER VOLUME 1. POWER SWITCH On top of the opening Power, Press the end, power shut down 2. VOLUME Channel volume control 3. TEMP Temperature Indicator 4. PROT Protection indicator LED Prot lit when over heat,short circuit and overloading.

  • Page 7: Rear Panel

    NOMENCLATURE AND FUCTIONS 4.2 T-6350-6500-6650 REAR PANEL INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- OUTPUTS COM 4-16 100V INPUTS LINK LIFT 8. AC POWER INPUT 9. COMMON SPEAKER OUTPUT Connectors for 4~16 ohms or 70V and 100V speaker 10. LINE INPUT (XLR) Music signal input balance 11.

  • Page 8: Rear Panel(24V)

    NOMENCLATURE AND FUCTIONS 4.3 T-6350-6500-6650 REAR PANEL+24V INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- OUTPUTS BATT SUPPLY COM 4-16 100V INPUTS LINK LIFT 8. AC POWER INPUT 9. SPARED (BATTERY) POWER INTERFACE. 10. COMMON SPEAKER OUTPUT Connectors for 4~16 ohms or 70V and 100V speaker 11.

  • Page 9: Connections

    5. CONNECTIONS 5.1 SPEAKER CONNECTIONS 100V 4~16 100V 4~16 100V 4~16 (T-6350) (T-6350) 28.6 (T-6500) (T-6500) (T-6650) (T-6650) 15.4 100V LINE 70V LINE 4-16 4~16 70V/ 5.2 XLR CONNECTIONS...

  • Page 10: Applications

    6. APPLICATIONS REAR PANEL CONNECTIONS...

  • Page 11: Block Diagram

    7. BLOCK DIAGRAM...

  • Page 12: Specifications

    8. SPECIFICATIONS MODEL T-6350 T-6500 T-6650 RATED POWER OUTPUT 350W 500W 650W SPEAKER OUTPUTS 4~16 ,70V/100V INPUT SENSITIVITY 775mV/0dB FREQUENCY RESPONSE 50Hz~18KHz S/N RATIO Better than 105dB T.H.D Less than 1% at 1KHz, 1/3 rated power Power switch, volume control...

  • Page 13: Dimensional Diagram

    9. DIMENSIONAL DIAGRAM UNIT:mm SIGNAL CLIP PROT TEMP POWER VOLUME INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- OUTPUTS COM 4-16 100V INPUTS LINK LIFT UNIT :mm SIGNAL CLIP PROT TEMP POWER VOLUME Over Over...
  • Page 14 DIMENSIONAL DIAGRAM UNIT:mm SIGNAL CLIP PROT TEMP POWER VOLUME INPUTS LINK XLR BAL 1-GND 2-HOT+ 3-COLD- OUTPUTS BATT SUPPLY COM 4-16 100V INPUTS LINK LIFT UNIT :mm SIGNAL CLIP PROT TEMP POWER VOLUME Over Over...
  • Page 15 PUBLIC ADDRESS SYSTEM PUBLIC ADDRESS SYSTEM VersionV0.4...
