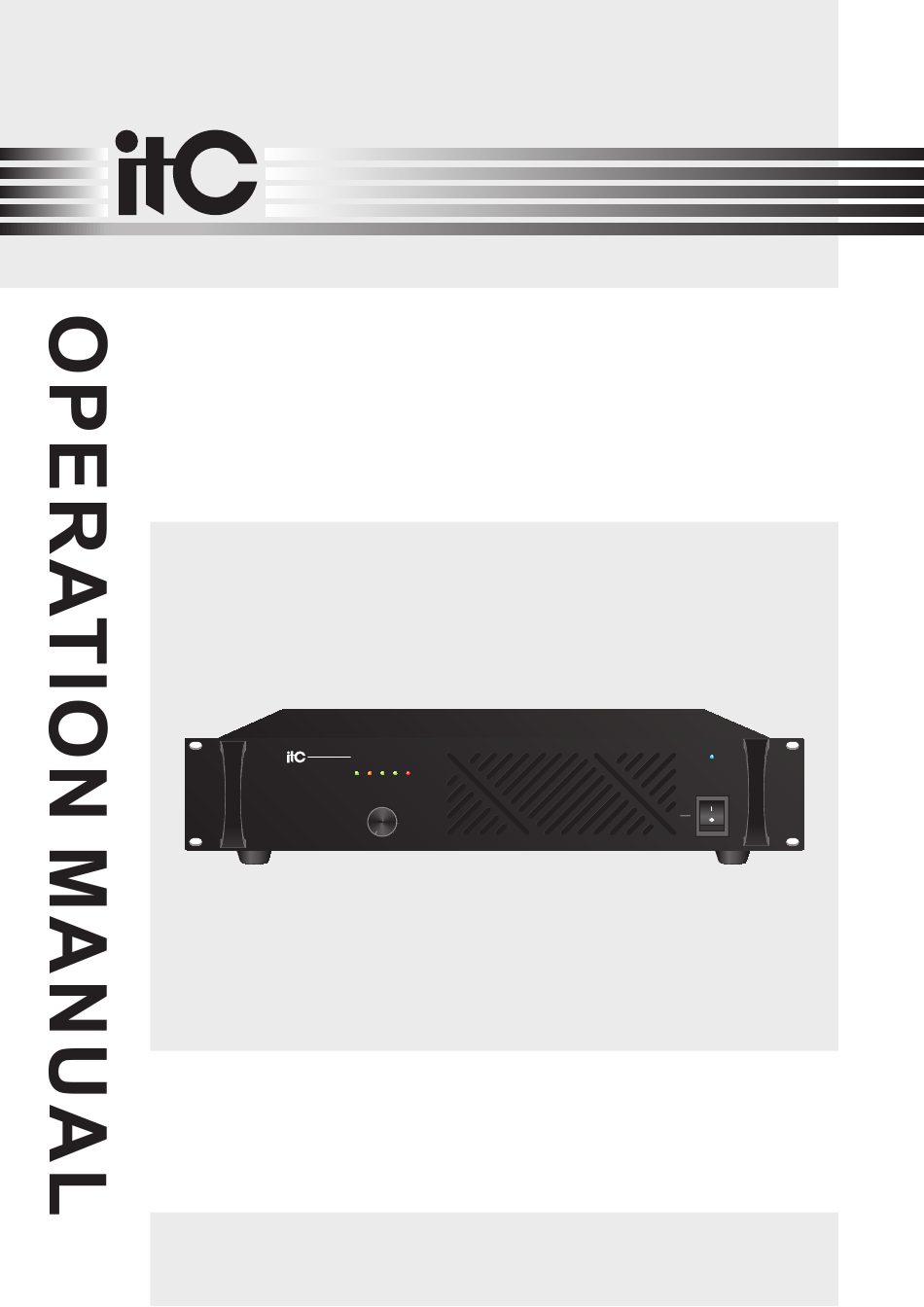

ITC T-61000D Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
T-61500D
POWER AMPLIFIER
SIG
CLIP
3
2
1
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
4Ω
100v
PROT
VOLUME
5
4
6
7
8
9
0
10
T-61000D
T-61500D
T-62000D
POWER AMPLIFIER
POWER
ON
OFF

Advertisement

loading
Need help?

Need help?

Do you have a question about the T-61000D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITC T-61000D

Summary of Contents for ITC T-61000D

  • Page 1 PUBLIC ADDRESS SYSTEM T-61000D T-61500D T-62000D POWER AMPLIFIER T-61500D POWER AMPLIFIER POWER CLIP 4Ω 100v PROT VOLUME Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. DESCRIPTIONS .....................5 3. FEATURES .......................5 4. FIONT AND REAR PANEL FUNCTIONS .............. 6 4.1 FRONT PANEL ......................4.2 REAR PANEL ......................5. OPERATION ILLUSTRATION ................8 6. TROUBLESHOOTING ....................10 7. APPLICATIONS .....................

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
  • Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...

  • Page 5: Descriptions

    2. DESCRIPTIONS Class-D broadcast power amplifier is a high-performance single-channel high-power power amplifier with switching power supply. The structure is compact and reasonable. The intelligent protection circuit adopts advanced class-D digital power amplifier and soft switching power supply to ensure the stability and reliability and protect amplifiers and speakers under extreme conditions.

  • Page 6: Fiont And Rear Panel Functions

    4. FIONT AND REAR PANEL FUNCTIONS 4.1 FRONT PANEL POWER CLIP 4Ω 100v PROT VOLUME 1. Volume Gain Size Adjustment Knob: Adjusts the sound output to the speaker. Turn right Turn the volume up, and turn it to the left to mute it. 2.

  • Page 7: Rear Panel

    4. FIONT AND REAR PANEL FUNCTIONS 4.2 REAR PANEL OUTPUT 4Ω/100V INPUTS LINK 100V LIFT 4-16Ω 10. AC power input. 11. Vents and fans. 12. 100V /4-16Ω speaker output mode switch. 13. Balanced XLR input port. 14. 6.3 Balanced input interface. 15.

  • Page 8: Operation Illustration

    5. OPERATION ILLUSTRATION 1.Connect the speakers: ①When the 100V and 4-16Ω selector switch to ②When the 100V and 4-16Ω selector switch to 100V position, as shown below: 4-16Ω position, as shown below: 100V 100V OUTPUT OUTPUT 4Ω/100V 4Ω/100V 4-16Ω 4-16Ω SPK+ SPK- SPK+...
  • Page 9 5. OPERATION ILLUSTRATION 4.Microphone using: 1. Turning the volume knob to the left, Plug the microphone into the microphone connector of the pre -amplifier, and then connect the OUTPUT connector of the pre-amplifier to the INPUT connector on the rear panel of the machine. 2.

  • Page 10: Troubleshooting

    6. TROUBLESHOOTING Failure phenomena Failure cause 1 . Power line is cut off 1. Power switch is not opened 2. The protection function of the equipment is not activated 1. The power switch is not opened or the power plug is bad contacted.

  • Page 11: Applications

    7. APPLICATIONS REAR PANEL CONNECTIONS...

  • Page 12: Block Diagram

    8. BLOCK DIAGRAM...

  • Page 13: Specifications

    9. SPECIFICATIONS Model T-61000D T-61500D T-62000D Rated power output 1000W 1500W 2000W Speaker output 4-16Ω/100V Input Sensitivity & 775mV/10KΩ, Unbalanced XLR/TRS Input Impedance Output Sensitivity & 775mV/470Ω, Balanced XLR output Impedance Frequency response 80Hz-16KHz(+1dB,-3dB) 0.5% at 1KHz, 1/3 output power >90dB...

  • Page 14: Public Address System

    PUBLIC ADDRESS SYSTEM Version 0.2...

This manual is also suitable for:

T-61500dT-62000d
