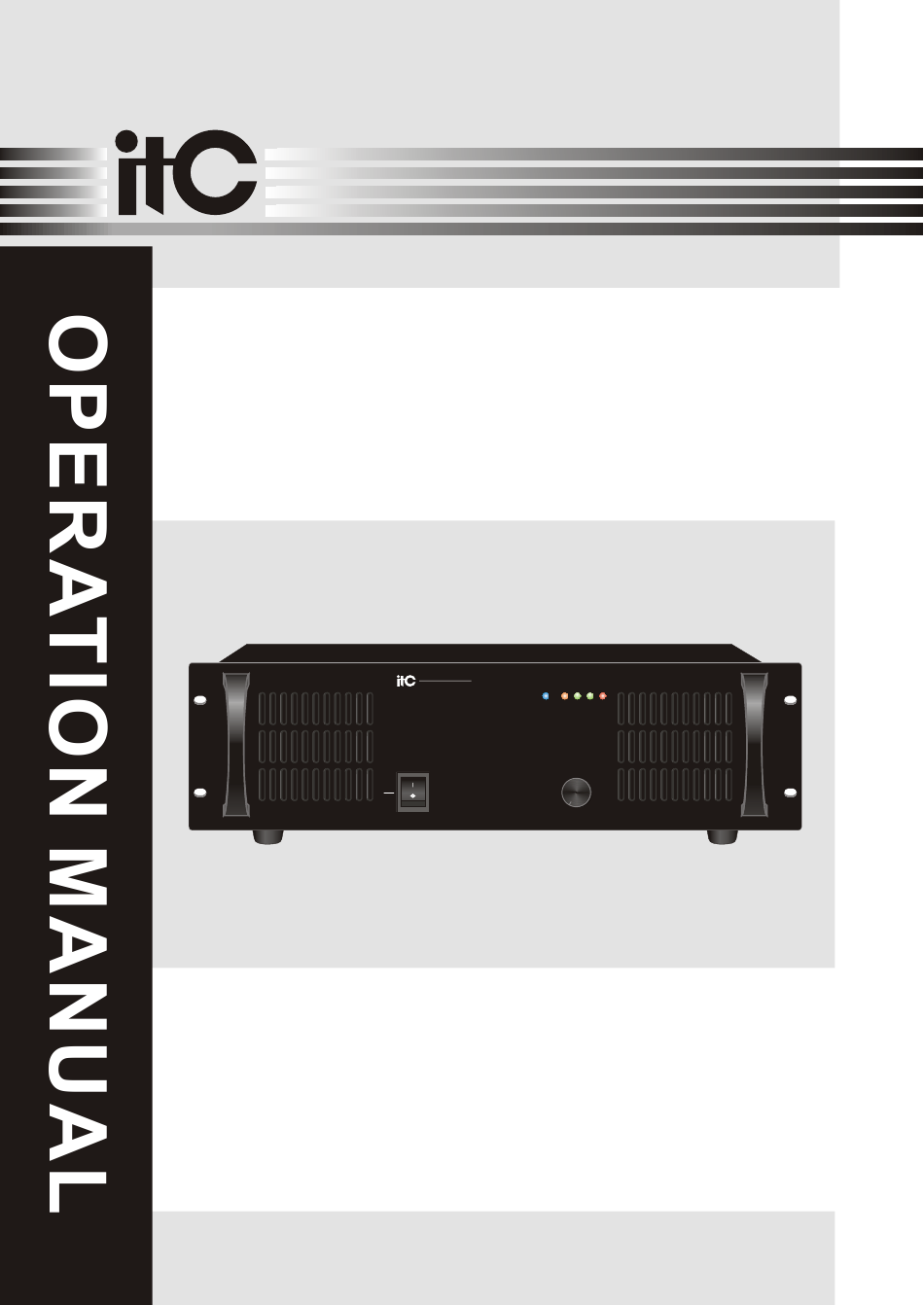

- Page 1 PUBLIC ADDRESS SYSTEM T-61000 T-61500 1000/1500-WATT AMPLIFIER T-61000 1000-WATT AMPLIFIER POWER CLIP FINE TEMP VOLUME Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES .......................5 4. NOMENCLATURE AND FUNCTIONS 4.1 Front Panel ......................6 4.2 Rear Panel ......................7 5. CONNECTIONS 5.1 Speaker Connections ....................8 5.2 XLR Connections .....................8 6. APPLICATIONS ...................... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property...
-
Page 5: General Description

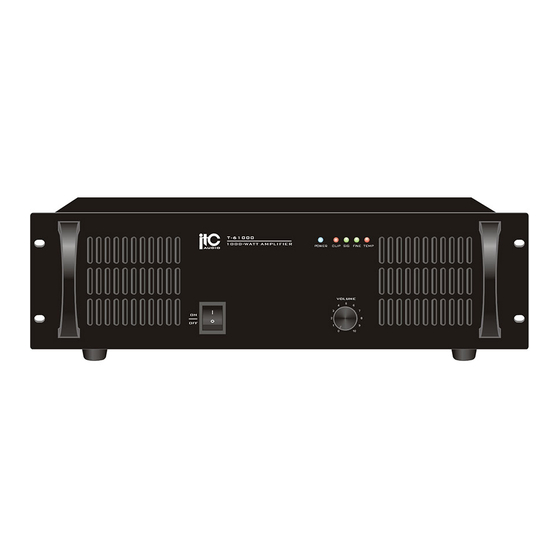

2. GENERAL DESCRIPTION Heavy-duty public address power amplifiers deliver clean audio power from 1000 to 1500 watts RMS with less than 0.5% distortion. Rugged and overbuilt to provide years of reliable service they are equipped with torroridal transformers, ext -ensive heat-sinking, forced fan cooling and protective circuits against short-circuit, clipping and over-temperature. 3. -
Page 6: Nomenclature And Functions
4. NOMENCLATURE AND FUNCTIONS 4.1 FRONT PANEL TEMP POWER CLIP FINE VOLUME 5. SIGNAL 1. POWER SWITCH Signal indicator LED On top of the opening Power When detected input signal. Press the end, power shut down 6. CLIP 2. VOLUME Clip lit when max wattage output &... -
Page 7: Rear Panel
NOMENCLATURE AND FUNCTIONS 4.2 REAR PANEL INPUTS LINK OUTPUT 100V 4~16 8. FAN 13.LINK LEVE OUTPUT (6.3mm) 9. AC POWER INPUT Select only one connection from 12 or 13 10.FUSE CASE 14.MONO AUDIO INPUT (6.3mm) 11.COMMON SPEAKER OUTPUT Select only one connection from 14 or 15 Connectors for 4~16 ohms or 70V and 100V 15.MONO AUDIO INPUT (XLR) speaker... -
Page 8: Connections
5. CONNECTIONS 5.1 SPEAKER CONNECTIONS 100V 4~16 100V 4~16 100V 4~16 (T-61000) (T-61000) (T-61500) (T-61500) 100V LINE 70V LINE 4-16 70V/ 4~16 5.2 XLR CONNECTIONS... -
Page 9: Applications
6. APPLICATIONS REAR PANEL CONNECTIONS... -
Page 10: Block Diagram
7. BLOCK DIAGRAM... -
Page 11: Specifications
8. SPECIFICATIONS MODEL T-61000 T-61500 RATED POWER OUTPUT 1000W 1500W SPEAKER OUTPUTS 4~16 ,70V/100V INPUT SENSITIVITY 1V/0dB EQUIVAIENT INPUT NOISE -95dB IMPEDANCE COEFFICIENT 200:1 COMMON-MODE REJECTION >95dB FREQUENCY RESPONSE 90Hz~20KHz+3dB S/N RATIO >15V/microsecond T.H.D <1% Air Cooling COOLING MODE Power, clipping , Signal , Protection and Overheat... -
Page 12: Dimensional Diagram
9. DIMENSIONAL DIAGRAM UNIT :mm POWER CLIP FINE TEMP VOLUME INPUTS LINK OUTPUT 100V 4~16 UNIT :mm POWER CLIP FINE TEMP VOLUME Over Over... - Page 13 PUBLIC ADDRESS SYSTEM VersionV0.2...
