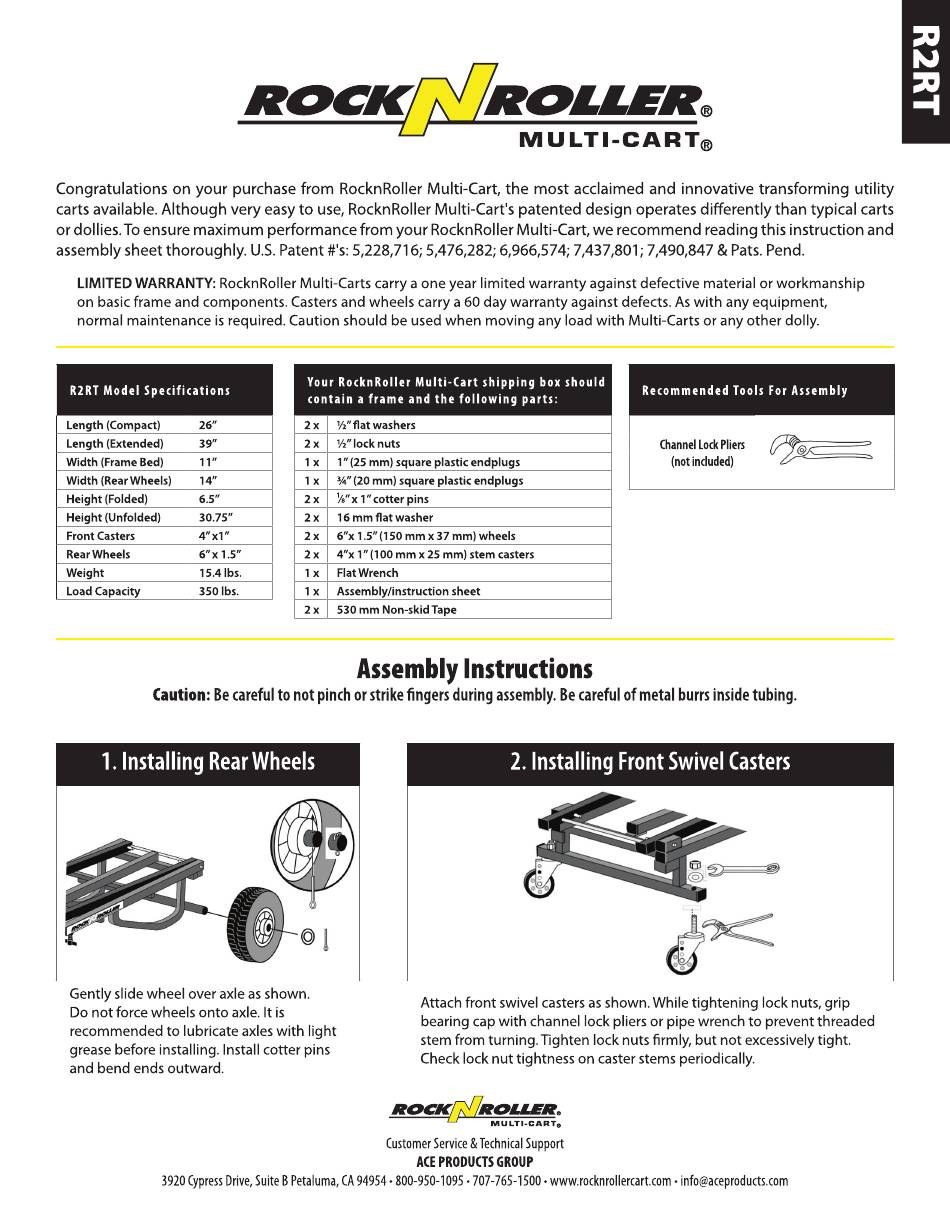

RockNRoller R2RT-RD Quick Start Manual

R 2 RT Mod e l S pe c if ic at i ons
Length (Compact) 26"
Length (Extended) 39"
Width (Frame Bed) 11"
Width (Rear Wheels) 14"
Height (Folded) 6.5"
Height (Unfolded) 30.75"
Front Casters 4" x1"
Rear Wheels 6" x 1.5"
Weight 15.4 lbs.
Load Capacity 350 lbs.

1. Installing Rear Wheels

Gently slide wheel over axle as shown.
Do not force wheels onto axle. It is
recommended to lubricate axles with light
grease before installing. Install cotter pins
and bend ends outward.
Yo ur Ro cknRo l ler Mu l ti- C ar t sh ip pin g b ox s hould
co nta i n a fra me an d the fol l ow in g pa r t s:
2 x ½" flat washers
2 x ½" lock nuts
1 x 1" (25 mm) square plastic endplugs
1 x ¾" (20 mm) square plastic endplugs
2 x 1⁄8" x 1" cotter pins
2 x 16 mm flat washer
2 x 6"x 1.5" (150 mm x 37 mm) wheels
2 x 4"x 1" (100 mm x 25 mm) stem casters
1 x Flat Wrench
1 x Assembly/instruction sheet
2 x 530 mm Non-skid Tape
Attach front swivel casters as shown. While tightening lock nuts, grip
bearing cap with channel lock pliers or pipe wrench to prevent threaded
stem from turning. Tighten lock nuts firmly, but not excessively tight.
Check lock nut tightness on caster stems periodically.
Recommen de d Tools For A s s e mbl y
Channel Lock Pliers
(not included)

2. Installing Front Swivel Casters
