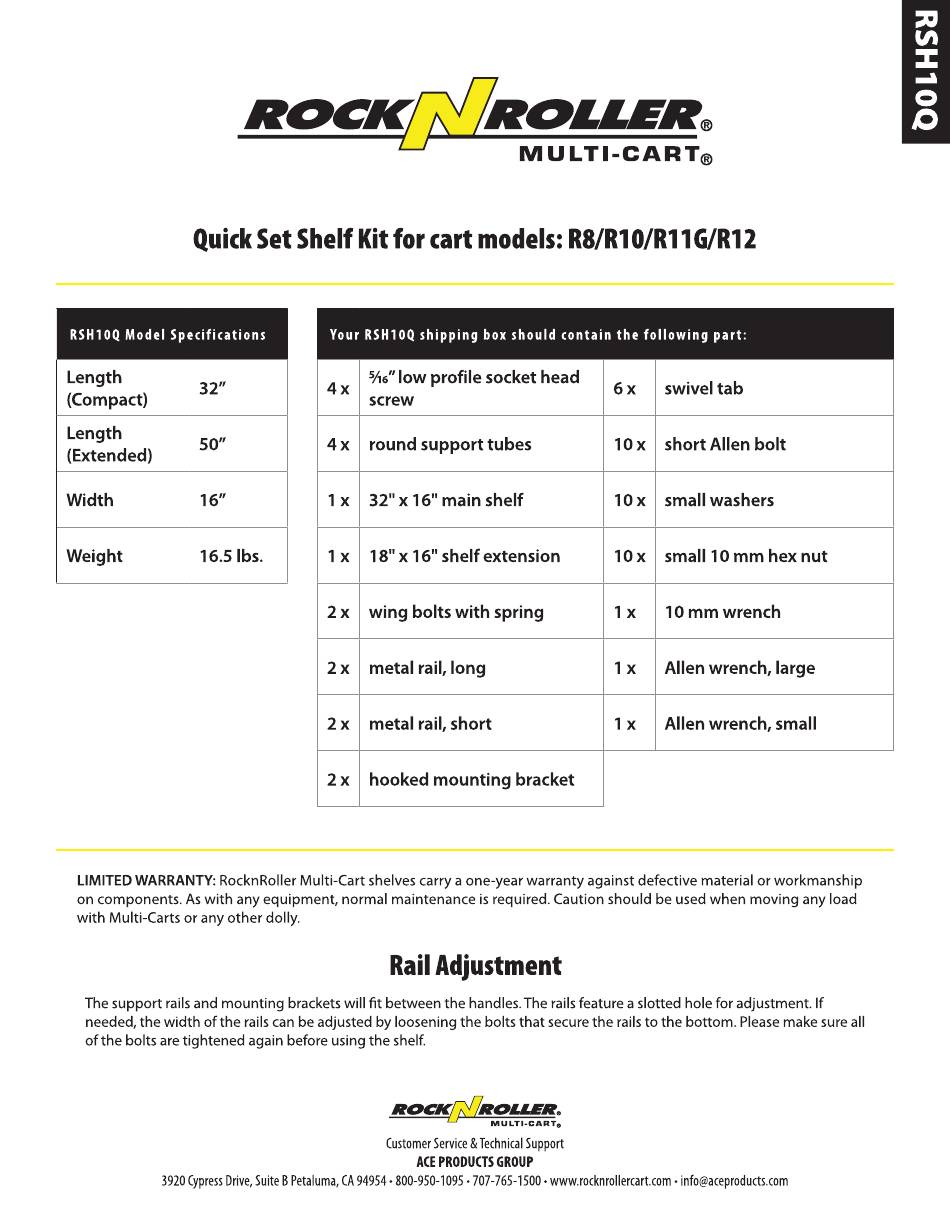

R SH10 Q Model S pecif ic at ion s
Length
32"
(Compact)
Length
50"
(Extended)
Width
16"
Weight
16.5 lbs.
Yo u r RSH 1 0Q s h i p p i ng b ox sh ou ld c o nt a i n t he fo l low i ng p a r t :
5/16" low profile socket head
4 x
screw
4 x round support tubes
1 x 32" x 16" main shelf
1 x 18" x 16" shelf extension
2 x wing bolts with spring
2 x metal rail, long
2 x metal rail, short
2 x hooked mounting bracket
6 x
swivel tab
10 x short Allen bolt
10 x small washers
10 x small 10 mm hex nut
1 x
10 mm wrench
1 x
Allen wrench, large
1 x
Allen wrench, small
Advertisement
Table of Contents
Related Manuals for RockNRoller Multi-Cart RSH10Q
Summary of Contents for RockNRoller Multi-Cart RSH10Q
- Page 1 R SH10 Q Model S pecif ic at ion s Yo u r RSH 1 0Q s h i p p i ng b ox sh ou ld c o nt a i n t he fo l low i ng p a r t : Length 5/16”...
- Page 2 1. Install support tubes 2. Install long rails With the RocknRoller Multi-Cart extended and both handles raised, Install the 2 long metal rails to the 32" x 16" main shelf. Position the install the round support tubes. Insert the 5/16” low profile socket rails on the board so the hooked end sits just past the same edge.
